KI Pirouette Tables Assembly Instructions

Assembly Instructions

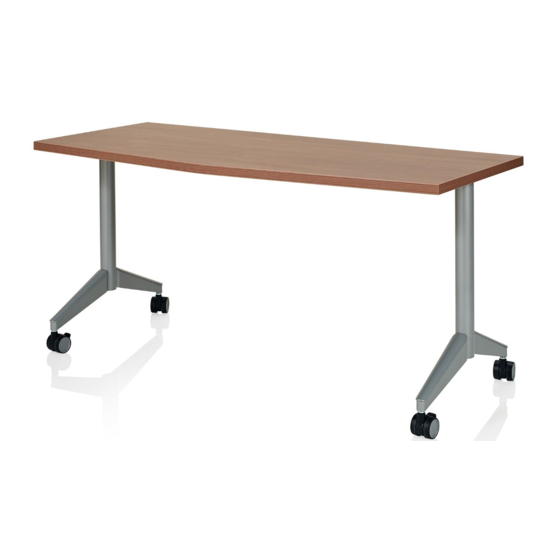

Pirouette
™
Fixed Base
April 2014
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Tables
Fixed Legs & Worksurface
Support to Top Installation

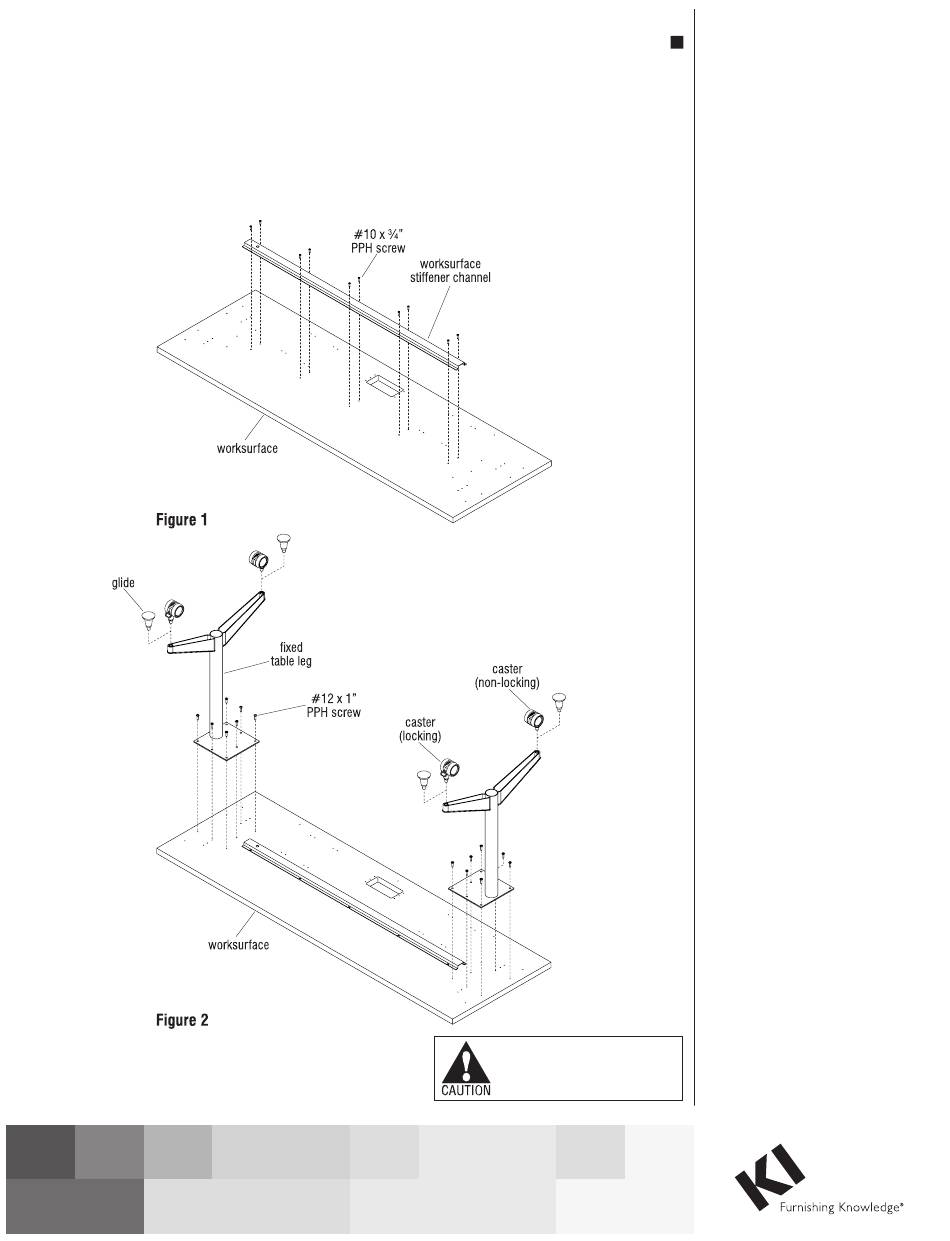

1. Carefully remove contents from
shipping cartons and identify parts
and hardware supplied.
2. Place table top upside down on a
soft, protective surface. Position
the stiffener channel onto the center
of the tabletop underside, aligning
the stiffener mounting holes with
the pre-drilled holes in the table.
Secure stiffener to top using
#10 x / " screws through all
3
4
stiffener mounting holes provided
(Figure 1).
3. Position each fixed table leg over
pre-drilled mounting holes in the
underside of the table as illustrated.
Secure the table legs to the top
using seven #12 x 1" screws
through each base (Figure 2).
4. Locking and non-locking casters
are provided. Locking casters are to
be installed to the front, user-side
of each leg and non-locking casters
should be installed to the rear of
each leg. Use a 19mm open end
wrench to tighten casters to the foot
of each leg (Figure 2).
