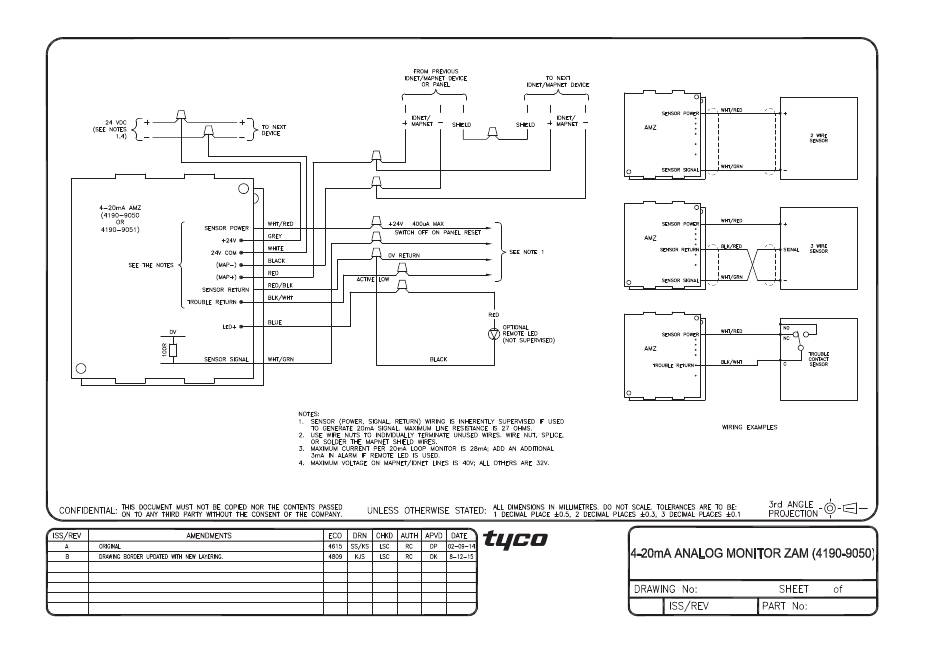

302: IDNet 4-20mA Analog Monitor AMZ (4190-9050)

LT0432 Issue 2.4
Fire Protection Products
TYCO FIRE PROTECTION PRODUCTS
17 MARY MULLER DRIVE
P.O. BOX 19545
A3
CHRISTCHURCH,
PH:
+64 3 3895096
NEW ZEALAND.
FAX:
+64 3 3895938
4100ES
WIRING DIAGRAM
1976-181
