203: Idnet Module (4100-3101) - Simplex 4100ESi Wiring Diagrams

Hide thumbs Also See for 4100ESi:
Table of Contents

Advertisement

203: IDNet Module (4100-3101)

LT0432 Issue 2.4
Fire Protection Products
TYCO FIRE PROTECTION PRODUCTS
17 MARY MULLER DRIVE
P.O. BOX 19545
A3
CHRISTCHURCH,
PH:
+64 3 3895096
NEW ZEALAND.
FAX:
+64 3 3895938
4100ES

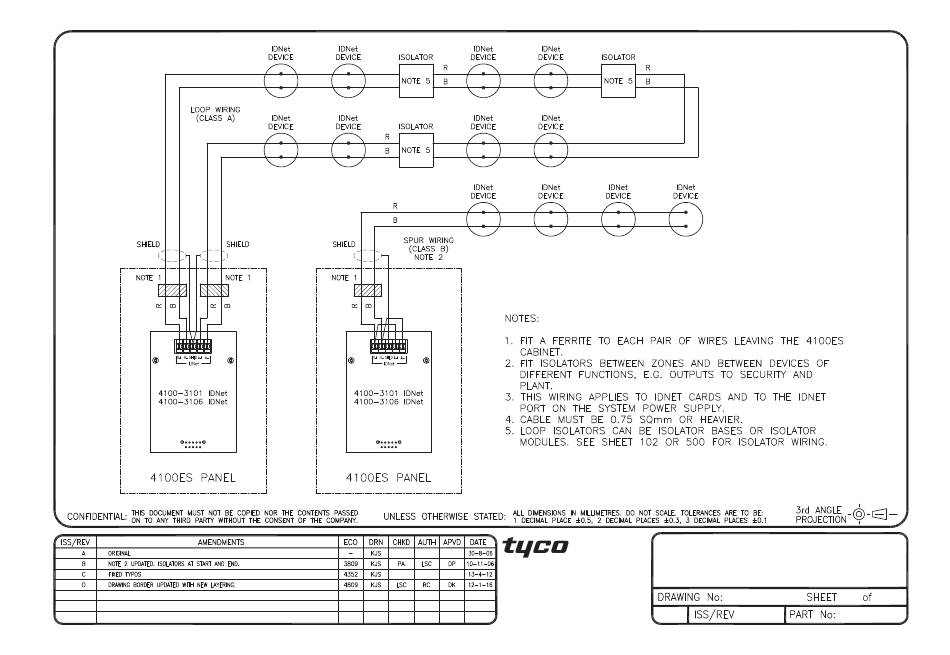

IDNET LOOP CARD WIRING
WIRING DIAGRAM
1976-181
203
D
