PANEL DESCRIPTION

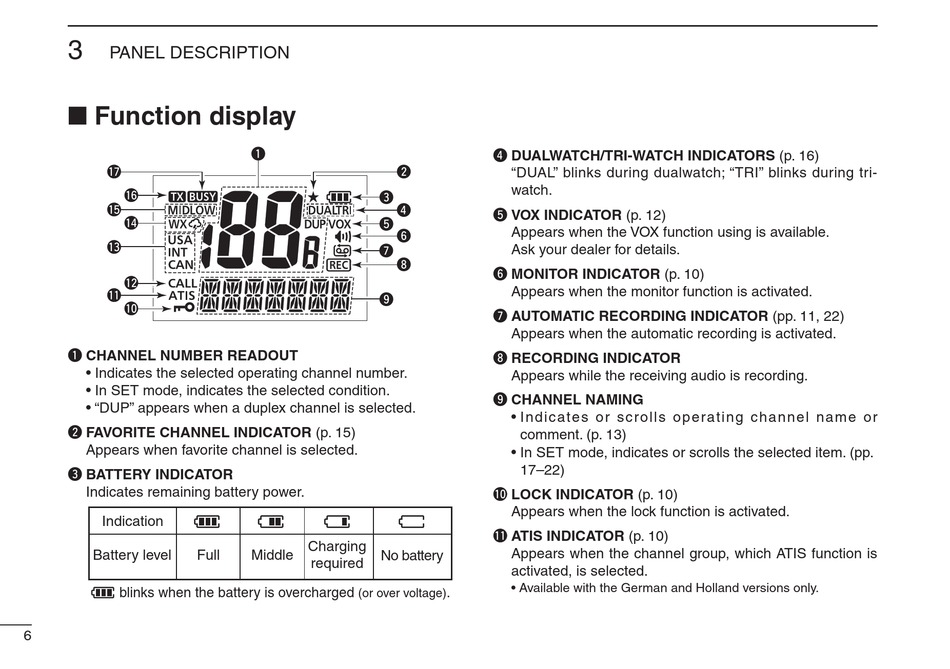

■ Function display

!7
!6
!5
!4
!3
!2
!1
!0
q CHANNEL NUMBER READOUT
• Indicates the selected operating channel number.
• In SET mode, indicates the selected condition.
• "DUP" appears when a duplex channel is selected.
w FAVORITE CHANNEL INDICATOR (p. 15)
Appears when favorite channel is selected.
e BATTERY INDICATOR
Indicates remaining battery power.
Indication
Battery level Full
blinks when the battery is overcharged
6
q
w
e
r
t
y
u
i
o
Charging
Middle No battery
required
(or over voltage)
r DUALWATCH/TRI-WATCH INDICATORS (p. 16)
"DUAL" blinks during dualwatch; "TRI" blinks during tri-
watch.
t VOX INDICATOR (p. 12)
Appears when the VOX function using is available.
Ask your dealer for details.
y MONITOR INDICATOR (p. 10)
Appears when the monitor function is activated.
u AUTOMATIC RECORDING INDICATOR (pp. 11, 22)
Appears when the automatic recording is activated.
i RECORDING INDICATOR
Appears while the receiving audio is recording.
o CHANNEL NAMING
• Indicates or scrolls operating channel name or
comment. (p. 13)
• In SET mode, indicates or scrolls the selected item. (pp.
17–22)
!0 LOCK INDICATOR (p. 10)
Appears when the lock function is activated.
!1 ATIS INDICATOR (p. 10)
Appears when the channel group, which ATIS function is
activated, is selected.
• Available with the German and Holland versions only.
.
