Page 1 Please enter the identity code of your device here! Please completely read through operating instructions! Do not discard! • The warranty shall be invalidated by damage caused by operating errors! Part No. 987855 ProMinent Dosiertechnik GmbH · 69123 Heidelberg · Germany BA DM 135 08/06 GB...
Page 2: Device Identification / Identity Code
Device Identification / Identity Code ® D2C A DULCOMETER controller Series D2C Wall mounting Panel mounting (96 x 96 mm) Operating voltage 230 V 50/60 Hz 115 V 50/60 Hz 24 V AC/DC Measured variable 1/Measured variable 2 pH (0-14 pH) / Chlorine (0...0,5/2/5/10/20/50/100 ppm) Connection of meas.
Page 3: Table Of Contents
• In the event of a probe failure, uncontrolled chemicals addition may result. We therfore recommend urgently to activate “check out time limits” with automatic control shut-off! NOTE A form “Documentation of controller settings Type D2C” is available under www.prominent.com/documentation_D2C for the purpose of documenting the controller settings.

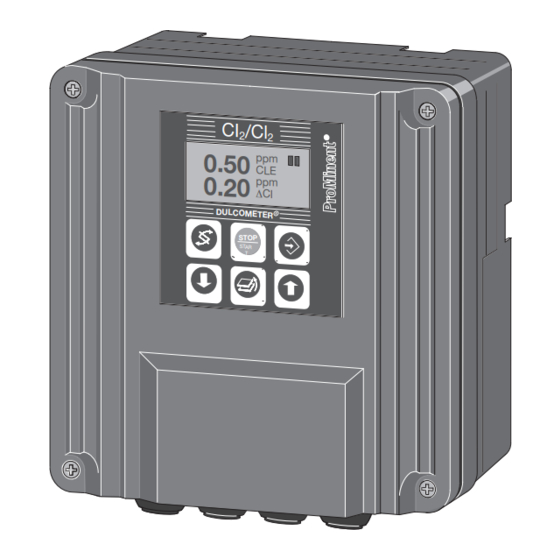

Page 4: Device Overview / Controls
Device Overview / Controls Display field Measured variable pH/chlorine Graphic display pH/Cl "Start/Stop" "Change" button button "Enter" button "Branch back" button ® DULCOMETER "Up" "Down" STOP button button START D2C2-002-pH/chlorine-GB CHANGE button UP button To change over within a menu level To increase a displayed numerical value and to change from one variable to and to change variables (flashing...
Page 5: Functional Description
Functional Description NOTE Please refer to the description of the operating menu for a detailed description of the ® individual characteristics of the DULCOMETER D2C controller! Operating Menu ® The DULCOMETER D2C controller permits settings to be made in two different menus. All values are preset and can be changed in the complete operating menu.
Page 6: Display Symbols
Display Symbols ® The display of the DULCOMETER D2C controller uses the following symbols: Symbol Description Comment Limit value transgression measured value 1 Symbol Relay 1 upper or zone left Symbol Relay 1 lower left Limit value transgression measured value 2 Symbol Relay 2 upper or zone right...
Page 7 Operation The various menus are Permanent Permanent selected with the CHANGE display 2 display 1 button The menu is started with the ENTER button Permanent Permanent display 3 display 4 BRANCH BACK to permanent display or to relevant setting menu Calibration Calibration notes menu...
Page 8: Operating
Operating Menu / Overview The setting menus highlighted in grey and the adjustable parameters are only visible in the complete operating menu. value 1 7.20 pH 7.20 value 2 0.45 ppm temp.: 23.5 °C 0.45 stop-key value 1 7.00 pH value 2 0.45 ppm s.
Page 9 Operating Menu / Overview limit 2 lower 0.60 ppm limit 1 upper 0.10 ppm limit value 2 chlorine only with relay limit 2 lower limit relay: hysteresis limit: 0.60 ppm - active closed 0.04 ppm limit 1 upper ∆t on checkout time limit: 0.10 ppm ∆t off...
Page 10 Operating Menu / Overview correction value correction value setting? temperature automatic 23.5 °C measuring range measuring range chlorine setting? 0 ... 2.00 ppm mA output 1 measured value 4 mA = 2.00 pH 20 mA = 12.00 pH mA outputs mA output 1 mA output 1 mA output 1...
Page 11: Operating Menu / Description
Operating Menu / Description Permanent displays value 1 7.20 pH 7.20 value 2 0.45 ppm 0.45 stop-key value 1 7.00 pH value 2 0.45 ppm s. point 7.20 pH s. point 0.45 ppm ctrlout ctrlout The permanent displays 1 to 4 serve information on fault messages/causes (see also table on page 22) as well as on operating values/settings.
Page 12 Operating Menu / Description Possible values Initial value Increment Lower value Upper value Remarks Buffer values pH 7 0.01 pH -2 pH 16 pH Error messages when both buffers pH 4 too close (<2 pH-values) Error message Condition Effect During calibration procedure: Buffer distance too small ∆Buffer <2 pH Recalibrate buffer 2!
Page 13 Operating Menu / Description calibration Cl calibration Cl DPD-value DPD-value: 0.45 ppm 0.45 ppm calibration Cl calibration Cl only with measuring zero p.: 4.00 mA zero p.: 4.00 mA slope: slope: range 0,5 ppm 6.00 mA/ppm 6 mA/ppm calibration Cl calibration Cl zero point: zero point...
Page 14 Operating Menu / Description To carry out this function, see priming menu. Priming: priming acid priming chlor press -key press -key pump on pump on control stop ! control stop ! To prime with pH corrective agent or oxidant, press the change key to access the Prime (acid/alkali) or Prime oxidant settings menu.
Page 15 Operating Menu / Description Possible values Initial value Increment Lower value Upper value Remarks Type of limit transgression Limit transgression Measured value 1 pH upper upper when exceeding or lower dropping below value Measured value 2 chlorine lower upper lower Limit value Measured value 1 pH pH 8...
Page 16 Operating Menu / Description Control setpoint 7.20 pH dosing direction: acid control setting? control control value 1 pH automatic dosing direction acid manual dosing dosing direction: acid ctrl parameter additional load: = 10 % dosing direction: acid setpoint 0.40 ppm dosing direction: chlorine control...
Page 17 Operating Menu / Description Pumps The maximum stroke value of the metering pumps should correspond to the stroke frequency of the metering pump used. pumps pumps dosing pump max. setting? dosing direction pump 1: pump 1 acid pump 2: pump 2 chlorine pulse/minute Possible values Initial value...
Page 18 Operating Menu / Description Possible values Initial value Increment Lower value Upper value Remarks Relay 1 Measured value 1 pH Relay adjustment limit Limit Actuator* *e.g. motor pump Solenoid valve Relay is deactivated in case of fault and during Relay 2 calibration Measured value 2 chlorine Relay adjustment...
Page 19 Operating Menu / Description Measuring chlorine The measuring range (factory setting 0-2.00 ppm) must correspond to the chlorine measuring cell used. The factory setting (limits, setpoint...) is reset if the measuring range is altered. measuring range measuring range chlorine setting? 0 ...
Page 20 Operating Menu / Description Possible values Initial value Increment Lower value Upper value Remarks Variable allocation Measured value Measured value Regulated value Correcting value Output range 4…20 mA 0…20 mA 4…20 mA Range measured value 1 pH pH 2…pH 12 pH 0.01 pH -2 pH 16...
Page 21 Operating Menu / Description general setting Ident-Code: D2CA alarm relay pause information W 0 PC 1000 A 10 E active - active closed software version - alarm off D2C-A1 FW.2.10 - td: 10 min. control input - active closed - sample flow control input - active closed - Cl const.
Page 22: Technical Terms
Technical Terms Calibration: By calibrating (adjusting), the measuring value readout will be adjusted to the actual probe signal. Without calibration, a correct measurement is not possible. A calibration should be performed regularly (depending on application). Solenoid valve: Activation of solenoid valves (motor-driven pumps) is defined by the cycle time and the minimum on-state interval (minimum time) (pulse length control).
Page 23: 10 Troubleshooting
10 Troubleshooting...
Page 24 D2C, Part 2, pH/Chlorine Subject to modifications · Printed in Germany Addresses and delivery information may be obtained from the manufacturer: ProMinent Dosiertechnik GmbH · Im Schuhmachergewann 5-11 · 69123 Heidelberg Telephone: +49 6221 842-0 · Telefax: +49 6221 842-419 info@prominent.com · www.prominent.com...
