Installation Procedure

Step 6 - Installing base stations and registration point

Once you're confident that the bases are well sited, you should start your installation.
Use the cardboard templates provided in the base & the registration point boxes to mark the wall with
the correct fixing position.
Place the base station(s) at least 3m (9 ft) from finished floor level FFL (figure 2). The higher the better,
but NEVER above ceiling tiles.
A 24hr continuous power socket should be provided close to the position of the first base.
A single power supply will be enough for two bases plus the registration point over a maximum of
200 metres Cat5 cable length. If your installation requires more than two bases (plus the registration
point), a second 24hr continuous power supply should be provided in the line (see figure 3)
Note: power supplies can be located anywhere in the chain (i.e. any base can take the power feed).
Power supply
max 100m
RJ45 Out
Primary
Primary
base station
base station
page 6
Out socket
max 200m
max 100m
RJ45 In RJ45 Out RJ45 In
Secondary
Secondary
base station
base station

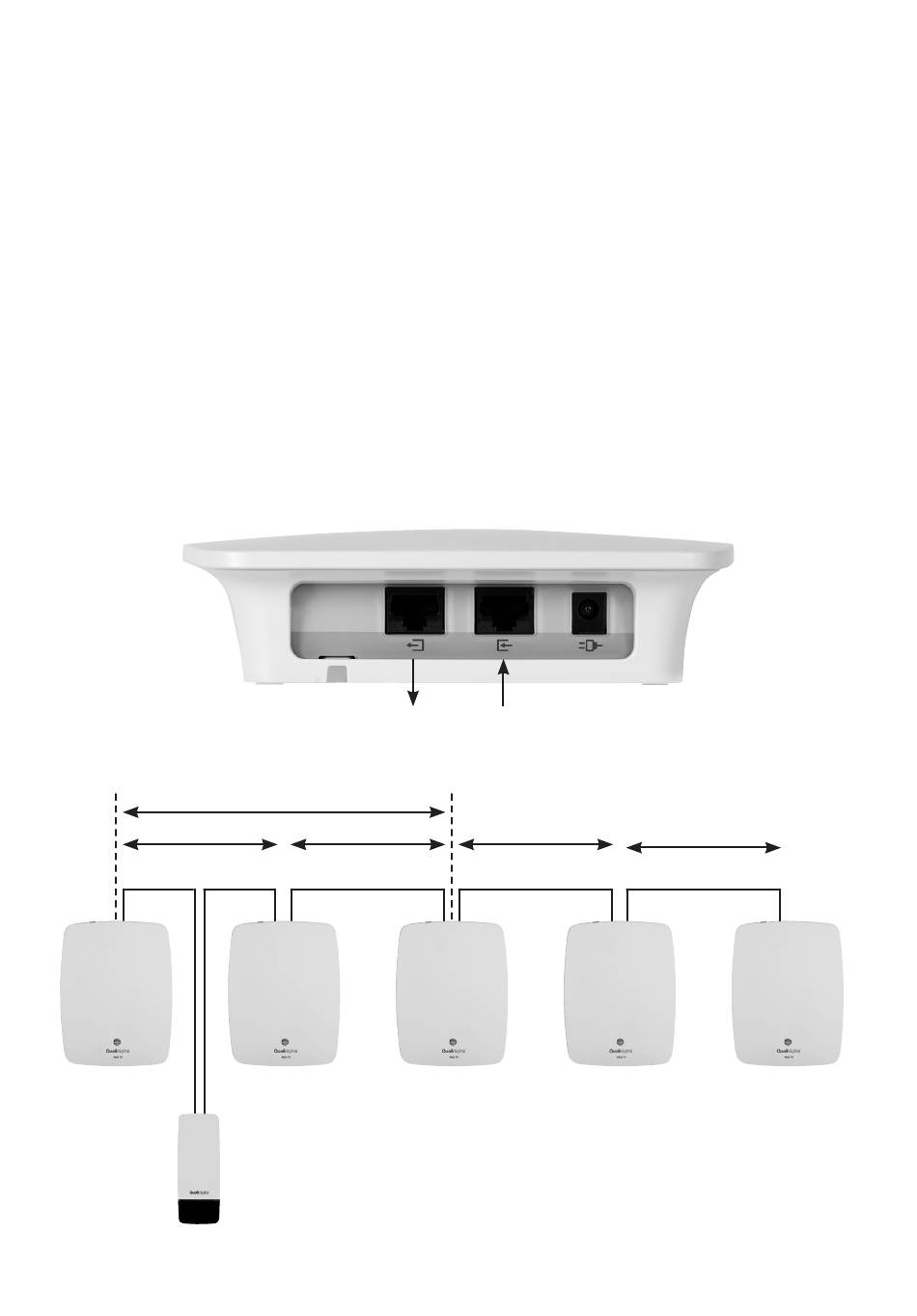

figure 3 - Multi base station and registration point connections
Registration
point
In socket
Power supply
max 100m
RJ45 Out RJ45 In
Secondary
Secondary
base station
base station
max 100m
RJ45 Out RJ45 In
Secondary Secondary
Secondary
base station base station
base station base station
Secondary
