Installation procedure

Step 1 The 8-port charger, power supply and metal hanger
are in the box (Q-P9CH). Wall mount the charger in the
manager's office or other secure place close to a power
socket. There are 2 key slots on the rear for mounting it and 1
screw hole under the cap in the 3rd battery slot from the left
on the bottom battery row to secure the charger to the wall.
Plug in the power supply lead to the charger feeding the
cable through the securing gates. Attach the hanging bar as
shown before mounting to the wall.
Step 2 Plug the power supply to a mains socket. The
power LED bottom right will illuminate red. Insert a battery
into each slot. The individual LEDs will be solid red when
charging and turn solid green when fully charged. On
occasion new batteries may get warm during charging, if
this happens the LED will go out and charging will stop to
protect the battery until it cools down, this is normal.
Step 3 Remove the microphone (Q-P9MIC) and speaker (Q-P9SPK) from their boxes. The microphone
is positioned against the top grill of the speaker post. Use the silver pre-drilled mounting bracket to
fix securely where you can. There should be no gap between the face of the microphone and the grill,
and the grill should have as many holes as illustrated in the diagram shown. If it doesn't, consider
drilling more holes to maximise the effectiveness of microphone.

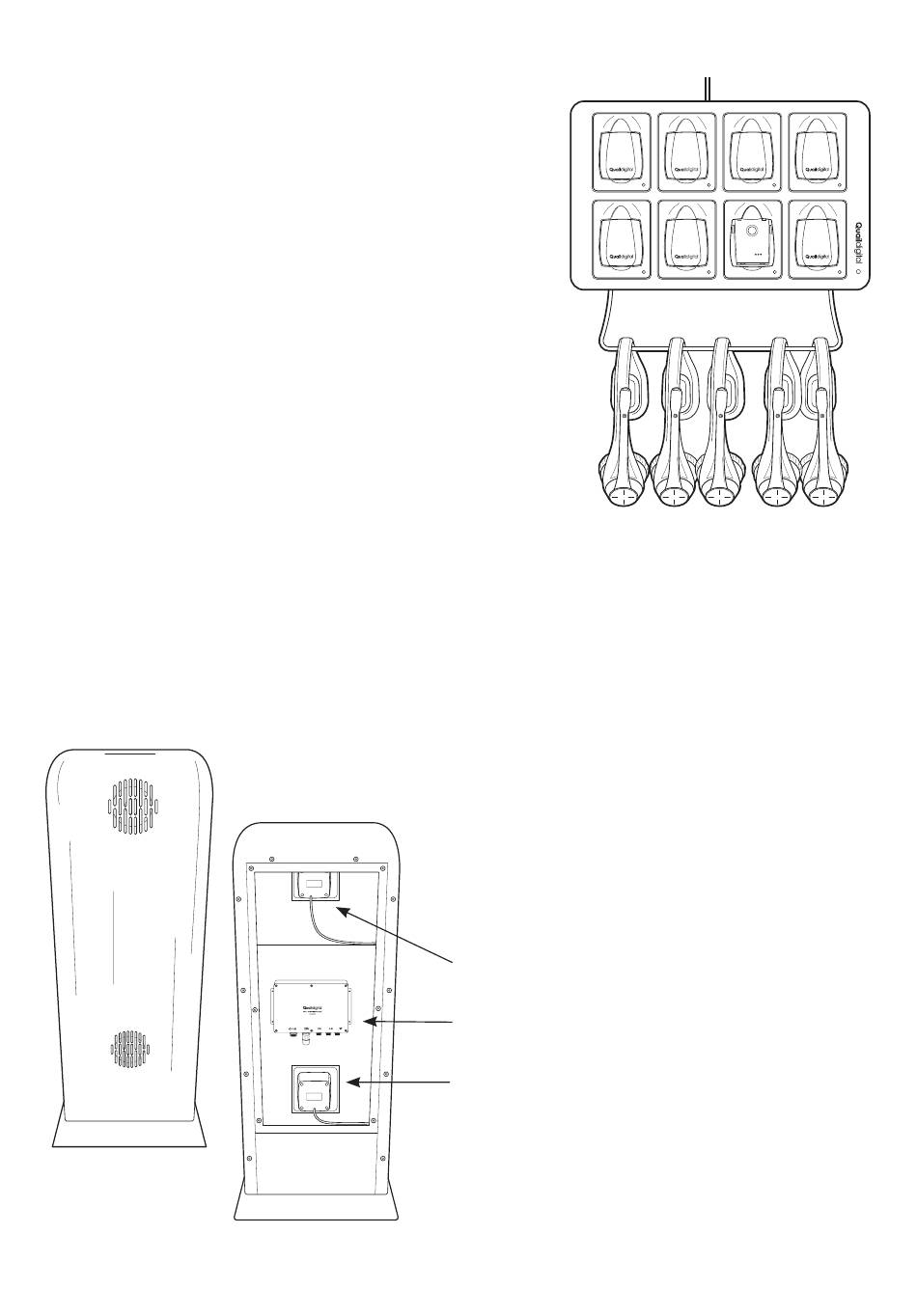

Figure 2 - Speaker post assembly
page 4
Figure 1 - Pro9 charger
Step 4 Place the acoustic foam provided around
the microphone to give extra acoustic protection.
Step 5 Use the same procedure as in Step 3 above
to mount the speaker against the lower grill; it does
not require foam around.
Microphone
Drive-Thru Module
Speaker
