Leviton Verifeye 8000 Series User Manual

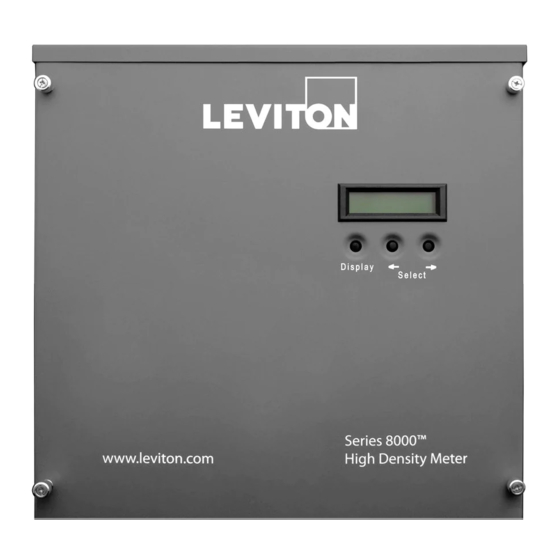

High density meter
Hide thumbs Also See for Verifeye 8000 Series:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
VerifEye™
Series 8000 Meter
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Verifeye 8000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leviton Verifeye 8000 Series

Summary of Contents for Leviton Verifeye 8000 Series

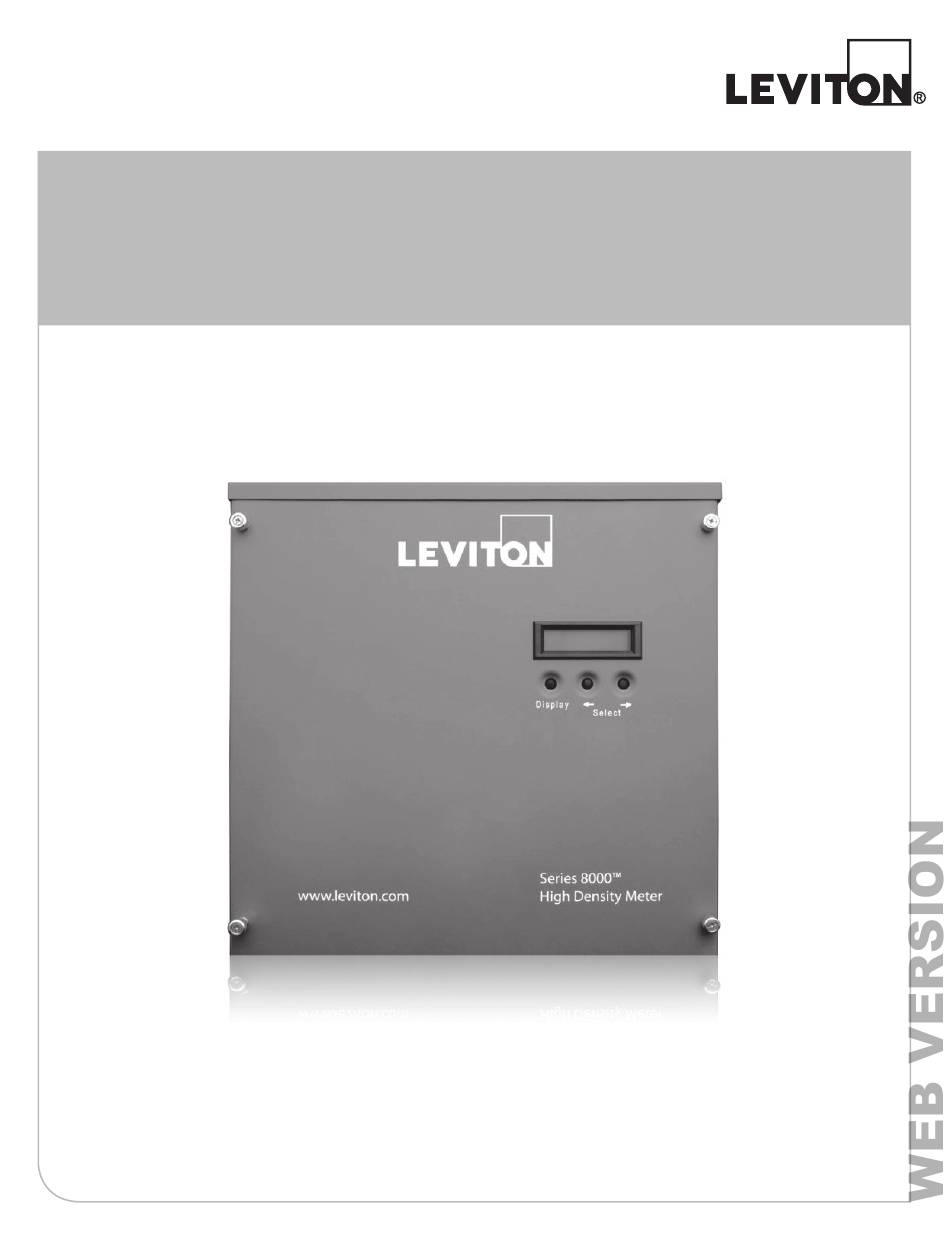

  • Page 1 VerifEye™ Series 8000 Meter User Guide...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Warnings and Cautions 1. Introduction Section 1.1 Meter Features System Description Section 1.2 Series 8000 System Specifications Table 1: Series 8000 Meter System Specifications Front Panel Display Figure 1: Series 8000 Front Panel Figure 2: Series 8000 Internal View Figure 3: Product Dimensions Figure 4: Product Wiring Diagram 2.

  • Page 4: Warnings And Cautions

    (not shown in the wiring diagrams). Failure to follow these instructions will result in death or serious injury. IMPORTANT NOTES • Please refer to the product manual or call/E-mail the Leviton Meter Support Team for further ®...

  • Page 5: Introduction

    INTRODUCTION 1. INTRODUCTION This document describes the Series 8000; including procedures to install and start up the unit, and complete the initial configuration: • "System Description" • "Pre-Installation" • "Installation Procedures" • "Start-Up Sequence" • "Fuse Replacement" This documentation is intended for those responsible for installing and configuring the Series 8000 meters.
  • Page 6 INTRODUCTION Table 1: Series 8000 Meter System Specifications Specification Series 8000 Series 8000 Model: S8UTS/277TS Model: S8UWH/277WH Height: 13.125 in. (33.5 cm) Height: 13.125 in. (33.5 cm) Dimensions Width: 12 in. (30.5 cm) Width: 12 in. (30.5 cm) Depth: 2.125 in. (5.5 cm) Depth: 2.125 in.

  • Page 7: Front Panel Display

    INTRODUCTION Front Panel Display The Series 8000 meters have the following front panel features (Figure 1): • LCD - displays 2 rows of 16 characters for each of the meter points (8, 12, or 24) • Display button - cycles through the available information for each of the meter points •...
  • Page 8 INTRODUCTION Figure 2 shows the internal view of the Series 8000 Figure 2: Series 8000 Internal View (Meter Only) Sense Voltage Control Voltage Control Voltage Earth Stud Terminal Block Terminal Block Fuse Jumper Cover Screw Location Ingress Punch-outs Modbus RTU Port Cover Screw Location Display...
  • Page 9 INTRODUCTION Figure 3 shows the dimensions of the Potential Transformer, Series 8000 Meter and CT Termination enclosure. Figure 3: Product Dimensions 13.53” (343.7mm) 12.58” (319.5mm) 8.39” (213.1mm) 480V DELTA ENCLOSURE 3.50” (88.9mm) MIN 13.19” (335.0mm) S8000 2.25” (57.2mm) SHORTING 6.50” TERMINATION (165.1mm) ENCLOSURE...
  • Page 10 INTRODUCTION Figure 4 shows the a functional diagram of how all possible components fit together for a 3 Phase 3 wire installation. Figure 4: Product Wiring Diagram PT Enclosure (OPTIONAL)* Series 8000 CT Termination Enclosure...

  • Page 11: Safety Precautions

    SAFETY PRECAUTIONS Carefully observe these safety instructions. DANGER HAZARD OF ELECTRICAL SHOCK, EXPLOSION, OR ARC FLASH • Apply appropriate personal protective equipment (PPF) and follow safe electrical work practices. See NFPA 70E. • Only qualified electrical workers should install this equipment. Such work should be performed only after reading this entire set of instructions.

  • Page 12: Installation

    INSTALLATION 3. INSTALLATION This section contains the following installation topics: • "Pre-Installation" • "Installation Procedures" • "Start-Up Sequence" 3.1 Pre-Installation The pre-installation checklist and site planning must be performed before installing the equipment at the site. 3.1.1 Pre-Installation Checklist The installer must provide the following information, tools, and equipment before proceeding with the installation: - Certified current transformers for metering - An appropriate 15-Amp maximum circuit breaker or a fused disconnect...

  • Page 13: Site Planning

    INSTALLATION 3.1.2 Site Planning 1. Determine the number of S8000 meters to be installed and ensure adequate space. 2. Determine the number of Modbus RTU or Ethernet drops required, and ensure they are installed before installing the S8000 meters. 3. Determine the number and types of meters or monitors required (Single-Phase, network, or Three-Phase).
  • Page 14 INSTALLATION In Figure 5, the meter is powered and takes its sense voltage directly from a breaker within the panel. Figure 5: 120V Mounting Layout, Dimensions and Clearances 11.0 in 6.0 in 27.9 cm 15.2 cm 10.67 in 27.1 cm 4.0 in 10.2 cm Legend:...

  • Page 15: Installing Potential Transformers For 3Ph Service Greater Than 277V

    NOTE: Potential transformer burden depends on the control voltage source. If control voltage is provided separately (not derived from the metered voltage), then lower transformer burden may be acceptable. Contact your local Leviton representative for details. Potential transformers must be mounted in a listed electrical enclosure as shown in Figure 6.
  • Page 16 INSTALLATION Mount the potential transformer enclosure between the supply voltage and the Series 8000 meters as shown in Figure 7. Transformer configuration must be Y||Y (Wye/Wye). In Figure 7, the meter is powered from the potential transformers that are fed from a breaker within the 347V/600V panel.

  • Page 17: Installing The Sense Voltage And Control Voltage Cables In Wye And Delta Services

    INSTALLATION 3.1.6 Installing the Sense Voltage and Control Voltage Cables in Wye and Delta Services The sense voltage (A, B, C, N) provides phase voltages for metering. The configuration depends on the type of service being metered: - See "For a Single-Phase panel with the 120V variant of the meter." - See "For a 120/208V Three-Phase Wye panel with the 120V variant of the meter."...
  • Page 18 INSTALLATION Carefully observe these safety instructions. DANGER HAZARD OF ELECTRICAL SHOCK, EXPLOSION, OR ARC FLASH • Apply appropriate personal protective equipment (PPF) and follow safe electrical work practices. See NFPA 70E. • This equipment must only be installed and serviced by an electrician. •...
  • Page 19 INSTALLATION For a Single-Phase Panel with the 120V variant of the meter: - Connect meter Terminal A to the voltage disconnect Phase A (red wire) - Connect meter Terminal B to the voltage disconnect Phase B (black wire) - Connect meter neutral terminal to neutral bar in the voltage disconnect panel (white wire) - Connect earth wire to earth post using lug provided - Meter Terminal C is not connected - Install power supply shorting jumpers (see Figure 8)
  • Page 20 INSTALLATION For a 120/208V Three-Phase Wye panel with the 120V variant of the meter: - Connect meter Terminal A to the voltage disconnect Phase A (red wire) - Connect meter Terminal B to the voltage disconnect Phase B (black wire) - Connect meter Terminal C to the voltage disconnect Phase C (blue wire) - Connect meter neutral terminal to neutral bar in the voltage disconnect panel (white wire) - Connect earth wire to earth post using lug provided...
  • Page 21 INSTALLATION Figure 10: For a 120/208V Three-Phase Wye Panel Version with no Shorting Blocks 6.0 in 11.0 in 15.2 cm 27.9 cm 10.67 in 27.1 cm 6.0 in 15.2 cm Legend: 1. CT Termination Enclosure 2. Shorting block 3. Breaker Panel 4.
  • Page 22 INSTALLATION For a 277/480V Three-Phase Wye panel with the 120V variant of the meter: - Connect meter Terminal A to the voltage disconnect Phase A (red wire) - Connect meter Terminal B to the voltage disconnect Phase B (black wire) - Connect meter Terminal C to the voltage disconnect Phase C (blue wire) - Connect meter neutral terminal to neutral bar in the voltage disconnect panel (white wire) - Connect earth wire to earth post using lug provided...
  • Page 23 INSTALLATION For a 277V/480V Three-Phase Wye Service panel with the 277V variant of the meter: - Connect the sense voltage Phase A (red wire) to the step down transformer Terminal A - Connect sense voltage B to the sense voltage connector J3 Phase B (black wire) - Connect sense voltage C to the sense voltage connector J3 Phase C (blue wire) - Connect sense voltage N to step down transformer Terminal N (white wire) - Connect the earth wire to earth post using lug provided...
  • Page 24 INSTALLATION For a 347/600V or higher 3PH Wye panel with potential transformers with the 120V variant of the meter: - Connect meter terminal A to the voltage disconnect phase A (red wire) - Connect meter terminal B to the voltage disconnect phase B (black wire) - Connect meter terminal C to the voltage disconnect phase C (blue wire) - Connect meter neutral terminal to neutral bar in the voltage disconnect panel (white wire) - Connect earth wire to earth post using lug provided...
  • Page 25 INSTALLATION Delta Service Metering To use the S8000 meter in a Delta service, the line-to-line voltage from the Delta service must be reduced to 120V line-to-line using appropriate potential transformers. Metering a Delta service requires only two potential transformers, and only two CTs for Phase A and C. Using the Phase B CT is optional. For a 3PH Delta panel with the 120V variant of the meter: - Connect meter Terminal A to the voltage disconnect Phase A (red wire) - Connect meter Terminal C to the voltage disconnect Phase C (blue wire)

  • Page 26: Installing Current Transformers

    INSTALLING CURRENT TRANSFORMERS 1. INSTALLING CURRENT TRANSFORMERS Both models of Series 8000 meter use current transformers (CTs) with different secondary outputs. All Series 8000 models S8UTS, 277TS, S8UWH, 277WH and S8120 meter variants uses solid- core 100mA CTs and is typically used where accuracy is important and long secondary CT wiring is required (up to 300 feet [91.44 meters]).
  • Page 27 INSTALLING CURRENT TRANSFORMERS Table 4: S8120-032 Table 5: S8120-062 Table 6: S8120-092 Cable 1 Cable 1 Cable 1 Meter Point ID CT X1 Color CT X2 Color Meter Point ID CT X1 Color CT X2 Color Meter Point ID CT X1 Color CT X2 Color P1-1 Black Green...

  • Page 28: Connecting The Ethernet Communications

    CONNECTING THE ETHERNET COMMUNICATIONS 5. CONNECTING THE ETHERNET COMMUNICATIONS When the Ethernet port is used to report data, an RJ45 patch cable is required to connect the Ethernet port to the local Ethernet network. 1. Route the cable through the slot in the Series 8000 meter enclosure. 2.

  • Page 29: Connecting The Modbus Rtu Communications

    CONNECTING THE MODBUS RTU COMMUNICATIONS 6. CONNECTING THE MODBUS RTU COMMUNICATIONS If the Modbus port is used to report data, an RS422/RS485 serial cable is required to connect the Modbus RTU port to the local Modbus network. 1. Route the cable through the slot in the Series 8000 meter enclosure. 2.

  • Page 30: Start-Up Sequence

    4. Power up the meter. The LCD on the front panel of the meter indicates the operating status of the unit as follows: a. Initial power up message "LEVITON" b. After the internal configuration is complete, the display shows default information for the first meter.

  • Page 31: Pulse Inputs

    PULSE INPUTS 8. PULSE INPUTS There are two Pulse In terminal blocks in the Series 8000 meter, as shown in Figure 2. Each terminal block has a negative terminal pin on the right and a positive terminal pin on the left. The pulse inputs are compatible with both dry and solid-state form A contacts, 10 Hz (maximum), 20 ms pulse width (minimum).

  • Page 32: Display Navigation

    DISPLAY NAVIGATION 9. DISPLAY NAVIGATION The Series 8000 meter has three buttons to control the information presented on the LCD. The display has a normal and a diagnostics mode. The Series 8000 meter starts in normal mode, and enters diagnostics mode when the Display button is pressed and held for 5 seconds.

  • Page 33: Configuration Tool Installation

    • Click on your specific Series 8000 model • Click on the “Software - Series 8000 Configuration Tool” link Unzip and run the install program provided with the Leviton Configuration Tool application on a Windows laptop or desktop computer. 10.1 Network and Meter Setup Power up the S8000 from the aux.

  • Page 34: Section 10.2 Connecting To S8000 Meter

    CONFIGURATION TOOL INSTALLATION 10.2 Connecting to the S8000 Meter Using the “Unit” drop down on the applications banner select the list function. This will cause the application to search the local subnet for S8000 meters to connect to. S8000 Configuration Tool Unit Help Unit Field Configuration Manufacturing...
  • Page 35 CONFIGURATION TOOL INSTALLATION After a few moments the Configuration Tool will retrieve the existing programming from the meter and display the following screen. S8000 Configuration Tool Unit Help Unit Field Configuration Manufacturing Meter Points (Circuits) Pulse Probes Main Meter - 120V - WYE Current IP Address: 192.168.111.68 MAC Address:...

  • Page 36: Regulatory Compliance

    REGULATORY COMPLIANCE 11. REGULATORY COMPLIANCE The Series 8000 meter must be installed by a certified electrician with knowledge of local safety regulations. Initial installation of the unit, and any subsequent modification to the unit, must be inspected by the local electrical safety authority. The Series 8000 meter complies with the standards listed in Table 3.

  • Page 37: Warranty

    Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for two years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option.
  • Page 38 201 North Service Road, Melville, N.Y. 11747 Telephone: 1-800-323-8920 • FAX: 1-800-832-9538 Visit Leviton’s Web site at http://www.leviton.com © 2017 Leviton Manufacturing Co., Inc. All Rights Reserved Specifications and Price Subject to Change at any time without notice © 2019 Leviton Mfg. Co., Inc.
