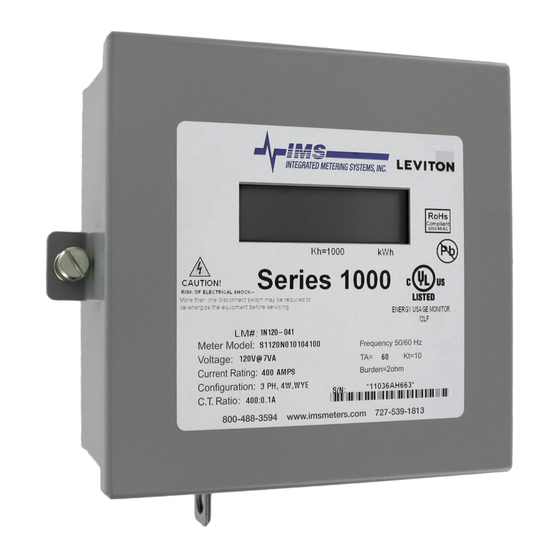

Leviton 1000 Series Quick Start Installation Manual

L1

CT Placement

H1
CT1
Load
Center
H1 or Label
CT2
Must Face
Source (Line)
15A 3-Pole
Neutral
Circuit Breaker*
Bus
0RA4850000001 REV 1
L2

Current Transformer (CT) Wiring

Colored Wire to X1
White Wire to X2
H1

Observe Proper Phase Wiring

CT1 & Line 1 Voltage Match
CT2 & Line 2 Voltage Match
L2
L1
Reference
Voltage
Connections*
Quick Start Installation Guide

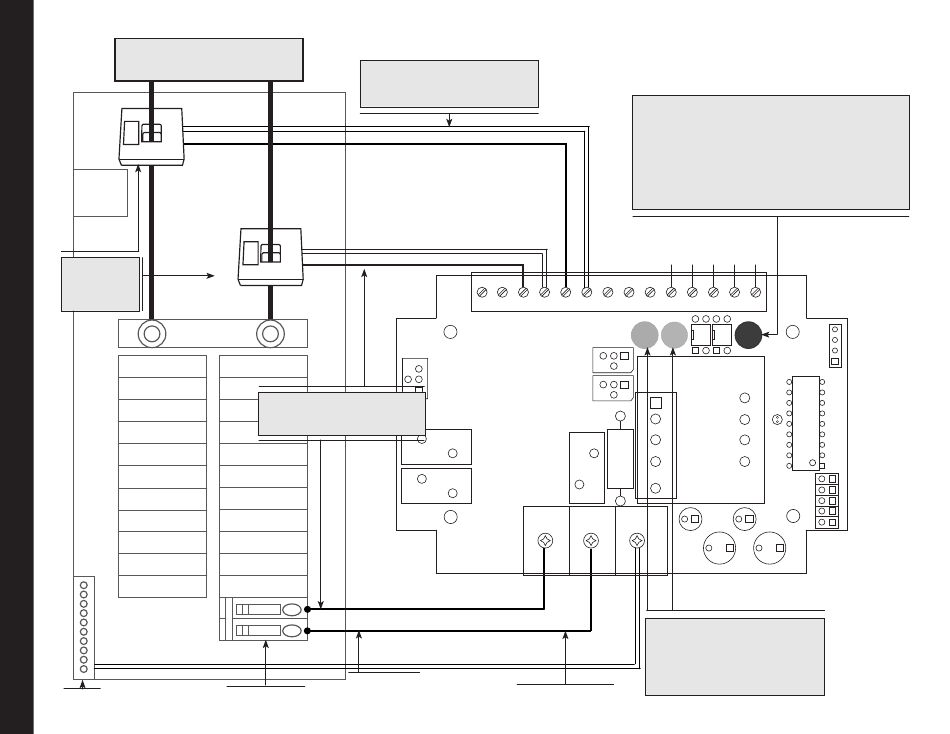

Series 1000 3-Wire Meter Wiring Detail

RED LED Reverse Phase Indicator

If illuminated, installation is incorrect.
Check the following:
1- CT Line and Load Orientation
2- Verify Reference Voltage Connections Match CT

Phase Placement

3- Proper Polarity of Conductors at CT Input Terminals
X1 X2 X1 X2
CT2 CT1
CT INPUTs
VOLTAGE
INPUTS
L2 L1 N

GREEN LEDs

Left - 1000 Watt Hour Duty Cycle
(500 wHrs ON and 500 wHrs OFF)
Right - 10 Watt Hour Duty Cycle
(5 wHrs ON and 5 wHrs OFF)
Line 1 (L1)

Power for the Meter

ISOLATED
OUTPUT
RS485
10 1K A B
COM
*Use appropriate wire gauge based on breaker rating.
