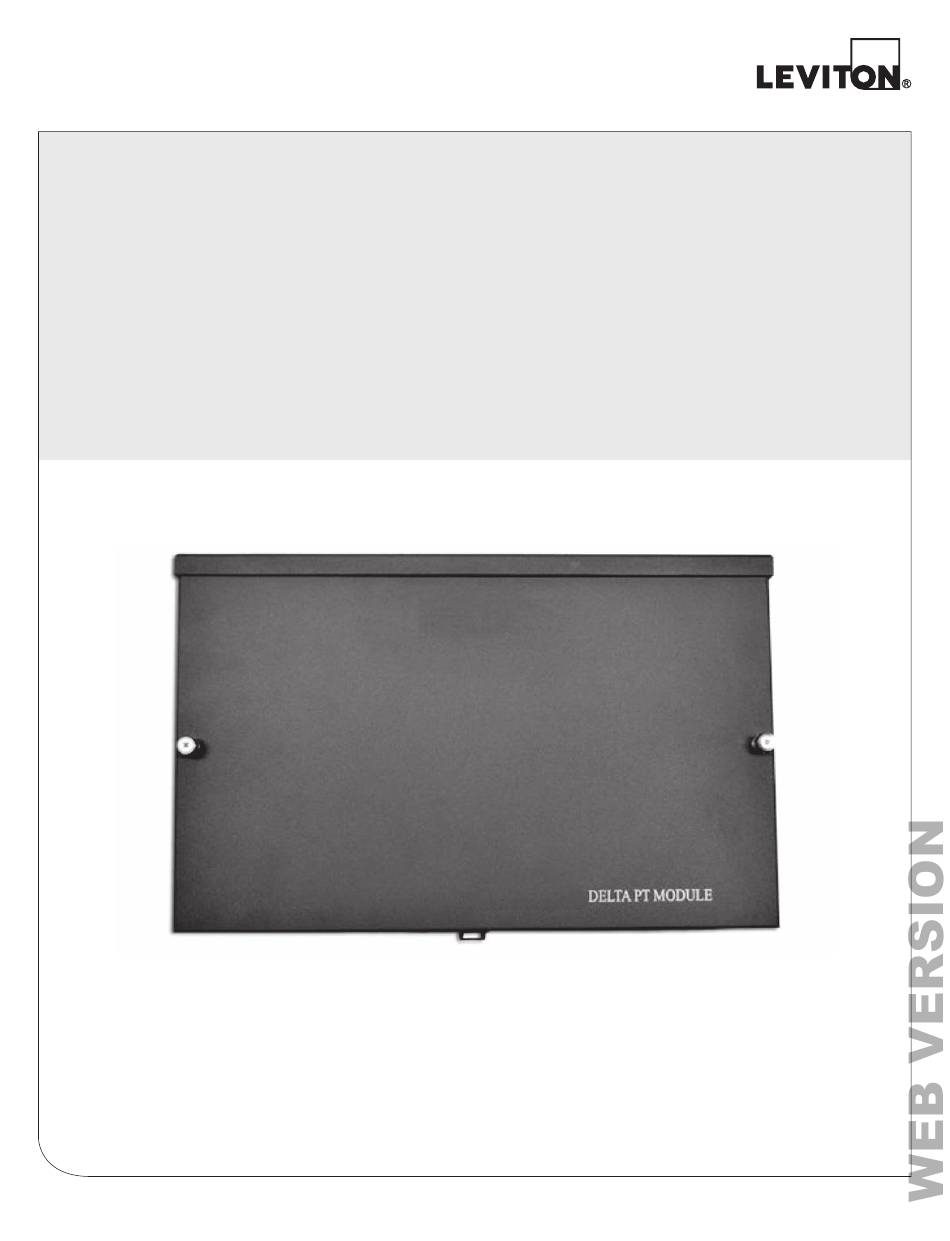

VerifEye
Series 8000 PT Module
®
Cat. No. S480V
Installation Guide
DI-DPT-S480V-00A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VerifEye 8000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leviton VerifEye 8000 Series

Summary of Contents for Leviton VerifEye 8000 Series

  • Page 1 VerifEye Series 8000 PT Module ® Cat. No. S480V Installation Guide DI-DPT-S480V-00A...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1 Introduction ......................1 1.1 Description and Specifications ................1 2 Installation ......................4 2.1 Mounting the VerifEye PT module ..............5 2.2 Install 347V Wye/600V Delta PT module in 600V three-phase 3-wire system .....................7 2.3 Install 347V Wye/600V Delta PT module in 347V three-phase 4-wire system .....................8 2.4 Install 480V Delta PT module in 480V three-phase 3-wire system ....9 3 Maintenance ......................9...
  • Page 3 WARNING: • HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH. • This equipment MUST be installed and serviced by qualified electrical personnel with the requisite knowledge, training and experience related to the installation and operation of this equipment. •...

  • Page 4: Introduction

    1 Introduction This guide provides a description of the VerifEye Series 8000 PT (potential transformer) module and procedures for installing and maintaining the module. This documentation is intended for those responsible for installing and maintaining the VerifEye PT (potential transformer) module. Installers must be qualified electricians with knowledge of local and national code requirements.
  • Page 5 1 Introduction Table 1: VerifEye PT module specifications Specification Value Dimensions Height 8.39 in. (21.31 cm) Width 13.53 in. (34.37 cm) Depth 2.125 in. (5.4 cm) Weight 12.5 lb (5.67 kg) Fuse Ratings High voltage inputs T315 mA, 1000V Voltage outputs T250 mA, 250V Transformer specifications Input voltage...

  • Page 6: Installation

    2 Installation The installation site must be supplied with access to the main electrical panel and any sub-panels. Portable or permanent lighting must be available to provide the installers with a clear view of the equipment and of the installation environment. Each installation may vary depending on physical site restrictions. Figure 1 shows the recommended spacing for mounting the equipment at the installation site.
  • Page 7 2 Installation List of tools and equipment The installer must have the following tools and equipment before proceeding with the installation: • an appropriate 15-Amp maximum circuit breaker or a disconnect device • current/voltage meter • 4-wire 14 AWG (1.63 mm2) 194°F (90°C) cable •...
  • Page 8 2 Installation Figure 2: Typical three-phase 4-wire 347V wye system installation Generic Breaker Panel PT Module Shorting Block Module Generic Conduit...

  • Page 9: Install 347V Wye/600V Delta Pt Module In 600V Three-Phase 3-Wire System

    2 Installation 2.2 Install 347V Wye/600V Delta PT module in 600V three-phase 3-wire system WARNING: • HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH. To be installed by electrician or other qualified personnel only. • TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before working on or inside the equipment.

  • Page 10: Install 347V Wye/600V Delta Pt Module In 347V Three-Phase 4-Wire System

    2 Installation 2.3 Install 347V Wye/600V Delta PT module in 347V three-phase 4-wire system WARNING: • HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH. To be installed by electrician or other qualified personnel only. • TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before working on or inside the equipment.

  • Page 11: Install 480V Delta Pt Module In 480V Three-Phase 3-Wire System

    2 Installation 2.4 Install 480V Delta PT module in 480V three-phase 3-wire system WARNING: • HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH. To be installed by electrician or other qualified personnel only. • TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before working on or inside the equipment.

  • Page 12: Maintenance

    No preventive maintenance is required on any of the equipment. Visually inspect the equipment yearly and ensure it is free of dust or other particles. If necessary, wipe with a clean cloth. Individual components are not user-serviceable and must be returned to Leviton for repair. 3.1 Fuse Replacement CAUTION: •...

  • Page 13: Regulatory Compliance

    If necessary, wipe with a clean cloth. Component servicing Individual components are not user-serviceable, and must be returned to Leviton for repair. If an equipment fault occurs, do not attempt to repair the faulty component.

  • Page 14: Warranty And Contact Information

    Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date.
