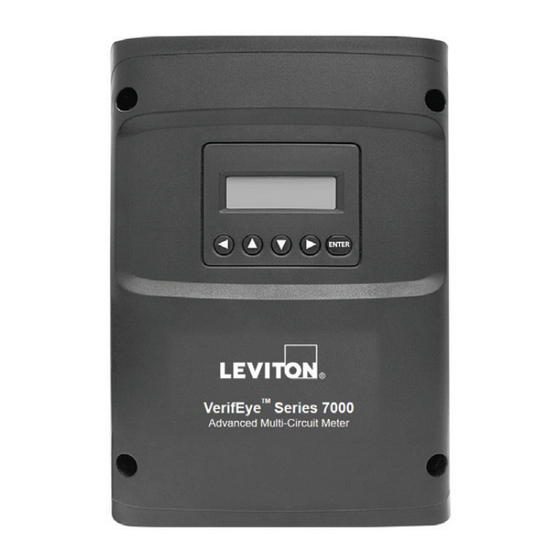

VerifEye
Series 7200/7300
Cat. Nos. 73D48, 72D48, 72N48
User Guide
Cat. 73D48
Cat. 72D48
PK-A3386-10-00-0B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VerifEye Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leviton VerifEye Series

Summary of Contents for Leviton VerifEye Series

  • Page 1 ® VerifEye Series 7200/7300 Cat. Nos. 73D48, 72D48, 72N48 User Guide Cat. 73D48 Cat. 72D48 PK-A3386-10-00-0B...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1 Introduction ..................1 2 Planning For Field Installation ............3 3 Meter Configuration ................5 4 Meter Installation ................16 5 Communication & Verification ............24 6 RTU Programming & Scripting............36 7 Appendix A: LCD Menu Navigation ..........47 8 Appendix B: Technical Specifications ..........50 9 Standard Statements and Warranty ..........54...

  • Page 3: Warnings And Cautions

    WARNINGS AND CAUTIONS WARNINGS: • RISK OF DEATH OR ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH. DO NOT ENERGIZE METER WITH THE VOLTAGE COVER REMOVED. CAREFULLY READ AND FOLLOW INSTRUCTIONS. • TO AVOID FIRE, SHOCK, OR DEATH, turn off all power sources supplying the equipment before working on or inside the equipment.
  • Page 4 Do no use any cleaning agents, including water, on the VerifEye device. • No accessories are approved for use with the VerifEye meter other than those specified in the Leviton Manufacturing product literature and price sheets. • A circuit breaker used as a disconnect must meet the requirements of IEC 60947-1 and IEC 60947-3 (Clause 6.11.4.2)

  • Page 5: Introduction

    INTRODUCTION There are two meters in the VerifEye ® series: the VerifEye 7200 and the VerifEye 7300. These meters monitor the voltage, current, power, energy, and many other electrical parameters on single and three-phase electrical systems. A VerifEye meter uses direct connections to each phase of the voltage and current transformers to monitor each phase of the current.
  • Page 6 INTRODUCTION Meter Anatomy All user connections are made on the circuit board. Connectors are identified by function and include polarity markers. Element ID Element ID LCD Display Navigation Buttons Voltage Cover (transparent) Plate Ground Serial # Model # MAC ID(s) Voltage Input 1...

  • Page 7: Planning For Field Installation

    PLANNING FOR FIELD INSTALLATION Project Manager Aspects Meter installation often includes coordination between individuals or groups of people with different responsibilities. Spend a few minutes considering who will be executing each portion of the installation and what tools are needed at each stage.
  • Page 8 • Connect USB/Ethernet cable from PC to meter • Thumb Drive (Virtual Element Viewer Utilities • Establish communication with meter Installer) or access www.Leviton.com and go • Firmware update (if desired) tosoftware downloads for this product • Configure software for anticipated meter setup •...

  • Page 9: Meter Configuration

    Install the Virtual Element Viewer Utilities Software Insert the Virtual Element Viewer Utilities thumb drive into the computer or download from the Leviton FTP site. (qualified Leviton personnel only). The installer should start automatically. If it does not, browse the thumb drive and locate the Setup.exe program, double-click on it, and follow the...
  • Page 10 METER CONFIGURATION 3.1.2 USB Connection (Power & Communications) Connect the VerifEye meter to a USB port of your computer to provide both power and communications. If equipped, the LCD display is the most visible indication of a running meter. b. For meters without a display, a green flashing LED on the circuit board indicates that the VerifEye meter has booted and is running.
  • Page 11 METER CONFIGURATION Direct When a PC is directly connected to a VerifEye meter via an ethernet cable, no DHCP service exists. This configuration can be made to work, but requires changes to either the meter communication settings or the PC network configuration.
  • Page 12 METER CONFIGURATION Network Scan Network Scan is a feature for monitoring previously installed and configured VerifEye meters over an Ethernet network. Network Scan will broadcast a UDP discovery packet on the same network as the PC running the Virtual Element Viewer Utilities application.
  • Page 13 METER CONFIGURATION Virtual Element Viewer Utilities Software Overview Virtual Element Viewer Utilities is a Windows application and is the most versatile software tool for configuring and verifying a VerifEye meter. All functions and menus are accessed under the central drop-down list which has a content filter for viewing Basic metering data or Extended meter data that can be helpful in troubleshooting.
  • Page 14 METER CONFIGURATION 3.2.1 Configuring Electrical Components Navigate to Configuration under Display Menu List Box. Enter a System Description for the physical location of the meter. If the entire system uses 2 Pole, click on Configure All Elements as 2 Pole. This automatically assigns all 24 virtual elements as 2 Pole loads.
  • Page 15 METER CONFIGURATION 3.2.2 Configuring RS-485 Communications If planning to setup communication via RS-485, follow the steps below: Navigate to Communication Setup under Display Menu List Box. Select RS-485. Select either Modbus or BACnet. If Modbus is selected, set the following: •...
  • Page 16 METER CONFIGURATION 3.2.3 Configuring Ethernet Communications If planning to setup communication via Ethernet, follow the steps below: Navigate to Communication Setup under Display Menu List Box. Select Ethernet. Select either Modbus or BACnet. If Modbus is selected, set the following: •...
  • Page 17 METER CONFIGURATION 3.2.4 Configuring Alarms in Power Meter Viewer Utilities You can access Alarm settings with Power Meter Viewer under the “SETUP” drop-down list. Integer Values You can enter Integer Values for Voltage Input 1 (3 and 12 circuit meters) and Voltage Input 2 (24 and 48 circuit meters) for L-N and L-L voltage measurements.
  • Page 18 METER CONFIGURATION Indicator Status If no alarms are enabled, the indicator remains dark. If an alarm is enabled but not triggered, the indicator will be bright green. A triggered alarm causes the Alarm Status indicator at the top of the Power Meter Viewer to turn red.
  • Page 19 METER CONFIGURATION 3.2.5 Setting the Real Time Clock The VerifEye meter includes a Real Time Clock. The clock is used only to time stamp Interval Data in the log, it is not used for calculation within the meter. For those customers using the IDR function of the meter, it is helpful (but not strictly necessary) to set the real time clock so that data records can be uniquely identified.
  • Page 20 METER CONFIGURATION 3.2.6 Retrieving Interval Data The VerifEye meter maintains an internal log of the energy data (Net kWh) for each channel in the meter. This log is updated every 15 minutes and is always active. The meter stores 63 days’ worth of 15 minute data in its memory. This data can be retrieved by users looking to restore gaps in data collection where RTUs may have been offline or communication has been interrupted.

  • Page 21: Meter Installation

    METER INSTALLATION This section is intended to support the physical installation of the meter and provide guidance on connecting the current transformers (CTs) correctly within the electrical load center and to the VerifEye meter. Meter Mounting Configurations VerifEye meters are sold in several form factors. Enclosures are designed to be wall mounted and connected to electrical conduit.
  • Page 22 METER INSTALLATION Installation Sequence For Enclosure Model Only (Cat. 71D48) Remove covers. Screws provided. Mount. Use the enclosure as a template. NOTE: If meter is not available to use as a template, see the mechanical specifications drawing in the appendix.
  • Page 23 METER INSTALLATION Connect. • Conduit fittings • Conduits • Blanking plugs Connect voltage leads. WARNING: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH. DO NOT ENERGIZE METER WITH VOLTAGE COVER REMOVED. CAREFULLY READ AND FOLLOW INSTRUCTIONS. Connect the voltage leads (L1, L2, L3 and N as necessary) to the meter through a dedicated disconnect or circuit breaker.
  • Page 24 METER INSTALLATION Attach high voltage cover. NOTE: IP30 TOUCH SAFE (with internal cover installed) Connect CT and communications wiring.
  • Page 25 METER INSTALLATION Wiring in a 3-wire, Split Phase Service Panel WARNING: TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring! WARNING: HIGH VOLTAGE MAY BE PRESENT. To be installed by qualified personnel only.
  • Page 26 L1-N, L2-N(est), L3-N NOTE: The VerifEye meter series of products uses the NEUTRAL terminal as a voltage reference. For systems without a neutral conductor, Leviton suggests connecting a ground wire to this terminal. If the neutral terminal is left open, L-L measurements will be accurate, but L-N measurements may not be symmetric.
  • Page 27 METER INSTALLATION Current Transformers Basics Ensure CTs meet the following criteria by referring to label on CT: • 600 VAC UL Rated • UL2808 Listed • 1/3 (333 mV) output voltage • Appropriate range for the circuits (5-120%) of CT Rating Recommended Ensure CT orientation &...
  • Page 28 METER INSTALLATION Wiring the CTs to the VerifEye Meter The image below shows how to connect CTs to the input terminals on the S7200/7300 for each service type. For service types that are not specifically listed, choose SINGLE PHASE service from the drop down menu and configure each channel individually.
  • Page 29 Alarm Output The alarm is designed to be connected to an external DC source between 5 and 24 volts and used with a customer-supplied pull-up resistor. A 10k-ohm 1/4 watt resistor is the recommended load for this circuit. For more information on setting up alarms, see section 3.2.4, “Configuring Alarms in Power Meter Viewer Utilities."...

  • Page 30: Communication & Verification

    COMMUNICATION & VERIFICATION This section is intended to support the commissioning of the meter by an instrumentation technician. In many cases, the electrical installation is conducted ahead of the availability of the RTU or was performed by a different installer. Often the technician is working in concert with a remote programmer who is confirming the connectivity with a remote host system.
  • Page 31 COMMUNICATION & VERIFICATION Communication Verification NOTE: Verification includes confirmation of BOTH the physical interface settings (Serial or Ethernet) and the protocol (Modbus or BACnet) settings. The LCD User interface can be used to quickly confirm the settings required for each combination of interface and protocol. The interface is intuitive and groups together commonly associated registers.
  • Page 32 COMMUNICATION & VERIFICATION Physical Interface Verification Serial Setup Verification In a multidrop serial network, the host data format settings are typically known or specified and the slave is adjusted to match. In some cases (long wiring runs, etc.), it may be necessary to experiment in determining the fastest allowable baud rate for a given wiring configuration by changing BOTH the host and slave devices.

  • Page 33: Bacnet Mstp

    COMMUNICATION & VERIFICATION Modbus Settings Modbus RTU Settings Device Address: In a Modbus network each device must be assigned a unique slave address. Valid Modbus addresses are 1-240 (the VerifEye 48 channel meter requires 15 addresses beyond Element A). The slave address of the power meter sets the register address for Element A.
  • Page 34 COMMUNICATION & VERIFICATION Pulse Inputs Series 7200/7300 meters are equipped with 2 pulse inputs. Pulse counting supports accumulation of consumption data from any external meter using a dry contact (Form A Relay) or open collector outputs. The pulse inputs are compatible with “low speed”...
  • Page 35 COMMUNICATION & VERIFICATION 5.10 Access Restriction Limitations If security levels have been set up in the meter, no data is accessible through the LCD user interface, without entering the PIN credentials. NOTE: Protocols such as Modbus DO NOT SUPPORT ANY LEVEL OF security such that any network traffic acting as a master can retrieve and write data from the registers.
  • Page 36 PINs are also accessible as registers, but are encoded so that reading the value of the register through an RTU does not inform a user what the password is. This feature allows Leviton Manufacturing to support looking up forgotten PINs, if network access is available.
  • Page 37 COMMUNICATION & VERIFICATION 5.12 Verification of Installation Once the VerifEye meter is configured and communicating with the RTU, it is a good idea to perform some simple checks to ensure that all the CTs are on the correct voltage phases and that the CTs are facing the correct direction. The following are recommendations that work for typical installations.
  • Page 38 COMMUNICATION & VERIFICATION 5.12.2 Phase Checking by Phasor Plot When a CT is installed on the incorrect phase, the indicated current vector is pointing either 180 degrees away (a split phase system) or 120 degrees away (a three-phase system) from the true displacement angle. In the latter case, this usually causes a significant decrease in the reported power factor, even if the CT is also on backwards.
  • Page 39 COMMUNICATION & VERIFICATION 5.12.3 CT Orientation Check The VerifEye meter reports power and energy in each electrical quadrant under a different register. When CTs are installed backwards, the indicated current vector is oriented 180 degrees away from the true displacement angle. In accordance with standard definitions, the Wattage and VARs of the effected channel report with a sign opposite from what is expected.
  • Page 40 COMMUNICATION & VERIFICATION 5.13 Power Factor Convention Power Factor is the ratio of a signed number (true power) and an unsigned number (apparent power). This discrepancy has led to some customer confusion. The VerifEye meter allows users to select between two conventions (ANSI & IEEE).
  • Page 41 COMMUNICATION & VERIFICATION 5.15 Pre-Processing Aids The meter has several registers that can aid in pre-processing or post- processing data that otherwise may need seconday operations. Snap Thresholds The signal to noise ratio of the meter is above 80 db at full scale (1 part in 10,000).

  • Page 42: Rtu Programming & Scripting

    • SunSpec Energy Meter The complete register set is included as an Excel file on the supplied thumb drive or at: https://www.leviton.com and go to the S7200/7300 product page's Support/Downloads section. Virtual Element vs. System Scope Virtual Elements Element The term "element" is used in two contexts. Physically the term Element is used to describe groups of channel sections identified by CT numbers on the circuit board.
  • Page 43 The Virtual Element Viewer Utilities software enforces all element configurations to form a valid electrical system. Configurations performed by remote systems may produce unexpected results if configurations are internally inconsistent. If a configuration is required to be performed remotely, please contact Leviton for assistance. Configuring System Registers...
  • Page 44 RTU PROGRAMMING & SCRIPTING String example 1: Change a Static IP Address Change the IP address of a meter from 192.168.2.8 to 192.168.2.9 Note: Update the entire IP Address, not just the “8” to “9” . If you update only the "8"...
  • Page 45 RTU PROGRAMMING & SCRIPTING VIA MODBUS TCP (ETHERNET) USING FUNCTION CODE 6 / WRITE SINGLE REGISTER TXNID PROID LENGT ADDR DATA (TXNID will be arbitrary) VIA MODBUS TCP (ETHERNET) USING FUNCTION CODE 16 / WRITE MULTIPLE REGISTER TXNID PROID LENGT ADDR #REGS DATA0...
  • Page 46 RTU PROGRAMMING & SCRIPTING Specific Implementation Examples – Element A set to ID 1 VIA MODBUS RTU (SERIAL) USING FUNCTION CODE 6 / WRITE SINGLE REGISTER ADDR DATA VIA MODBUS RTU (SERIAL) USING FUNCTION CODE 16 / WRITE MULTIPLE REGISTER ADDR #REGS DAT00...
  • Page 47 RTU PROGRAMMING & SCRIPTING VVIA MODBUS TCP (ETHERNET) USING FUNCTION CODE 6 / WRITE SINGLE REGISTER TXNID PROID LENGT ADDR DATA (TXNID will be arbitrary VIA MODBUS TCP (ETHERNET) USING FUNCTION CODE 16 / WRITE MULTIPLE REGISTER TXNID PROID LENGT ADDR #REGS DAT00...
  • Page 48 RTU PROGRAMMING & SCRIPTING Floating Point Registry Entry The VerifEye meter uses 32-bit IEEE 754 formatted floating point numbers for reporting results and storing scalable user register values such as CT range, CT and PT scaling factors, etc. Because these registers require two 16-bit Modbus addresses to convey, these registers must be accessed as multiple registers or accessed sequentially without interruption.
  • Page 49 RTU PROGRAMMING & SCRIPTING b) Leviton Virtual Element Viewer c) If an internet utility is not available, Leviton Virtual Element Viewer has a built-in conversion utility under the Advanced Tab. Enter 100.00 and press the “Convert to Modbus Integers” button.
  • Page 50 Modbus users write [1234] to effect a soft reset. The meter reboot time is approximately 10 seconds. See the Modbus examples document on the Leviton Manufacturing web site or included with your electronic documentation for additional support on programming Modbus.
  • Page 51 RTU PROGRAMMING & SCRIPTING BACnet Building Automation and Control Network (BACnet) protocol was developed under the auspices of the American Society of Heating, Refrigerating and Air- Conditioning Engineers (ASHRAE) and is recognized as an American National, European, and ISO global standard. BACnet Device ID: All device IDs on a BACnet network must be unique.
  • Page 52 RTU PROGRAMMING & SCRIPTING Within each element, Structured View lists the BACnet objects by Object Type and then by numeric number as shown below. In addition objects for elements are grouped in a “hotel room” scheme. That is Element A (and system objects) have a range from 0-9999, Element B 10000-19999, Element C 20000-29999, to Element P on the VerifEye 48 circuit meter 150000-15999.

  • Page 53: Appendix A: Lcd Menu Navigation

    APPENDIX A: LCD MENU NAVIGATION About Meter The complete LCD navigation map is shown in diagram form in the next few pages. The “About Meter” menu is the most commonly accessed item which requires 5 down presses or 1 up (rolling menu) to access. Main Menu View Communications Real Time Values...
  • Page 54 APPENDIX A: LCD MENU NAVIGATION Menu Navigation Idle Screen If Enter button Login if enabled Communication settings can only be changed if logged in. Main Menu Serial Settings Ethernet Settings changes a digit. selects digit to change. Measurement Display returns to main menu. Next Element move between fields.
  • Page 55 APPENDIX A: LCD MENU NAVIGATION Communication Navigation Main Menu Communications Real-Time Values View Meter Setup Verify Installation Log In / Out About Meter Modbus Settings BACnet Settings Protocol: Modbus Protocol Protocol Protocol: BACnet Serial Settings Serial Settings Ethernet Settings Modbus Modbus Ethernet Settings LAN Connected...

  • Page 56: Appendix B: Technical Specifications

    APPENDIX B: TECHNICAL SPECIFICATIONS Main Specifications Specification Description Service Types Single phase, split phase, three phase-four wire (WYE), three phase-three wire (Delta) Voltage Input Channels 90-346 VAC line-to-neutral, 600V line-to-line, CAT III, two independent voltage reference inputs. Current Channels 48 channels, 0.525 VAC max, 333 mV CTs, 0-4,000 Amps depending on current transducer.
  • Page 57 APPENDIX B: TECHNICAL SPECIFICATIONS Communication Specifications Specification Description Hardware RS-485, Ethernet, & USB (for configuration only) Modbus RTU or BACnet Master Slave Token Passing protocol (MS/TP) Modbus (using SunSpec IEEE-754 single precision floating point Supported Protocols model) Modbus TCP BACnet IP Max Communication 1200 meters total length, Length (RS485)

  • Page 58: Standard Statements And Warranty

    Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date.
