VerifEye
®
Series 8000 Meter
Cat. Nos. S8112, S8124, S8UTS, 277TS, and 277WH
User Guide
PK-A3040-10-00-0D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VerifEye S8112 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leviton VerifEye S8112

Summary of Contents for Leviton VerifEye S8112

  • Page 1 VerifEye ® Series 8000 Meter Cat. Nos. S8112, S8124, S8UTS, 277TS, and 277WH User Guide PK-A3040-10-00-0D...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Warnings and Cautions ........................2 Introduction ............................3 Safety Precautions ........................9 Installation ............................10 Installing Current Transformers ....................24 Connecting the Ethernet Communications ................27 Connecting the Modbus RTU Communications ...............27 Start-Up Sequence ........................28 Pulse Inputs ..........................29 Display Inputs ..........................30 10 Configuration Tool Installation ....................31 11 Regulatory Compliance ......................

  • Page 4: Warnings And Cautions

    (not shown in the wiring diagrams). Failure to follow these instructions will result in death or serious injury. IMPORTANT NOTES • Please refer to the product manual or call/E-mail the Leviton ® Meter Support Team for further assistance (800-959-6004 / meters@leviton.com).

  • Page 5: Introduction

    1 INTRODUCTION This document describes the Series 8000; including procedures to install and start up the unit, and complete the initial configuration: • "System Description" • "Pre-Installation" • "Installation Procedures" • "Start-Up Sequence" • "Fuse Replacement" This documentation is intended for those responsible for installing and configuring the Series 8000 meters.
  • Page 6 1 INTRODUCTION Table 1: Series 8000 Meter System Specifications Specification Series 8000 Series 8000 Model: S8UTS, 277TS Model: S8112, S8124, 277WH Dimensions Height: 13.125 in. (33.5 cm) Height: 13.125 in. (33.5 cm) Width: 12 in. (30.5 cm) Width: 12 in. (30.5 cm) Depth: 2.125 in.

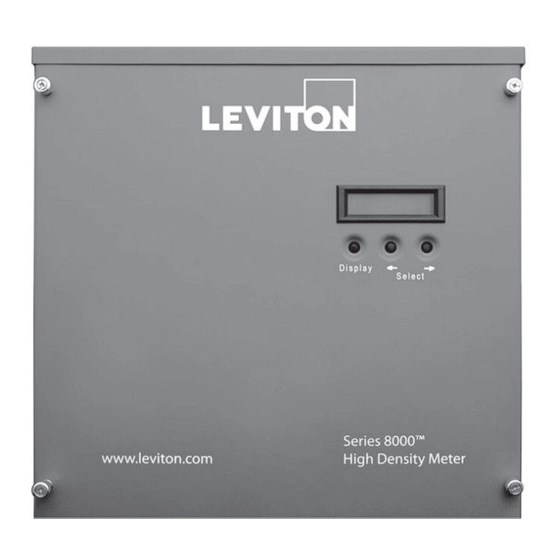

  • Page 7 1 INTRODUCTION Front Panel Display The Series 8000 meters have the following front panel features (Figure 1): • LCD - displays 2 rows of 16 characters for each of the meter points (8, 12, or 24) • Display button - cycles through the available information for each of the meter points •...
  • Page 8 1 INTRODUCTION Figure 2 shows the internal view of the Series 8000 Figure 2: Series 8000 Internal View (Meter Only) Sense Voltage Control Voltage Control Voltage Earth Stud Terminal Block Terminal Block Fuse Jumper Cover Screw Location Ingress Punch-outs Modbus RTU Port Cover Screw Location Display...
  • Page 9 1 INTRODUCTION Figure 3 shows the dimensions of the Potential Transformer, Series 8000 Meter and CT Termination enclosure. Figure 3: Product Dimensions 13.53” (343.7mm) 12.58” (319.5mm) 8.39” (213.1mm) 480V DELTA ENCLOSURE 3.50” (88.9mm) MIN 13.19” (335.0mm) S8000 2.25” (57.2mm) SHORTING 6.50”...
  • Page 10 1 INTRODUCTION Figure 4 shows the a functional diagram of how all possible components fit together for a 3 Phase 3 wire installation. Figure 4: Product Wiring Diagram PT Enclosure (OPTIONAL)* Series 8000 CT Termination Enclosure...

  • Page 11: Safety Precautions

    2 SAFETY PRECAUTIONS Carefully observe these safety instructions. DANGER HAZARD OF ELECTRICAL SHOCK, EXPLOSION, OR ARC FLASH • TO AVOID DEATH, PERSONAL INJURY OR PROPERTY DAMAGE, disconnect service voltage from the panel and use a properly rated voltage sensing device to confirm power is off. •...

  • Page 12: Installation

    3 INSTALLATION This section contains the following installation topics: • "Pre-Installation" • "Installation Procedures" • "Start-Up Sequence" 3.1 Pre-Installation The pre-installation checklist and site planning must be performed before installing the equipment at the site. 3.1.1 Pre-Installation Checklist The installer must provide the following information, tools, and equipment before proceeding with the installation: - Certified current transformers for metering - An appropriate 15-Amp maximum circuit breaker or a fused disconnect...
  • Page 13 3 INSTALLATION 3.1.2 Site Planning 1. Determine the number of S8000 meters to be installed and ensure adequate space. 2. Determine the number of Modbus RTU or Ethernet drops required, and ensure they are installed before installing the S8000 meters. 3.
  • Page 14 3 INSTALLATION In Figure 5, the meter is powered and takes its sense voltage directly from a breaker within the panel. Figure 5: 120V Mounting Layout, Dimensions and Clearances 11.0 in 6.0 in 27.9 cm 15.2 cm 10.67 in 27.1 cm 4.0 in 10.2 cm Legend:...
  • Page 15 NOTE: Potential transformer burden depends on the control voltage source. If control voltage is provided separately (not derived from the metered voltage), then lower transformer burden may be acceptable. Contact your local Leviton representative for details. Potential transformers must be mounted in a listed electrical enclosure as shown in Figure 6.
  • Page 16 3 INSTALLATION Mount the potential transformer enclosure between the supply voltage and the Series 8000 meters as shown in Figure 7. Transformer configuration must be Y||Y (Wye/Wye). In Figure 7, the meter is powered from the potential transformers that are fed from a breaker within the 347V/600V panel.
  • Page 17 3 INSTALLATION 3.1.6 Installing the Sense Voltage and Control Voltage Cables in Wye and Delta Services The sense voltage (A, B, C, N) provides phase voltages for metering. The configuration depends on the type of service being metered: - See "For a Single-Phase panel with the 120V variant of the meter." - See "For a 120/208V Three-Phase Wye panel with the 120V variant of the meter."...
  • Page 18 3 INSTALLATION Carefully observe these safety instructions. DANGER HAZARD OF ELECTRICAL SHOCK, EXPLOSION, OR ARC FLASH • TO AVOID DEATH, PERSONAL INJURY OR PROPERTY DAMAGE, disconnect service voltage from the panel and use a properly rated voltage sensing device to confirm power is off. •...
  • Page 19 3 INSTALLATION For a Single-Phase Panel with the 120V variant of the meter: - Connect meter Terminal A to the voltage disconnect Phase A (red wire) - Connect meter Terminal B to the voltage disconnect Phase B (black wire) - Connect meter neutral terminal to neutral bar in the voltage disconnect panel (white wire) - Connect earth wire to earth post using lug provided - Meter Terminal C is not connected - Install power supply shorting jumpers (see Figure 8)
  • Page 20 3 INSTALLATION For a 120/208V Three-Phase Wye panel with the 120V variant of the meter: - Connect meter Terminal A to the voltage disconnect Phase A (red wire) - Connect meter Terminal B to the voltage disconnect Phase B (black wire) - Connect meter Terminal C to the voltage disconnect Phase C (blue wire) - Connect meter neutral terminal to neutral bar in the voltage disconnect panel (white wire) - Connect earth wire to earth post using lug provided...
  • Page 21 3 INSTALLATION Figure 10: For a 120/208V Three-Phase Wye Panel Version with no Shorting Blocks 6.0 in 11.0 in 15.2 cm 27.9 cm 10.67 in 27.1 cm 6.0 in 15.2 cm Legend: 1. CT Termination Enclosure 2. Shorting block 3. Breaker Panel 4.
  • Page 22 3 INSTALLATION For a 277/480V Three-Phase Wye panel with the 120V variant of the meter: - Connect meter Terminal A to the voltage disconnect Phase A (red wire) - Connect meter Terminal B to the voltage disconnect Phase B (black wire) - Connect meter Terminal C to the voltage disconnect Phase C (blue wire) - Connect meter neutral terminal to neutral bar in the voltage disconnect panel (white wire) - Connect earth wire to earth post using lug provided...
  • Page 23 3 INSTALLATION For a 277V/480V Three-Phase Wye Service panel with the 277V variant of the meter: - Connect the sense voltage Phase A (red wire) to the step down transformer Terminal A - Connect sense voltage B to the sense voltage connector J3 Phase B (black wire) - Connect sense voltage C to the sense voltage connector J3 Phase C (blue wire) - Connect sense voltage N to step down transformer Terminal N (white wire) - Connect the earth wire to earth post using lug provided...
  • Page 24 3 INSTALLATION For a 347/600V or higher 3PH Wye panel with potential transformers with the 120V variant of the meter: - Connect meter terminal A to the voltage disconnect phase A (red wire) - Connect meter terminal B to the voltage disconnect phase B (black wire) - Connect meter terminal C to the voltage disconnect phase C (blue wire) - Connect meter neutral terminal to neutral bar in the voltage disconnect panel (white wire) - Connect earth wire to earth post using lug provided...
  • Page 25 3 INSTALLATION Delta Service Metering To use the S8000 meter in a Delta service, the line-to-line voltage from the Delta service must be reduced to 120V line-to-line using appropriate potential transformers. Metering a Delta service requires only two potential transformers, and only two CTs for Phase A and C. Using the Phase B CT is optional. For a 3PH Delta panel with the 120V variant of the meter: - Connect meter Terminal A to the voltage disconnect Phase A (red wire) - Connect meter Terminal C to the voltage disconnect Phase C (blue wire)

  • Page 26: Installing Current Transformers

    This information is also inside of the meter's outer cover. Each CT has an X1 (positive) and X2 (neutral) wire pair. Leviton recommends using butt-splice connectors to attach the CT to a specific meter wire pair. The direction of the energy flow is indicated on the CT.
  • Page 27 4 INSTALLING CURRENT TRANSFORMERS Table 3: S8124, S8UTS, 277TS, 277WH Table 4: S8112 CT Terminations with Single-Pole Loads CT Terminations with 2-Pole Loads Cable 1 Cable 1 Meter Point ID CT X1 Color CT X2 Color Meter Point ID CT X1 Color CT X2 Color P1-1 Black...
  • Page 28 5 CONNECTING THE ETHERNET COMMUNICATIONS When the Ethernet port is used to report data, an RJ45 patch cable is required to connect the Ethernet port to the local Ethernet network. 1. Route the cable through the slot in the Series 8000 meter enclosure. 2.

  • Page 29: Connecting The Ethernet Communications

    6 CONNECTING THE MODBUS RTU COMMUNICATIONS If the Modbus port is used to report data, an RS422/RS485 serial cable is required to connect the Modbus RTU port to the local Modbus network. 1. Route the cable through the slot in the Series 8000 meter enclosure. 2.

  • Page 30: Start-Up Sequence

    4. Power up the meter. The LCD on the front panel of the meter indicates the operating status of the unit as follows: a. Initial power up message "LEVITON" b. After the internal configuration is complete, the display shows default information for the first meter.

  • Page 31: Pulse Inputs

    8 PULSE INPUTS There are two Pulse In terminal blocks in the Series 8000 meter, as shown in Figure 2. Each terminal block has a negative terminal pin on the right and a positive terminal pin on the left. The pulse inputs are compatible with both dry and solid-state form A contacts, 10 Hz (maximum), 20 ms pulse width (minimum).

  • Page 32: Display Inputs

    9 DISPLAY NAVIGATION The Series 8000 meter has three buttons to control the information presented on the LCD. The display has a normal and a diagnostics mode. The Series 8000 meter starts in normal mode, and enters diagnostics mode when the Display button is pressed and held for 5 seconds. To adjust the contrast, hold down the Display button, and use the right and left arrow buttons to increase and decrease the contrast respectively.

  • Page 33: Configuration Tool Installation

    • Click on your specific Series 8000 model • Click on the “Software - Series 8000 Configuration Tool” link Unzip and run the install program provided with the Leviton Configuration Tool application on a Windows laptop or desktop computer. 10.1 Network and Meter Setup Power up the S8000 from the aux.
  • Page 34 10 CONFIGURATION TOOL INSTALLATION 10.2 Connecting to the S8000 Meter Using the “Unit” drop down on the applications banner select the list function. This will cause the application to search the local subnet for S8000 meters to connect to. After a few moments the meters found will be listed in a table. Select the S8000 to be programmed and click OK.
  • Page 35 10 CONFIGURATION TOOL INSTALLATION After a few moments the Configuration Tool will retrieve the existing programming from the meter and display the following screen.

  • Page 36: Regulatory Compliance

    - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by Leviton Manufacturing Co., could void the user’s authority to operate the equipment...

  • Page 37: Standard Statements And Warranty

    Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date.
