Ergotron's Medical Grade Power Strip provides
electrical AC power outlets for mobile point of care
computing equipment in a healthcare environment.

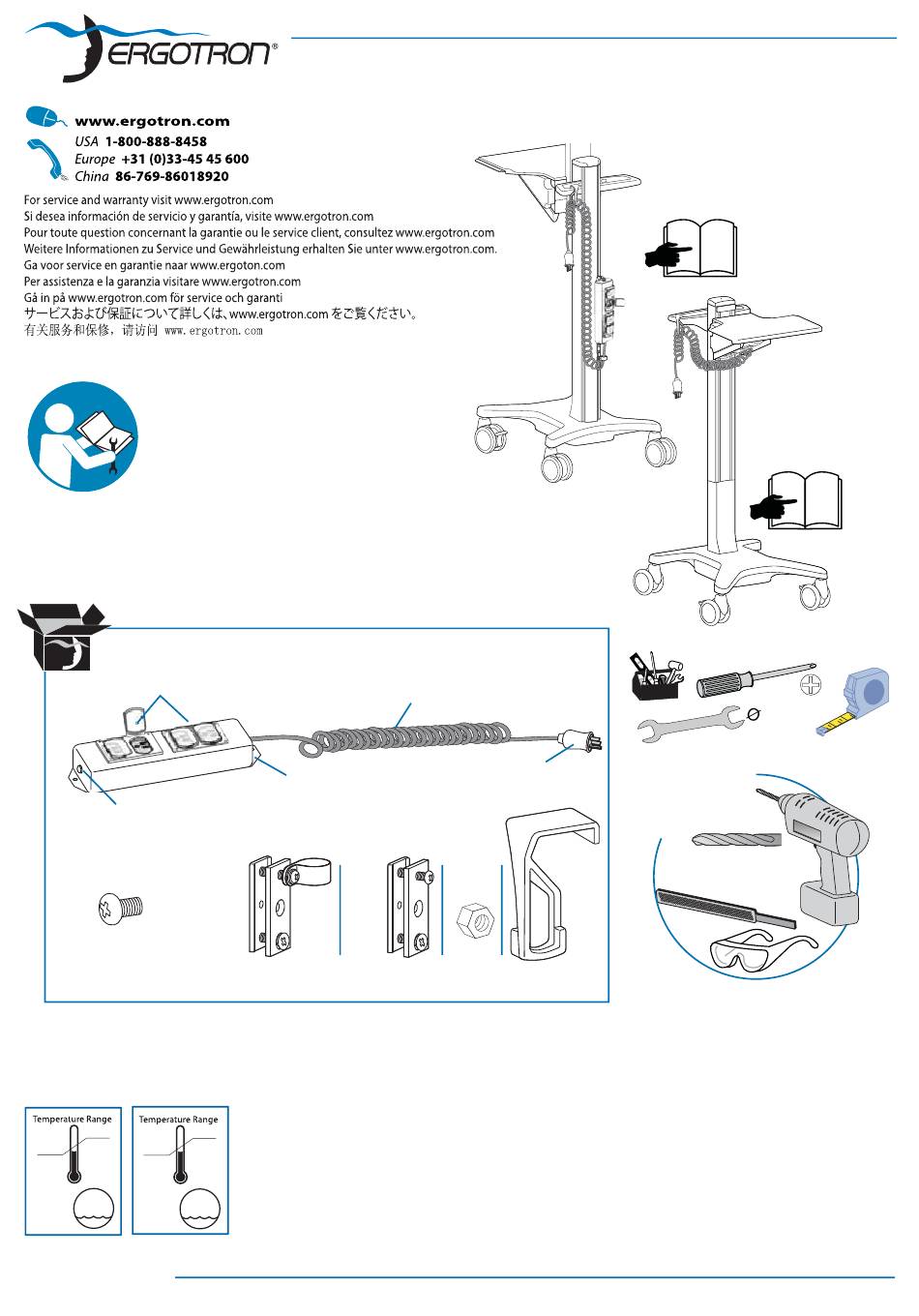

Outlet Protector
(individual flip-hatch for each outlet)
1x
Power "on"
Indicator Light
2x
M4 x 8mm
*To obtain 6' (183 cm) of usable length, pre stretch cord to 7' (213 cm).
This may require up to 25 lbs (11.34 kg) of force.
Medical Grade Power Strip -
Ergotron's Medical Grade Power Strip includes 4 power outlets with individual protectors, power indicator light, 2 circuit breakers, a coiled cord with strain relief and storage hook,
and a polarized connector designed for use in Hospital Grade Receptacles.
• The Medical Grade Power Strip is certifi ed to UL 1363A.
• The recommended storage temperature is 15°C (59°F). The minimum storage temperature is -20°C (-4°F) and the maximum storage temperature is 60°C (104°F).
The recommended humidity range for storage is 0-95% rH. Refer to pages 6-7 for Maintenance and Safety information.
40° C
29 °C
104° F
86 °F
10 °C
-20 °C
50 °F
- 4 °F
Relative
Relative
Humidity 5-95% rH Humidity 5-95% rH
Range Range
Operational Storage
888-83-059-G-01 rev. D • 03/13
3' - 4' (91-122 cm) power cord*
Circuit Breaker
Reset Button
1x
2x
Input: 120VAC/60 Hz; Output: 120VAC/60 Hz, 15 A maximum, total.
FCC Compliance Statement
60° C
50 °C
Ergotron's Medical Grade Power Strip
140° F
122 °F
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
Changes or modifi cations not expressly approved by Ergotron, Inc. could void the user's authority to operate the equipment.
Please contact Ergotron for complete EMC compatibility information.

ASSEMBLY INSTRUCTIONS

Medical Grade Power Strip
Polarized
Connector
1x
3x
8 mm
has been tested and found to comply with the limits for a Class A digital device,
EN
Mount to Rear
of Cart
2
Mount Under
Worksurface
4
8 mm
See Special
Instructions
on Page 4
Ø 1/4" (6.35 mm)
Drill for Steel
1 of 8
