13. WALL CONTROL OPERATING INSTRUCTIONS (cont.)
NOTE: Maximum of 2 fans can operate on a circuit through the wall
transmitter.
Maximum of 12 fans can operate on a circuit through an on/off switch
or breaker when utilizing the app for the fan control (without the
wall transmitter in the circuit).

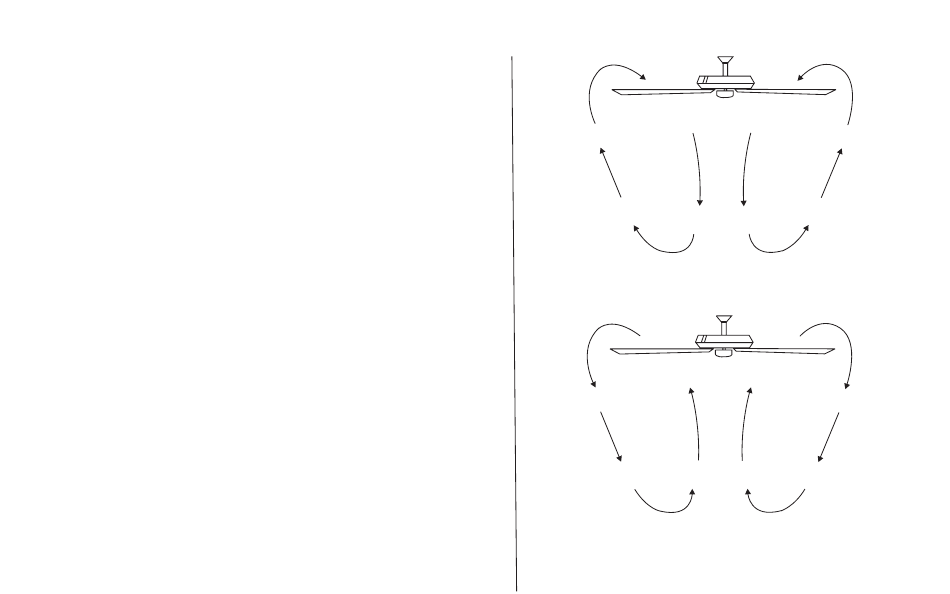

Summer mode - (Counter-clockwise) A downward airflow creates a cooling
effect as shown in Fig. 22. This allows you to set your air conditioner on a
warmer setting without affecting your comfort.
Winter mode - (Clockwise) An upward airflow moves warm air off the
ceiling area and redistributes the warm air that hovers around the ceiling to
the living space as shown in Fig. 23. This should allow for savings on heating
costs.
NOTE: To operate the reverse function on this fan, press the reverse button
while the fan is running.
NOTE: Fans do not change the temperature in the room, they change the
comfort level allowing you to save energy.
FR -W 18 0 3
FIGURE 22
FIGURE 23
