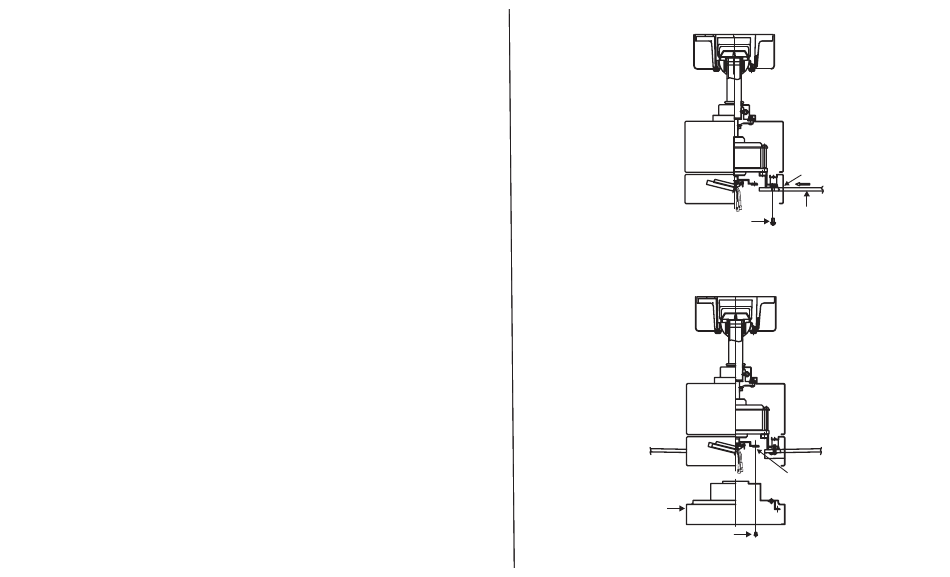

10. ATTACHING THE FAN BLADES

1. Attach the blade to the blade arm using the screws with rubber
washers as shown in Figure 17. Start screw into blade arm. Re-
peat for the two remaining screws.
2. Tighten each screw. Make sure the blade is straight.
3. Fasten blade assembly to motor using the screws supplied.
(Fig. 17)

11. INSTALLING THE ADAPTER PLATE

1. Remove one of the three mounting plate screws from the
mounting ring and loosen the other two screws. (Do not remove.)
2. Place the key holes in the mounting plate over the two screws
previously loosened from the mounting ring. Turn the mounting
plate until the adapter plate locks in place at the narrow section of
the key holes. (Fig. 18)
3. Tighten the two mounting ring screws previously
loosened and the one previously removed to secure adapter plate.
FR -W 1 8 0 3
Blade
Screws with
rubber washers
FIGURE 17
Mounting ring
Adapter
plate
Screw
FIGURE 18
Slot
16
