7. MAKING THE ELECTRICAL CONNECTIONS (cont.)
Motor to receiver electrical connections: (Fig. 13)
1. Connect the hanger ball/downrod assembly ground wire, mount-
ing bracket ground wire and receiver ground wire to the ground
wire in outlet box.
WARNING: Failure to connect ground wires could result in poor
fan control functionality.
2. Connect the red wire from the fan to the red wire marked "TO
MOTOR" from the receiver.
3. Connect the grey wire from the fan to the grey wire marked "TO
MOTOR" from the receiver.
4. Connect the yellow wire from the fan to the yellow wire marked
"TO MOTOR" from the receiver.
5. Connect the white wire from the fan to the white wire marked
"For Light" from the receiver.
6. Connect the blue wire from the fan to the blue wire marked "For
Light" from the receiver.
Receiver to house supply wires electrical connections: (Fig. 13)
1. Connect the black (hot) wire from the ceiling to the black wire
marked "AC in L" from the receiver.
2. Connect the white (neutral) wire from the ceiling to the white wire
marked "AC in N" from the receiver.
FR -W 1 8 0 3
Outlet box
Black (hot)
Black ("AC IN L")
Receiver
Red (to motor)
Gray (to motor)
Yellow (to motor)
Yellow (motor)
Gray (motor)
Red (motor)

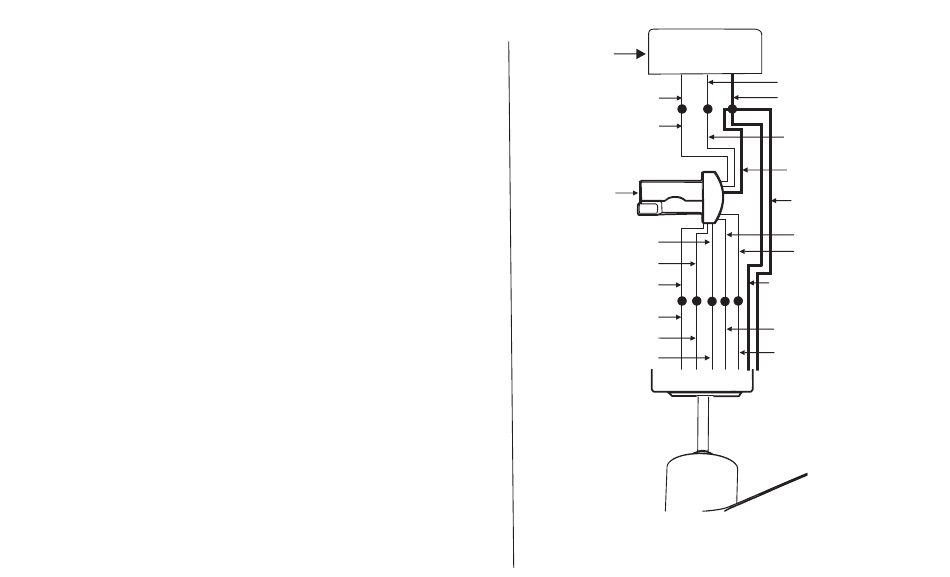

FIGURE 13
White (neutral)
Green (Ground)
White ("AC IN N")
Green (Ground)
Green (Ground)
White (for light)
Blue (for light)
Green (Ground)
White (for light)
Blue (for light)
