6. HANGING THE FAN (cont.)

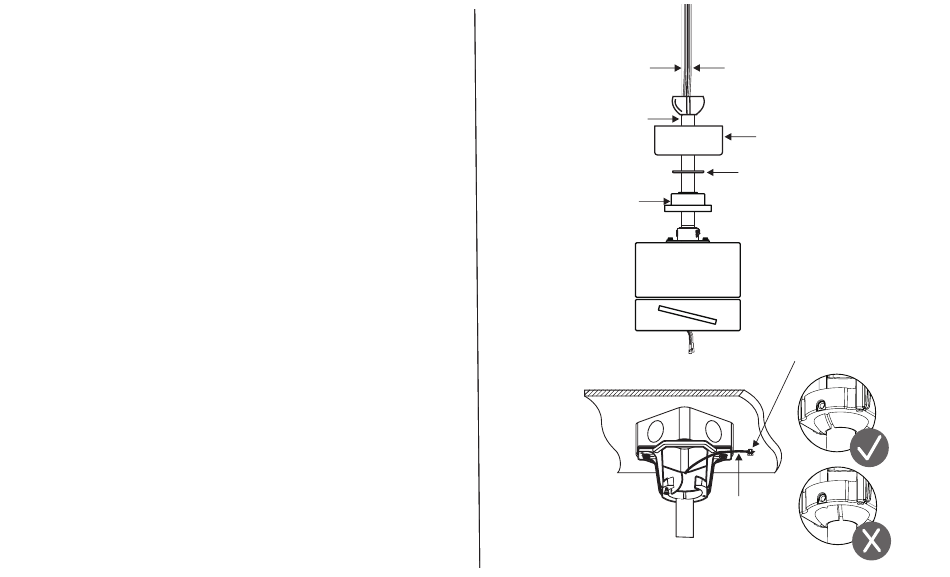

1. Slip the coupling cover, canopy screw cover (painted side face
down), and canopy (opened side up) onto the downrod. (Fig. 10).
Coupling cover goes all the way to the bottom.
2. Carefully reinstall the hanger ball onto the downrod, being sure
that the cross pin is in the correct position, the setscrew is
tightened and wires are not twisted. (Fig. 10)
3. Carefully lift the fan motor assembly up to the mounting bracket
and seat the hanger ball in the mounting bracket socket.
Make sure the tab on the mounting bracket socket is properly
seated in the groove in the hanger ball. (Fig. 11) Rotate the socket
assembly until the ball drops and locks into the hanger bracket
screw.
4. Secure the safety cable to the building structure using a wood
screw (not included). (Fig. 11)
FR -W 1 8 0 3
Motor Wires
Downrod
Coupling Cover
Safety Cable
FIGURE 11
Safety Cable
Canopy
Canopy screw
cover
FIGURE 10
Wood Screw
