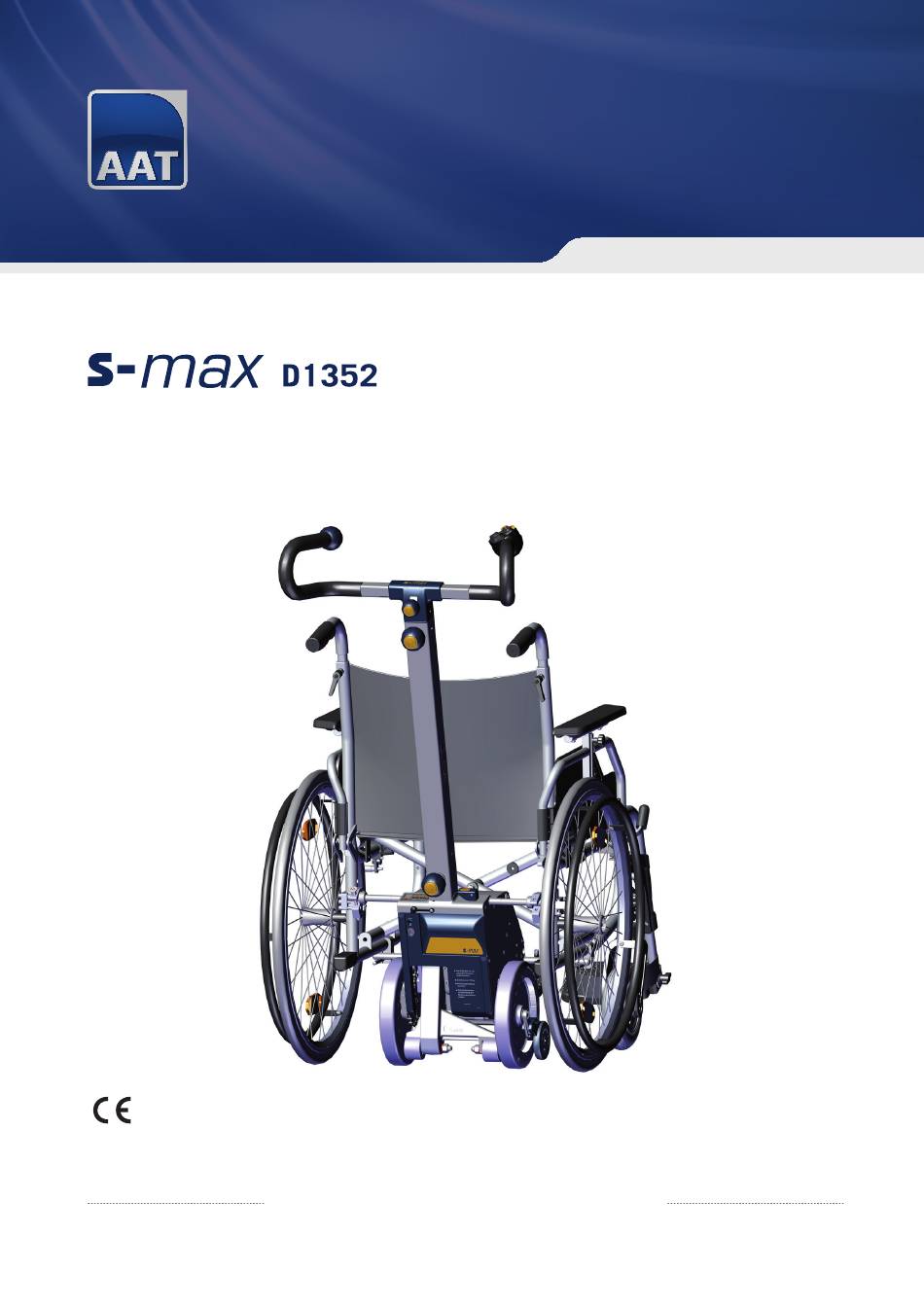

- Page 1 Ideen bewegen mehr www aat-online de Translation of the original user manual 2023-02 (4.1)
- Page 2 Spare parts Showroom & exhibition devices With our professional service concept Repair processing Re-use we at AAT prove once again our high claim of quality and off er our clients an Technical information Complaints all-inclusive package.
- Page 3 On our homepage, you will also fi nd all safety-related changes which have been made to the user manual. These versions with details of the production period of the product are obtainable at: www aat-online de/de/bda/s-max...
-
Page 4: Table Of Contents
Table of Contents Symbols and safety instructions Explanation of the symbols on the packaging Explanation of the symbols on the device Product description Device overview ..........9 Overview of type plate incl. -
Page 5: Symbols And Safety Instructions
(e.g. anti-theft devices). Stability tests were performed under laboratory conditions. The s-max may behave differently under real conditions compared to laboratory tests. Training may only be carried out by the manufacturer, the AAT field staff or the qualified specialist shop. -
Page 6: Explanation Of The Symbols On The Packaging
CAUTION External heat sources may cause the surface temperature to rise (e.g. sunlight)! Do not touch the affected surfaces in this case to avoid burns! WARNING Never reach into rotating/moving parts to avoid crushing. DANGER The s-max must not be operated in the case of severe visual impairment and/or blindness! Do not exceed the total permissible weight and the max. -
Page 7: Explanation Of The Symbols On The Device
Position: Type plate Indicates the year the medical device was manufactured. 20XX Manufacturer Position: Type plate Shows the manufacturer of the medical device (AAT Alber Antriebstechnik GmbH) Position: Type plate Serial number of the product e.g. D1352XXXXXX Medical Device Position: Type plate... - Page 8 Adhesive label UP/DOWN Position: UP/DOWN switch on the control panel Refers to the direction of travel (refer to chapter “Climbing stairs upwards and downwards”)
-
Page 9: Product Description
Product description 4.1 Device overview... - Page 10 Manufacturer’s information: For a simplifi ed assignment of the individual components, the numbers listed here are cited in full for the fi rst time in the following chapters. Control panel Handle, height-adjustable ON/OFF switch UP/DOWN switch Speed control Safety chip Locking knob for transverse adjustment Locking knob for height adjustment Stanchion tube...
-
Page 11: Overview Of Type Plate Incl. Serial Number
4.4 Intended patient population The intended patient population includes all persons who are able to sit independently and have a maximum body weight corresponding to the technical specification of the respective model and variant (max. 115 kg for the s-max D1352). -
Page 12: Medical Requirements And Indication
4.5 Medical requirements and indication The patients must be able to sit independently. Secure persons who cannot sit upright unaided with belts (refer to accessories) to prevent the occupant from falling out! The manually guided stair climber assists the accompanying person while transporting the patient in the wheelchair over stairs or slopes, upwards and downwards. -
Page 13: Technical Data
WARNING - Do not exceed the total permissible weight and the max. person weight, as this may lead to defects or overload the s-max! NOTE - Observe the technical data. Technology s-max D1352 Dimensions Refer to chapter "Dimensional drawing" Climbing unit = 16.1 kg Handle unit = 3.1 kg... -
Page 14: Dimensional Drawing
4.9 Dimensional drawing s-max D1352 Normen im Zeichnungs Toleranzen Werkstück- Rauheit DIN ISO 2768-1-m / DIN ISO 2768-2-m kanten DIN ISO 13715 Reihe 3 RoHS & REACH Co DIN ISO 1302 >0,5-6 ±0,1 Revision -0,3 >6-30 ±0,2 Maßstab >30-120 ±0,3... -
Page 15: Scope Of Delivery
4.10 Scope of delivery Climbing unit Handle unit Battery pack with charging electronics and safety lock Charger incl. instructions 4.11 Accessories NOTE - Only use AAT Alber Antriebstechnik GmbH accessories. + 15 mm Anti-tip supports Bracket Charging cable for vehicle Climbing height extension... -
Page 16: Assembly
WARNING - The handle unit must be securely fixed with the locking screw so that it is safely joined to the climbing unit! WARNING - The climbing unit mount may only be adjusted by the manufacturer, the AAT field service or an authorised specialist dealer! A 9-pin sub-D coupling in the receptacle provides the electrical connection. -
Page 17: Starting Up
Starting up NOTE - To avoid malfunctions or defects, store the s-max in a frost-free environment for at least one hour prior to start-up. NOTE - Press UP/DOWN switch only a few seconds after switching on! 6.1 Adjusting the handles to the correct height WARNING - The handle must have been securely fixed with the locking screw so that the handle adjustment does not change directly! CAUTION - Pay attention to the pinch point at the groove opening to avoid injuries! -
Page 18: Switching On The Device
6.3 Switching on the device Insert the safety chip for the Switch the s-max on via the ON/OFF switch immobiliser. » The safety chip must snap 6.4 Neutral position Move the climbing leg to Correct. Incorrect! neutral position by keeping UP/DOWN switch pressed. -
Page 19: Checking The Safety Brakes
DANGER - If there is only a one-sided braking eff ect or no braking eff ect at all, do not use the s-max, to avoid falling from the stairs. Notify the manufacturer, the AAT fi eld service, or the authorised specialist dealer! -
Page 20: Comfortstep
6.7 ComfortStep NOTE - If an adjustment of the step height is to be made, please contact the AAT fi eld service or an authorised specialist dealer! Manufacturer’s information: Each time the device is switched on again, the memory function plays... -
Page 21: Attaching The S-Max To The Wheelchair
NOTE - In order to operate the wheelchair with the s-max, the wheelchair must be equipped with a bracket. The mounting system is fitted by authorised specialist dealers, AAT Alber Antriebstechnik GmbH or the AAT field service. On the s-max there is an There are adjusting rings upper and a lower mount. -
Page 22: Introducing The S-Max Into The Lower Wheelchair Bracket
7.1 Introducing the s-max into the lower wheelchair bracket To prevent the wheelchair Retract the climbing leg of the Tilt s-max slightly from rolling away, activate the s-max completely. backwards move wheelchair's parking brakes. towards the centre of the back of the wheelchair. Push the s-max forwards until the lower mount is fully inserted into the lower bracket... -
Page 23: Fixing The S-Max To The Wheelchair
When the rod has been fully Release UP/DOWN inserted into the bracket, the switch when the wheelchair wheelchair is also lifted. wheels are approx. 1 cm off the ground. 7.3 Fixing the s-max to the wheelchair Pick up one of the securing Insert the securing pin into Repeat process on the other pins (Quick-Pin) and push in... -
Page 24: Removing The S-Max From The Wheelchair
7.5 Removing the s-max from the wheelchair Press the UP/DOWN switch Release the UP/DOWN switch Attach the wheelchair wheels in the UP direction so that as soon as the wheelchair is and apply the parking brake. climbing moves raised far enough to mount backwards and downwards in the wheelchair wheels. -
Page 25: Operation
Operation DANGER - Operation only by a trained person who is physically and mentally capable of operating the s-max safely! DANGER - Do not allow any persons to stay in the danger zone underneath the s-max! DANGER - Check the safety brakes before each use! (Refer to chapter 6.5) WARNING - Wear anti-slip footwear to avoid slipping on the stairs. -
Page 26: Occupant Taking A Seat
8.1 Occupant taking a seat WARNING - The arms must not protrude over the armrests to avoid possible injury! Switch the s-max on via the Secure stand of the s-max After the occupant has ON/OFF switch. Operate UP/DOWN taken seat, ensure that he/ switch in the UP direction. -
Page 27: Moving On Level Ground / Overcoming Obstacles
8.2 Moving on level ground / overcoming obstacles NOTE - The climbing leg must not have been extended, otherwise it could be damaged! NOTE - Do not overcome obstacles forwards, otherwise the safety brakes will be damaged! Adjust the neutral position Moving on level ground. -
Page 28: Moving On Slopes
8.4 Moving on slopes WARNING - For safety reasons, a second person should be present to help steer! NOTE - Be sure to observe the safety instructions in chapter 8! If necessary, pull the handles Tilt the s-max. The climbing leg must be out to shoulder height and fix »... -
Page 29: Climbing Stairs - Upwards
8.5 Climbing stairs - Upwards NOTE - It is mandatory to observe the safety instructions in chapter 8! Adjust neutral position. Tilt the s-max and keep it Approach the step backwards » The climbing leg must be balanced. until wheels are in contact. completely retracted. -
Page 30: Climbing Stairs - Downwards
8.6 Climbing stairs - Downwards NOTE - It is mandatory to observe the safety instructions in chapter 8! DANGER - As soon as the climbing leg starts taking the load you will feel the handles pulling. Tilt the s-max closer to the ground to counteract! Adjust neutral position. -
Page 31: Laying Down On Stairs / Emergency Stop Function
8.7 Laying down on stairs / emergency stop function Lay down the s-max » The safety brakes prevent it Emergency stop function from rolling away! If a hazardous situation occurs, proceed as follows: » Press and hold the UP/ » 1 - Release the UP/DOWN switch DOWN switch until the »... -
Page 32: Transportation
Conformity Care and maintenance WARNING - Repairs and technical safety tests are performed by the manufacturer, the AAT fi eld staff or the authorised specialist shop! (Refer to chapter 9.5) WARNING - Opening the housing of the s-max may only be performed by the manufacturer, the... -
Page 33: Battery And Charger
9.1 Battery and charger CAUTION - Protect from moisture and do not touch with wet hands to avoid electric shocks and defects! NOTE - Charge the batteries after each use. NOTE - Protect the charger and voltage converter against oils, greases, aggressive cleaning agents, thinning agents or damage. - Page 34 Note by the manufacturer: The charger automatically changes over to trickle charge mode once the battery pack is fully charged. To compensate for the self-discharge of the battery, the purpose of the trickle charge mode is to keep the batteries in a fully charged state. The LED is lit green during the trickle charge mode.
-
Page 35: Checking Brake Linings And Climbing Feet Linings
NOTE - Minimum lining thickness of the brake linings = 1 mm - If below this value or damaged, inform the manufacturer, the AAT field service or authorised specialist dealer! NOTE - If a lining is worn or damaged, both climbing feet rollers must be replaced by the... -
Page 36: Cleaning And Disinfection
9.3 Cleaning and disinfection WARNING - No moisture must be allowed to enter the interior of the device! This may result in electric shocks! Use only damp cloths for cleaning the device’s surface! Never use wet cloths! WARNING - Test all safety-relevant functions after cleaning! WARNING - Do not smoke during cleaning! NOTE - Keep the stair climber away from sources of ignition! NOTE - Clean the safety brakes in the rims weekly or with spirit when dirty! Observe the... -
Page 37: Replacing Fuses
Replacement fuses are available from the manufacturer! NOTE - If the fuse blows frequently, contact the manufacturer or an authorised specialist dealer! NOTE - Only fuses purchased from the specialist dealer or AAT may be used as replacement fuses! Battery pack fuse... - Page 38 For more information, please visit: www.aat-online.de 9.6 Reuse (change in operator) The term reuse is used when the AAT product of patient X is to be used for another patient Y. Please contact the manufacturer, the AAT field staff or the authorised specialist shop.
- Page 39 Switch on the s-max. The LED is flashing. Switch off the s-max. » Observe fault conditions! Switch the s-max on again » The LED is flashing - Notify the manufacturer, the AAT field service, or the authorised specialist dealer!
- Page 40 The s-max cannot be Yes: Charge the batteries. switched on Does the problem persist? Yes: Notify the manufacturer, the AAT field service, the authorised spe- cialist dealer. Safety chip inserted? The s-max does not move Yes: Notify the manufacturer, the AAT field service, the authorised spe- cialist dealer.
- Page 41 » The s-max was loaded in excess of the permissible total weight or the max. person weight. » The s-max has not been serviced regularly (every 2 years) by the manufacturer, the AAT field service or an authorised specialist dealer.
- Page 42 Notes:...
- Page 43 Ideen bewegen mehr EU Declaration of Conformity AAT Alber Antriebstechnik GmbH · Postfach 10 05 60 · D-72426 Albstadt · Tel.: 0 74 31.12 95-0 · Fax: 12 95-35 · www.aat-online.de · info@aat-online.de Translation of the Original EU Declaration of Conformity...
- Page 44 AAT Alber Antriebstechnik GmbH Postfach 10 05 60 72426 Albstadt · Germany Phone: +49.(0) 74 31.12 95-0 Fax: +49.(0) 74 31.12 95-35 info@aat-online.de · www.aat-online.de Serial number:...
