Lectrosonics WM/E02 Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Q
uick
S
tart
G
uide

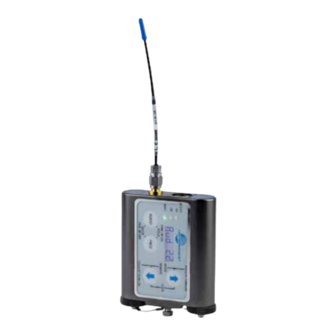

Digital Hybrid Wireless®
Watertight Belt-Pack Transmitter
WM, WM/E01, WM/E02, WM/X
Fill in for your records:
Serial Number:
Purchase Date:
Digital Hybrid Wireless
U.S. Patent 7,225,135
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a complete instruction manual,
visit and download at:
www.lectrosonics.com/manuals
®
9 October 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM/E02 and is the answer not in the manual?

Questions and answers

Related Manuals for Lectrosonics WM/E02

Summary of Contents for Lectrosonics WM/E02

  • Page 1 Digital Hybrid Wireless® Watertight Belt-Pack Transmitter WM, WM/E01, WM/E02, WM/X Digital Hybrid Wireless ® U.S. Patent 7,225,135 Fill in for your records: This guide is intended to assist with initial setup and operation of your Serial Number: Lectrosonics product.

  • Page 2: Controls And Functions

    When the transmitter is in SLEEP mode, the LED blinks green every few seconds. Audio Input Jack This is a threaded locking connector that accepts the Lectrosonics watertight WP con- nector. Battery Compartments and Thumb Screws The large knurled thumbscrews retain the batteries and maintain solid battery contact.
  • Page 3 The FREQ button displays the selected operating frequency and also toggles the LCD between displaying the actual operating frequency in MHz and a two-digit hexadecimal number that corresponds to the equivalent Lectrosonics Frequency Switch Setting. This button is also used with the AUDIO button to enter standby mode and to power the transmitter on or off.

  • Page 4: Battery Compartments

    The recess in the opening retains the O-ring when the plug is tightened. The Lectrosonics M152WP lavaliere microphone is supplied with the WP plug already installed. Other microphones can also be terminated...

  • Page 5: Power Down

    Loc reminder that the controls are locked. Once the transmitter is locked, it cannot be unlocked or powered off using the buttons. The only ways to unlock a locked transmitter are to remove the batteries or unlock it via the RM remote control. www.lectrosonics.com...

  • Page 6: Compatibility Mode

    • CP 200: 200 Series mode • CP 3: Mode 3 (contact the factory for details) NOTE: If your Lectrosonics receiver does not have Nu Hybrid mode, set the receiver to Euro Digital Hybrid Wireless® (EU Dig. Hybrid). Input Type • LInE: Bias turned off;...

  • Page 7: Remote Control

    When the audio mute function is enabled and the unit is turned on and transmitting, only the audio level (input gain) can be adjusted by holding the AUDIO button in for a few seconds. www.lectrosonics.com...

  • Page 8: Audio Button Settings

    If the unit was set up in “standby” mode, it will be necessary to turn the transmitter off, then power it up again in normal operation so the RF output will be on. Then the other components in the sound or recording system can be adjusted. LECTROSONICS, INC.

  • Page 9: Freq Button Settings

    “standby” or when the transmitter is powered up in the normal operating mode. Hex Code The hexadecimal numbering system is unique to Lectrosonics where two alphanumeric characters correspond to the left and right switch settings on earlier analog transmitters that had mechanical rotary switches to adjust frequency.

  • Page 10: Re-Conditioning (Drying Out) The Caps And Desiccant Beads

    AC supply without being a huge drain on the batteries. The color of the desiccant beads can be observed by shining a pen light on one edge of the battery cap to illuminate the desiccant. Ideally, they will be an amber/orange color at room temperature. LECTROSONICS, INC.

  • Page 11: Replacement O-Rings

    The desiccant beads are silica gel grade 52, manufactured by a US Company named ADCOA under part number SG52002. Large containers can be purchased from ADCOA, and small quantities are available from Lectrosonics. Contact Lectrosonics or search online for adcoa.net for details.

  • Page 12: Limited One-Year Warranty

    This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.

This manual is also suitable for:

Wm/e01WmWm/x
