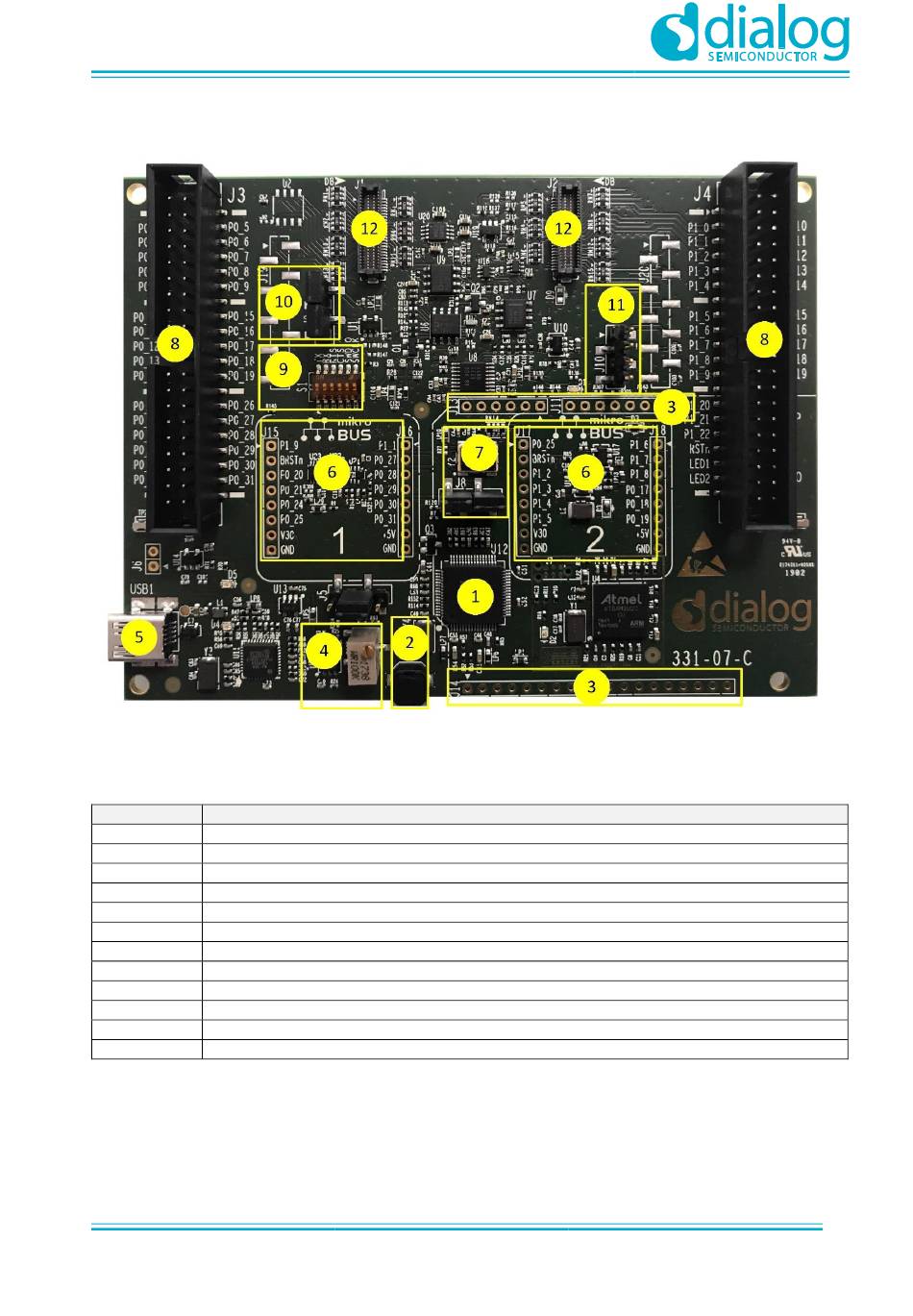

Figure 2: The Da14695 Prodk Dk; Table 1: The Da14695 Prodk Main Elements - Dialog Semiconductor DA14695 ProDK User Manual

UM-B-090
DA1469x Getting Started Guide with the Development Kit

Table 1: The DA14695 ProDK main elements

Reference Description
1 U12: FTDI Chip
2 User button (K1)
3 Arduino sockets
4 Trimmer to define the adjustable LDO voltage (R127)
5 USB connector for power and communication interface
6 sockets
7 (J8.1-2) for enabling user button and (J8.3-4) for Software trigger header
8 Signal/Power breakout headers (J3, J4): Refer to
9 DIP switch (S1) connecting the debugging interface signals (JTAG/UART)
10 (J9.1-2: Input) and (J9.3-4: Output) for Header for current measurement circuit
11 LRA/ERM interface header
12 J1/J2 Daughter Board connectors
User Manual
CFR0012

Figure 2: The DA14695 ProDK DK
