DA1469x Getting Started Guide with the Development Kit
DA1469x – The hardware
5
The Pro Development Kit (ProDK) consists of a main board (MB-PRO) DA14695-00HQDEVKT-P and
a DA14695-00HQDB-P daughter board featuring DA14695 SoC of the desired package (BGA100). A
DA14699-00HRDB-P daughter board is also available. More details about the DA1469x products
family is shown in
Figure
5.1

The ProDK main board

Figure 2
illustrates the physical layout of the ProDK. The daughter board containing DA14695 device
is shown in
Figure
4.
The ProDK main board provides all necessary hardware to enable:
Full functional verification of the DA14695 family of products with the ability to take precise power
measurements by isolating the DA14695 device.
Full digital connectivity with external hardware using UART, SPI and I2C.
USB based debugging capabilities using the SEGGER J-Link on-board debugger for Cortex M33.
USB based UART communication with the host PC using a Future Technology Devices
International (FTDI FT2232H) chipset which converts UART to USB.
User Manual
CFR0012
1.

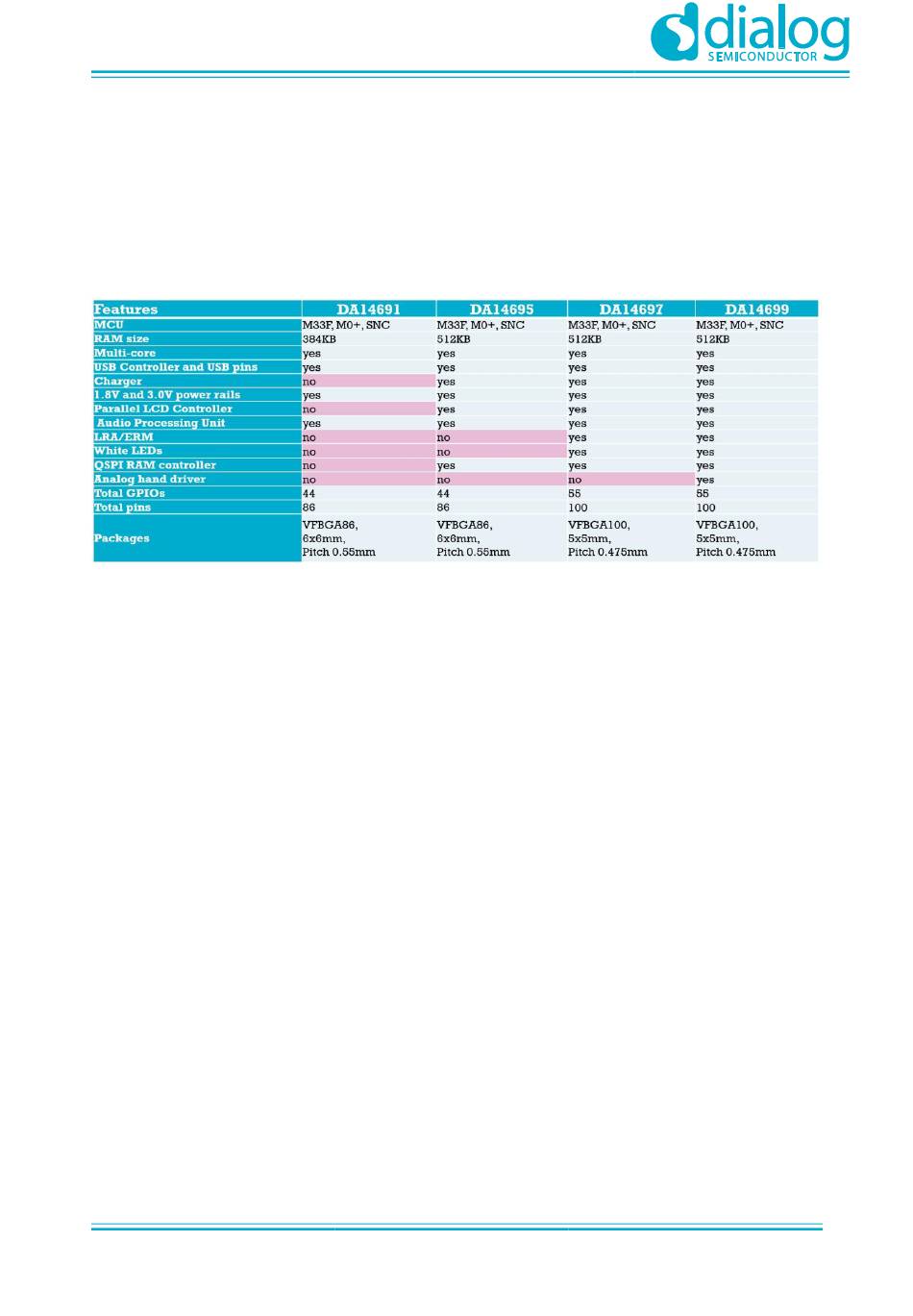

Figure 1: The DA1469x Product Family

Revision 1.0
7 of 46
24-Feb-2019
© 2019 Dialog Semiconductor
