Manosplint
Dry Heat Oven
®
Before use, please read this document.
User manual
EN
Kinetec SAS reserves the right to effect technical modifications.
The English version is a translation of the original in French. In case of a discrepancy, the
French original will prevail.
IFU-Dry-Heat-Oven-467896391-1
10/2017
Série 1
Notice Originale
Advertisement
Table of Contents
Related Manuals for Kinetec Manosplint Dry Heat Oven
Summary of Contents for Kinetec Manosplint Dry Heat Oven

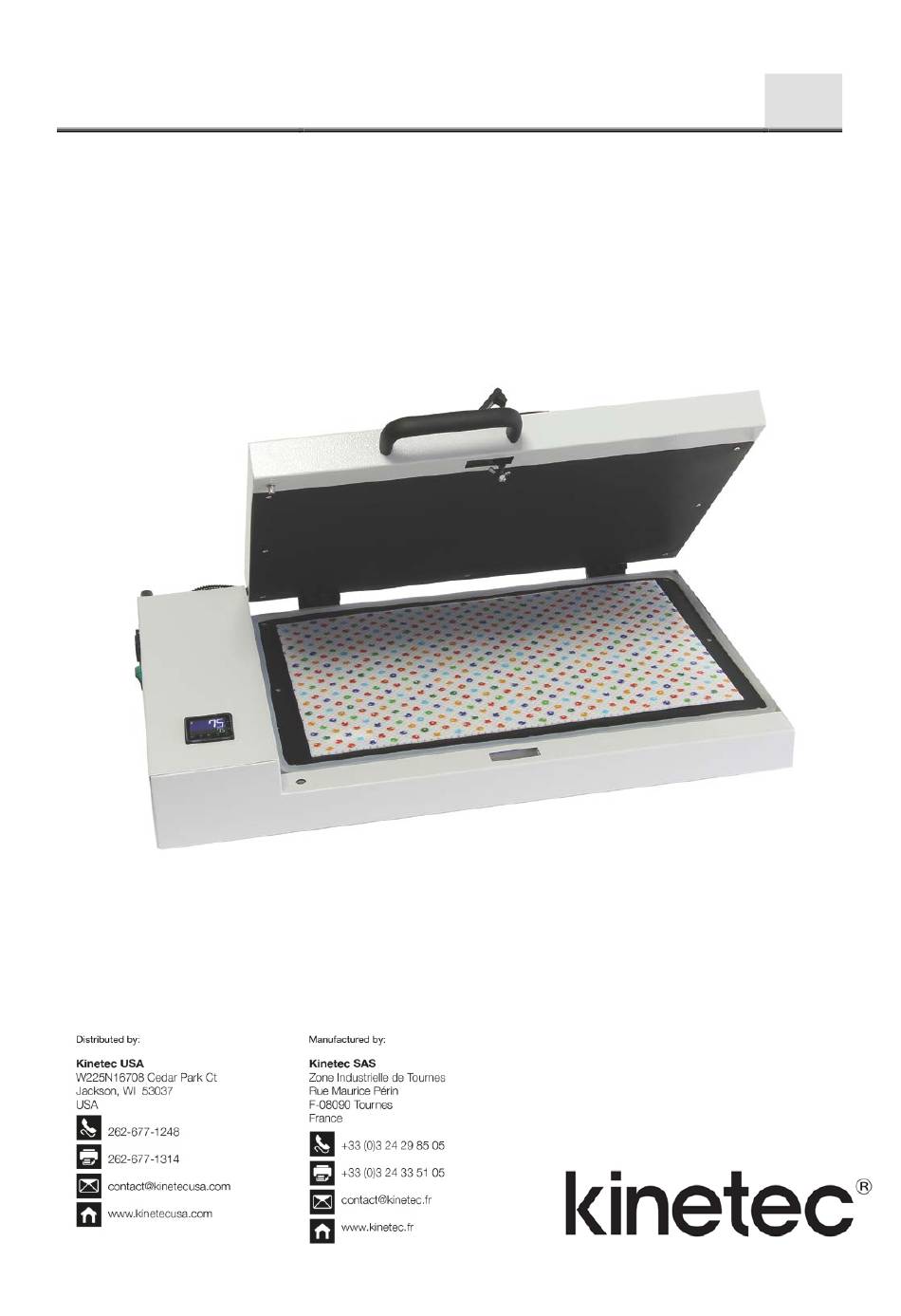

- Page 1 ® Before use, please read this document. User manual Kinetec SAS reserves the right to effect technical modifications. The English version is a translation of the original in French. In case of a discrepancy, the French original will prevail. IFU-Dry-Heat-Oven-467896391-1 10/2017 Série 1...
-
Page 3: Table Of Contents
Summary Preamble ..............................2 Important safety instructions ........................2 Introduction ............................... 3 Conformity ..............................3 Unpacking ..............................3 Installing the device ........................... 3 Description ..............................4 Electrical connection ..........................5 Manual ............................... 5 Cleaning..............................11 Disposal and recycling ..........................11 Guide de dépannage .......................... -
Page 4: Preamble
Before transporting or storing, check that the device is cold. • Non-stick surfaces become hot during operation. Never touch hot parts. Keep children away. • For assistance in mounting, operating or maintaining the device, contact your KINETEC® distributor. • Modifying the device in any way is strictly forbidden. •... -
Page 5: Introduction

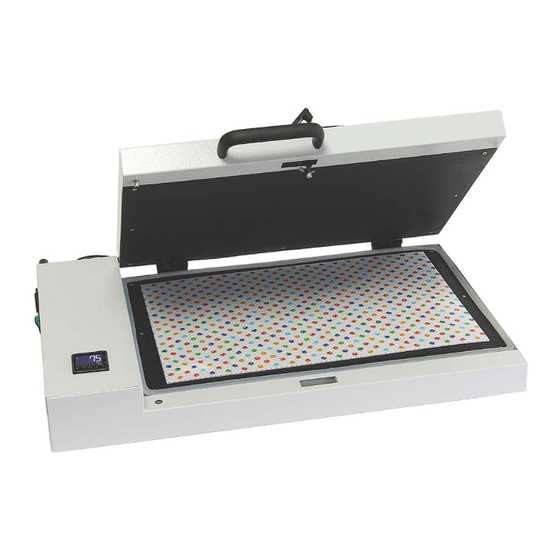

Introduction The Manosplint® dry heat oven is designed to heat thermoplastic materials at low temperature. Its compact design and waterless rapid heating technology make it the ideal companion for therapists who need a fast, hygienic and efficient method of heating. Equipped with non-stick surfaces, the thermoplastic materials can be positioned in direct contact with the heating surfaces. -
Page 6: Description
Description The Manosplint® dry heat oven is composed of: 1. Display of the current temperature and setting of the target temperature 2. Handle for transporting and opening the top cover 3. Locking system of the top cover 4. Top cover 5. -
Page 7: Electrical Connection
Electrical connection Connect the power supply cable into the IEC connector (5). • Before connecting the device, check that the mains voltage matches the marking plate (8) (100-120V~ or 220-240V~ 50-60Hz) on the side of the device. • Only use the original cable supplied with the device. •... - Page 8 It is possible to set the target temperature digit by digit. See method below. Press the key (11), the rightmost digit flashes, Press the keys (12) or (13) to change the value, Press the key (11), the next digit flashes, Press the keys (12) or (13) to change the value, To memorize the new target temperature, press the key (10) or wait a few moment.
- Page 9 4. Open the top cover using the handle (2). Note: the Manosplint® dry heat oven is equipped with hinges with stops to keep the top cover in the open position. 5. Place the thermoplastic material in the center of the unit and close the top cover. Note: the Manosplint®...
- Page 10 6. Close the top cover using the handle (2) then lock the cover by pressing the lever (17). 7. Wait a few minutes for the thermoplastic material to be ready for use. Heating time: between 2 and 6 minutes depending on thickness and size of the thermoplastic material. Note: Manosplint®...
- Page 11 9. Open the top cover using the handle (2). 10. Carefully remove the thermoplastic material. Notes: We recommend wearing gloves to remove the thermoplastic material after heating. Place the materials on a wet towel for about 20 seconds before the next step to avoid burning patients. 11.
- Page 12 12. After use, turn off the power using the ON/OFF switch (7) and unplug the power cord. 13. Leave the Manosplint® dry heat oven in the open position for a few minutes to allow the unit to cool down. Before transporting or storing, check that the device is cold. •...
-
Page 13: Cleaning
Kinetec SAS for destruction. Or contact the local authorities to determine the appropriate method of disposal for parts and accessories that are potentially hazardous to the environment. -
Page 14: Technical Specifications
Technical specifications Device Dimensions: 650 x 475 x 90mm Dimensions of the heating surface: 480 x 320mm Weight: 10,6kg Electricity Power supply: 100-120V~ ±10% or 220-240V~ ±10% Surge category: Frequency: 50-60Hz Fuses: T 16A – 250V – 6,3x32mm (VDE) T 16A – 500V – 6,3x32mm (USA / Canada) Power: 1500W Environment... - Page 16 Distributed by: Manufactured by: Kinetec USA Kinetec SAS W225N16708 Cedar Park Ct Zone Industrielle de Tournes Jackson, WI 53037 Rue Maurice Périn F-08090 Tournes France 262-677-1248 +33 (0)3 24 29 85 05 262-677-1314 +33 (0)3 24 33 51 05 contact@kinetecusa.com contact@kinetec.fr...
