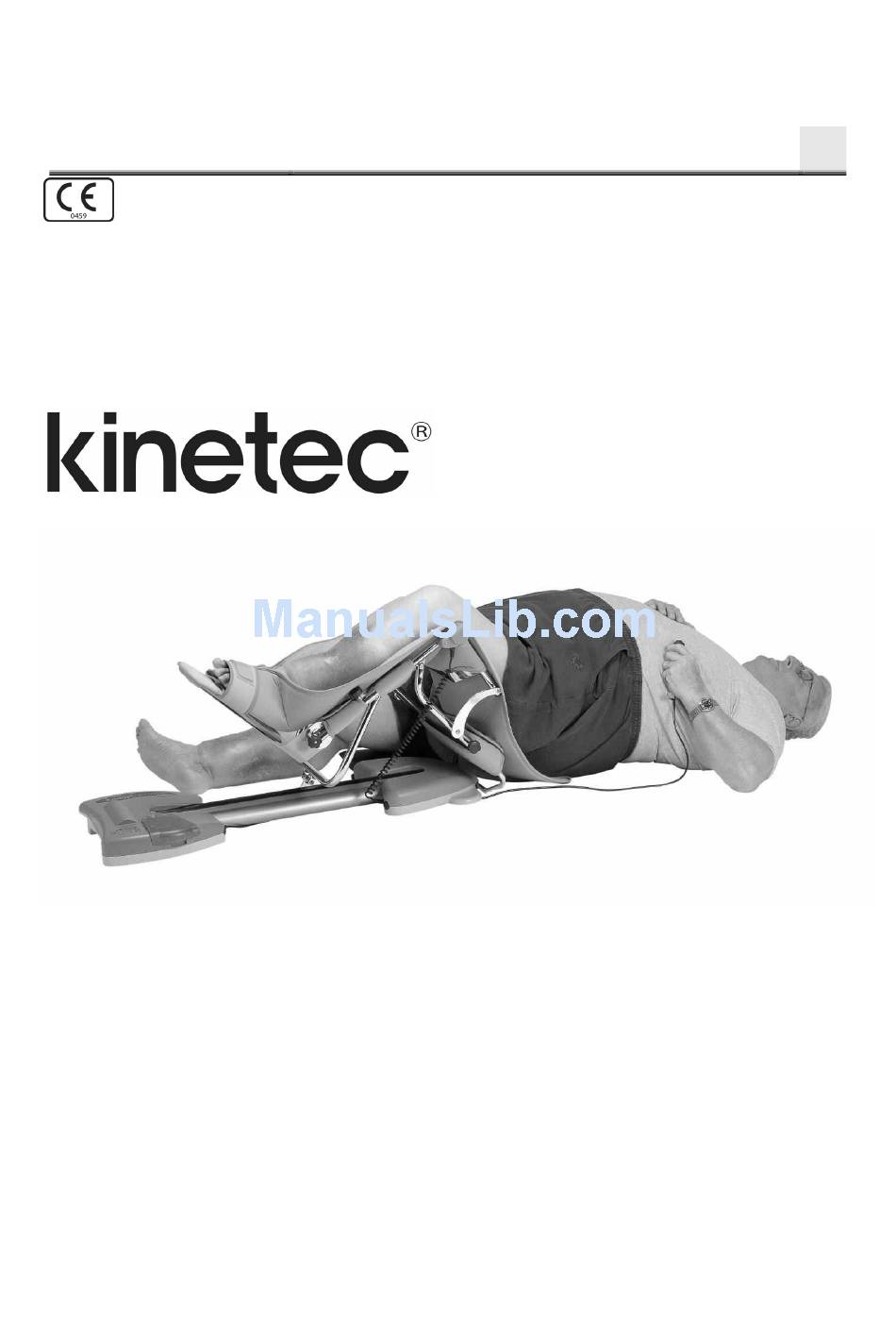

- Page 1 Kinetec Prima XL™ Before use, please read this document. User manual Kinetec SAS reserves the right to effect technical modifications. 467896317 – 03/2015 Série 2 Notice Originale...
-
Page 2: Table Of Contents
• Setting the FLEXION and EXTENSION limits ______________________________________ 5 • Setting the SPEED _____________________________________________________________ 5 • Using the Plastic Comfort Case kit ______________________________________________ 6 • Using the Kinetec Patient Pad kit _______________________________________________ 6 • Setting up the patient _________________________________________________________ 7 • Options ______________________________________________________________________ 7 •... -
Page 3: Definition
Definition The device Kinetec Prima XL™ is a PASSIVE KNEE mobilization device enabling extension and flexion movements from -5° to 115°. Indications Clinical Benefits Arthroplasties of the knee and hip joints. • Breaks the cycle of trauma, inflammation and the loss •... -
Page 4: Compliance
- Move the foot plate back into its packing position. Installing the device The device Kinetec Prima XL™ machine is designed to be used in hospitals, clinics, doctors' offices or in private homes (rental). The machine must be installed on a flat surface that is wide enough to accommodate the entire device plus the other leg. -
Page 5: Description
14 • Control panel protective cover. Electrical connection: safety first The device Kinetec Prima XL™ is a type BF class II device. Before connecting the device to the power supply, check that the mains voltage matches that shown on the identification plate (100-240V~ 50/60Hz). -
Page 6: Start/Stop/Reverse Function
START / STOP / REVERSE function As with all KINETEC ® systems, the device Kinetec Prima XL™ is equipped with a START/STOP/REVERSE function. First, press the hand control switch; the machine stops. Press the hand control switch again; the mobilization reverses. -
Page 7: Using The Plastic Comfort Case Kit
Laboratories. A complete list of distributors in your country is available on request. The complete Patient Pad kit comprises: - Set of 4 straps: 4650001107 - Foot support: 4650001131 - A mattress : 4650001834 Sponge side Kinetec Prima XL™ 6/11... -
Page 8: Setting Up The Patient
(18) with the axis of articulation (19) of the unit. Options Trolley for all CPM Cart for bed use Seat adaptor Part number to order: Part number to order: Part number to order: 4655001053 4665003297 4670024098 Kinetec Prima XL™ 7/11... -
Page 9: Maintenance
When the machine is switched on the LED blinks 5 times to indicate that the service interval has been reached. Despite this warning, you can continue to use your Kinetec Prima XL™ by pressing the hand control switch, but you should contact your nearest KINETEC ®... -
Page 10: Technical Specifications
Kinetec SAS is the only organization able to assess the application of the warranty to its systems. The warranty will be considered null and void if the device has been used abnormally or under conditions of use other than those indicated in the user's manual. -
Page 11: Guidance And Manufacturer's Declaration
Kinetec Prima XL™ machine's immunity. WARNING: the device Kinetec Prima XL™ should not be used next to other appliances. If the device Kinetec Prima XL™ must be used next to other appliances, it should be under constant supervision to check that it is working normally in the given configuration. - Page 12 Guidance and manufacturer’s declaration – Electromagnetic immunity The device Kinetec Prima XL™ is intended for use in the electromagnetic environment specified below. The customer or the user of the device Kinetec Prima XL™ should ensure that it is used in such an environment.
