- Page 1 Breva Before use, please read this document. User manual Kinetec reserves the right to effect technical modifications. 467896290 – 07/2014 Série 1-2-3 Notice Originale Distributed by : Manufactured by: ...
-
Page 3: Table Of Contents
11.13. To define the patient tolerance • At the start of a session ....... 13 11.14. To define the patient tolerance • During the session ........13 12. Using the device KINETEC Patient Pad kit ..................14 13. Possible movements ......................... 15 ... -
Page 4: Definition
1. Definition The device KINETEC Breva is a PASSIVE mobilisation device for the rear foot and allows the ® following movements: Plantar Flexion / Dorsiflexion Eversion / Inversion 2. Indications Passive mobilization of the following fractures after osteosynthesis: Malleolar fractures,... -
Page 5: Warning And Safety Instructions
See the table on page 20. 6. Compliance The device KINETEC Breva complies with the standards of Directive 93/42/EEC, and bears the ® EC mark. The device KINETEC Breva complies with the standards in force (IEC 60601-1-2) concerning the ®... -
Page 6: Unpacking And Packing
® or in private homes (rental). The Breva machine can be used with a physiotherapy table, a healthcare bed, a bed or a chair. The machine must be installed on a flat surface that is wide enough to accommodate the entire device plus the other leg. -
Page 7: Description

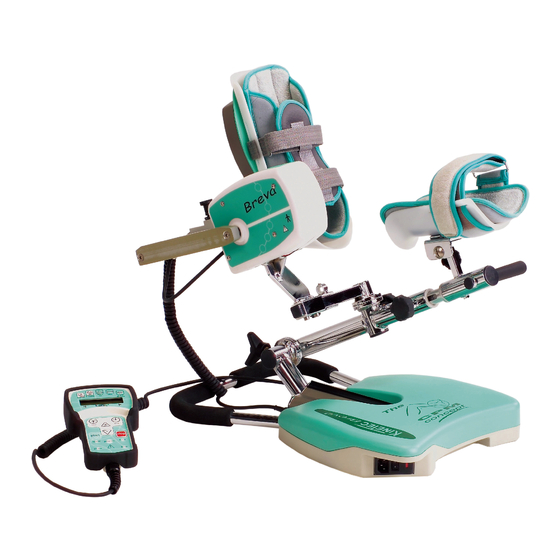

9. Description The device KINETEC Breva is a portable, one-piece device. ® It consists of the following components: 1 • Calf support 2 • Calf support setting lock 3 • Lower limb setting lock 4 • Motor position setting lock 5 •... -
Page 8: Electrical Connection: Safety First
10. Electrical connection: safety first. 2 versions of electrical protection are available for the device KINETEC Breva ® machine. The identification label shows which version a machine is equipped with: Type BF, Class II devices, for home use, bear the following symbols:... -
Page 9: Start / Stop / Reverse Function
11.3. START / STOP / REVERSE function As with all KINETEC systems, the device KINETEC Breva is equipped with a START/STOP/REVERSE ® function. Press the key of the hand control. The movement stops, Press the key of the hand control. The movement starts in the opposite direction. -
Page 10: Quick Start
To confirm the new value press another key or PL/FLEX PL/FLEX The unit is ready to start with the new wait more than 3 seconds. The display shows 20 STOP parameters. the selected mode Comments: The values in the display column are given as an example. Breva 8/20... -
Page 11: Program Mode: To Enter A Program
Display Remarks press To switch off the unit KINETEC Press the 2 keys at the same time and switch Welcome text displayed for 3 BREVA V01.0 the unit ON seconds Program 1 Then The program number blinks. EMPTY Program 10 To change the program if necessary The new program number blinks. - Page 12 Comments Program • When a program has been deleted, the display shows EMPTY Program table: Breva 10/20...
-
Page 13: Using Programs
11.10. Using Programs The device KINETEC Breva allows you to store up to 16 programs (numbered 1 to 16), including ® the type of movement, ROM, speed, force, pauses and timer. The original parameter values of the program are empty. These values can be modified and saved at any time (see ‘To enter a program’, page 9) -
Page 14: To Use The Warm Up Key
10 RUN 10 10 current movement. Warm Up rules. The device KINETEC Breva starts at 70% of the full ROM, increasing 5% of the range each full cycle ® until the pre-set ROM is reached. Note: - The parameters should only be modified while the unit is stopped. -
Page 15: To Define The Patient Tolerance • At The Start Of A Session
Set up the patient and proceed as below: Keys to Beginning Display Remarks press KINETEC BREVA V01.0 PL/FLEX DOR/FLEX Switch the unit ON Please wait PL/FLEX DOR/FLEX STOP EV RIGHT INV 10 STOP 18 18... -
Page 16: Using The Device Kinetec Patient Pad Kit
12. Using the device KINETEC Patient Pad kit The device KINETEC Patient Pad Kit is designed for rapid fitting, optimal hygiene and maximum patient comfort. - Please refer to the instructions below for using and positioning the straps. FOR OPTIMAL HYGIENE, A NEW SET OF PADS SHOULD BE USED FOR EACH PATIENT. -
Page 17: Possible Movements
13. Possible movements 13.1. Extension / Flexion The device KINETEC Breva provides movements from 40° of plantar flexion to 30° of dorsiflexion. ® Loosen the button (4). Position the Extension/Flexion footplate Position the motor as shown above. as shown. A label indicates which Tighten the button (4). -
Page 18: Eversion / Inversion
13.2. Eversion / Inversion The device KINETEC Breva provides movements from 25° of abduction to 25° of adduction, with a ® Valgus/Varus component. Loosen the button (4). Position the Extension/Flexion footplate as shown. A label Position the motor as shown above. -
Page 19: Product Information
• Packaging: The packaging must be separated into plastic and paper / cardboard components and taken to special recycling sites. b • Kinetec patient pad kit: Clean with a disinfectant product then take it to special recycling sites. c • Unit: It contains electronic components, cables, aluminium, steel and plastic parts. When the machine is no longer operational, disassemble it, separate it into different types of material and take these to authorised recycling centres or return the machine to Kinetec for destruction. -
Page 20: Technical Specifications
14.7. Warranty The device KINETEC warranty is strictly limited to the replacement, free of charge, or to factory repairs of part(s) recognised as defective. KINETEC guarantees its continuous passive motion systems for 2 years against all defects of manufacture from the date of purchase by the consumer. -
Page 21: Guidance And Manufacturer's Declaration
Guidance and manufacturer’s declaration Guidance and manufacturer’s declaration - Electromagnetic emissions The device KINETEC Breva is intended for use in the electromagnetic environment specified below. The customer or the user of the device ® KINETEC Breva should ensure that it is used in such an environment. - Page 22 Guidance and manufacturer’s declaration - Electromagnetic immunity The device KINETEC Breva is intended for use in the electromagnetic environment specified below. The customer or the user of the ® device KINETEC Breva should ensure that it is used in such an environment.
- Page 24 Distributed by : Manufactured by: ...
