Kinetec Spectra User Manual

The cpm concept
Hide thumbs Also See for Spectra:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Manuel d'utilisation
Manuel d'utilisation
User manual
User manual
Bedienungsanleitung
Bedienungsanleitung
Istruzioni per l'uso
Istruzioni per l'uso
Manual de empleo
Manual de empleo
Avant toute utilisation lire ce document.
AbilityOne Kinetec se réserve le droit de toutes modifications techniques.
Before use, please read this document.
AbilityOne Kinetec reserves the right to effect technical modifications.
Vor Benutzung unbedingt dieses Dokument lesen.
AbilityOne Kinetec behält sich das Recht vor, jegliche technische Änderung durchzuführen.
Prima di mettere in funzione l'apparecchio leggere con attenzione il presente documento.
La AbilityOne Kinetec si riserva il diritto di apportare modifiche tecniche.
Antes de cualquier utilización, lea este documento.
AbilityOne Kinetec se reserva el derecho a cualquier modificación técnica.
Your contact:
F
GB
D
I
E

Advertisement

Table of Contents
loading

Related Manuals for Kinetec Spectra

Summary of Contents for Kinetec Spectra

  • Page 1 AbilityOne Kinetec reserves the right to effect technical modifications. Vor Benutzung unbedingt dieses Dokument lesen. Bedienungsanleitung Bedienungsanleitung AbilityOne Kinetec behält sich das Recht vor, jegliche technische Änderung durchzuführen. Prima di mettere in funzione l’apparecchio leggere con attenzione il presente documento. Istruzioni per l’uso Istruzioni per l’uso La AbilityOne Kinetec si riserva il diritto di apportare modifiche tecniche.

  • Page 2: Table Of Contents

    • For optimum safety, always give the hand control to the patient before starting the system. • Explosion hazard: KINETEC Spectra is not designed for use in the presence of flammable anaesthetics. • Check that the electrical socket is in good condition and is suitable for the splint power supply cord. The latter complies with current standards and has a grounding socket.

  • Page 3: Definition

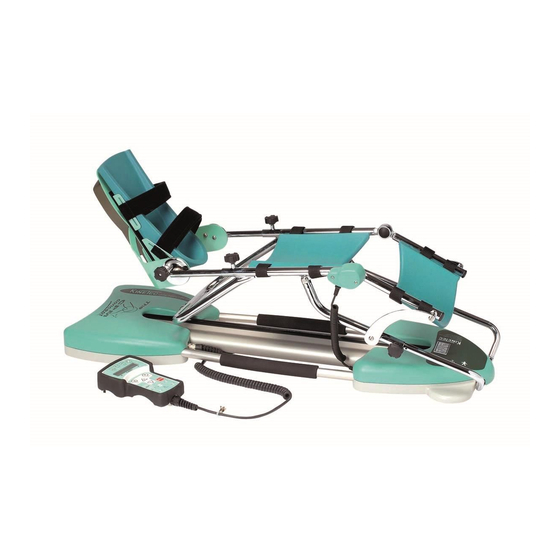

    Definition Definition The KINETEC Spectra is a Knee PASSIVE mobilization device enabling the extension and flexion movement from -10° to 120°. • Indications • Indications • Knee replacement surgery. • Fractures (patellar, tibia plateau, femoral,...). • Arthrolysis • Hip surgery, including hip replacement, hip pinning, osteotomy,...).

  • Page 4: Description

    Description Description KINETEC Spectra consists of the following components: 1 • Lower limb support. 2 • Thigh support. 3 • Foot support and hand control location for transport. 4 • Hand control. 5 • Thigh support setting lock. 6 • Lower limb support setting lock .

  • Page 5: Safety

    KINETEC Spectra is not designed for use in the presence of flammable anesthetics. In case of electromagnetic interference with other devices move the device. KINETEC Spectra is in compliance with standards in force (IEC 601.1.2), electromagnetic compatibility standard for medical devices.

  • Page 6: Electrical Connection

    Electrical connection Electrical connection KINETEC Spectra is a type B class I device. Before connecting the device to the power supply, check that the mains voltage 25 25 matches that shown on the identification plate (100-240 V~ 50-60Hz). Connect the hand control (4) Connect the power supply cable (25).

  • Page 7: Use Of The Hand Control

    Use of the hand control Select your language Select your language Beginning Keys to press Display Remarks KINETEC Spectra V01.0 Switch the unit ON Check if the hand control is not blocked Please wait (See page 7). Kinetec STOP Language: Press the 2 keys in the same time The display indicate the language selected.

  • Page 8: Locking The Hand Control Setting

    Comment: The hand control is unlocked when you switch the unit ON/OFF. START/STOP/REVERSE function START/STOP/REVERSE function As with all KINETEC systems, KINETEC Spectra is equipped with a START/STOP/REVERSE function. When the unit is running, the display reads RUN Press the key of the hand control.

  • Page 9: Quick Start

    Quick Start Set up the patient and proceed as below: Beginning Keys to press Display Remarks KINETEC Spectra V01.0 Check if the hand control is not blocked Please wait (See page 7). Switch the unit ON Kinetec STOP If the Warm Up mode is selected, switch OFF...

  • Page 10: How To Adjust The Basic Parameters Of The Movement

    How to adjust the basic parameters of the movement How to adjust the basic parameters of the movement Beginning Keys to press Display Remarks KINETEC Check if the hand control is not blocked To stop the unit STOP (See page 7). KINETEC To display the extension or flexion limit of the movement The value blinks.

  • Page 11: How To Modify Programs Program Mode

    To switch off the unit To switch off the unit (See page 7). KINETEC Press the two keys at the same time and switch the unit Welcome text during 3 seconds. Spectra V01.0 Program Then The program number blinks. EMPTY Program To change the program if necessary The new program number blinks.

  • Page 12: How To Modify Programs Program Mode

    Program To cancel the program change another program. EMPTY KINETEC To exit program mode, switch OFF and switch ON the unit. To use the modified program see page 10. Spectra V01.0 11 11...
  • Page 13 Use of the hand control Use of the hand control Comments: Comments Program • When a program has been deleted, the display shows EMPTY Program table: Program table: • Program Treatment Mode Flexion limit Extension limit Speed Force Flexion Pause Extension Pause Timer number...

  • Page 14: Using Programs

    Using Programs Using Programs The KINETEC Spectra allows you to store up to 16 programs, including the type of treatment, ROM, speed, load, pauses and timer. The original parameter values of the program are empty. These values can be modified and recorded at any time (see ‘How to enter a program’ page 10).

  • Page 15: Reading The Values Of A Program

    Reading the values of a program: example SPEED Reading the values of a program: example SPEED Beginning Keys to press Display Remarks KINETEC Check if the hand control is not blocked To stop the unit STOP (See page 7). Program To access the program mode The program number blinks.

  • Page 16: How To Use The Warm Up Key

    Start the movement movement. 100° Warm Up rules: The Kinetec Spectra starts at 70% of the full ROM, increasing 5% of the range every other cycle until the pre-set ROM is reached. Comments Comments: The calculation mode used enables reaching the pre-set ROM in approximately 50°...

  • Page 17: How To Use The Modulation Key

    This function, MODULATION Mode is a way to set within the tolerance of a patient at the beginning of a session. Set up the patient and proceed as below: Beginning Keys to press Display Remarks KINETEC Spectra V01.0 Check if the hand control is not blocked Please wait (See page 7). Kinetec Switch the unit ON STOP...

  • Page 18: How To Use The Bypass Key

    IMPORTANT: Can be used only when the machine RUN. Beginning Keys to press Display Remarks Kinetec The unit is running Check if the hand control is not blocked (See page 7). WARMUP The display indicates the keys used to run the...

  • Page 19: Session Time

    Use of the hand control Use of the hand control Session Time Session Time This function shows the running time (in minutes) of the session (motor functioning). TIME 02h25 • It directly accessible by the key , the display shows STOP This counter is reset each time the unit is switched ON.

  • Page 20: Patient Pad Kit

    Kinetec Patient Pad Kit The KINETEC Patient Pad Kit is designed for rapid fitting, optimal hygiene and maximum patient comfort. - For using and positioning the straps, please refer to here under. Make sure that the self-adhesive parts (26) are visible.

  • Page 21: Setting Up The Patient

    IMPORTANT IMPORTANT Adjust the axis of the patient’s hip (28) with the axis rotation (29) of the KINETEC Spectra machine, and the axis of the patient’s knee (30) with the axis rotation (31) of the KINETEC Spectra machine. 31 31...

  • Page 22: Options

    Options Options Cart Cart 21 21...

  • Page 23: Product Information - Maintenance

    The need for maintenance is indicated by display of the message SERV. MOTOR when the system is switched on. Despite that warning, you can continue to use your KINETEC Spectra by pressing START, but you should contact your nearest KINETEC technician to have the maintenance operations conducted as soon as possible.

  • Page 24: Cleaning

    Power supply: 100-240 V~ Frequency: 50-60 Hz Power consumption: 50 VA Device of type B class I IP 20. Fuse T 750mA 250V 6.3x32mm (KINETEC order: 4610007434) Environment Environment - Storage/transport conditions: Temperature: -40 to 70°C / -40 to 160°F...

  • Page 25: Symbols Used

    Warranty The KINETEC warranty is strictly limited to the replacement free of charge or repair in the plant of the component or components found to be defective. KINETEC guarantees its joint passive mobilization systems for 1 year against all defects of manufacture from the date of purchase by the consumer.

  • Page 26: Maintenance Sheet

    Product information Product information Maintenance sheet Maintenance sheet Serial number: _______________ Purchasing date: ____________________ Date: _________________________________________ Operations done: ___________________________________ Technician: _____________________________________ ______________________________________________ Running time (see page 22): __________________________ ______________________________________________ Exchange parts: __________________________________ ______________________________________________ _____________________________________________ ______________________________________________ Date: _________________________________________ Operations done: ___________________________________ Technician: _____________________________________ ______________________________________________ Running hours (see page 22): _________________________...
