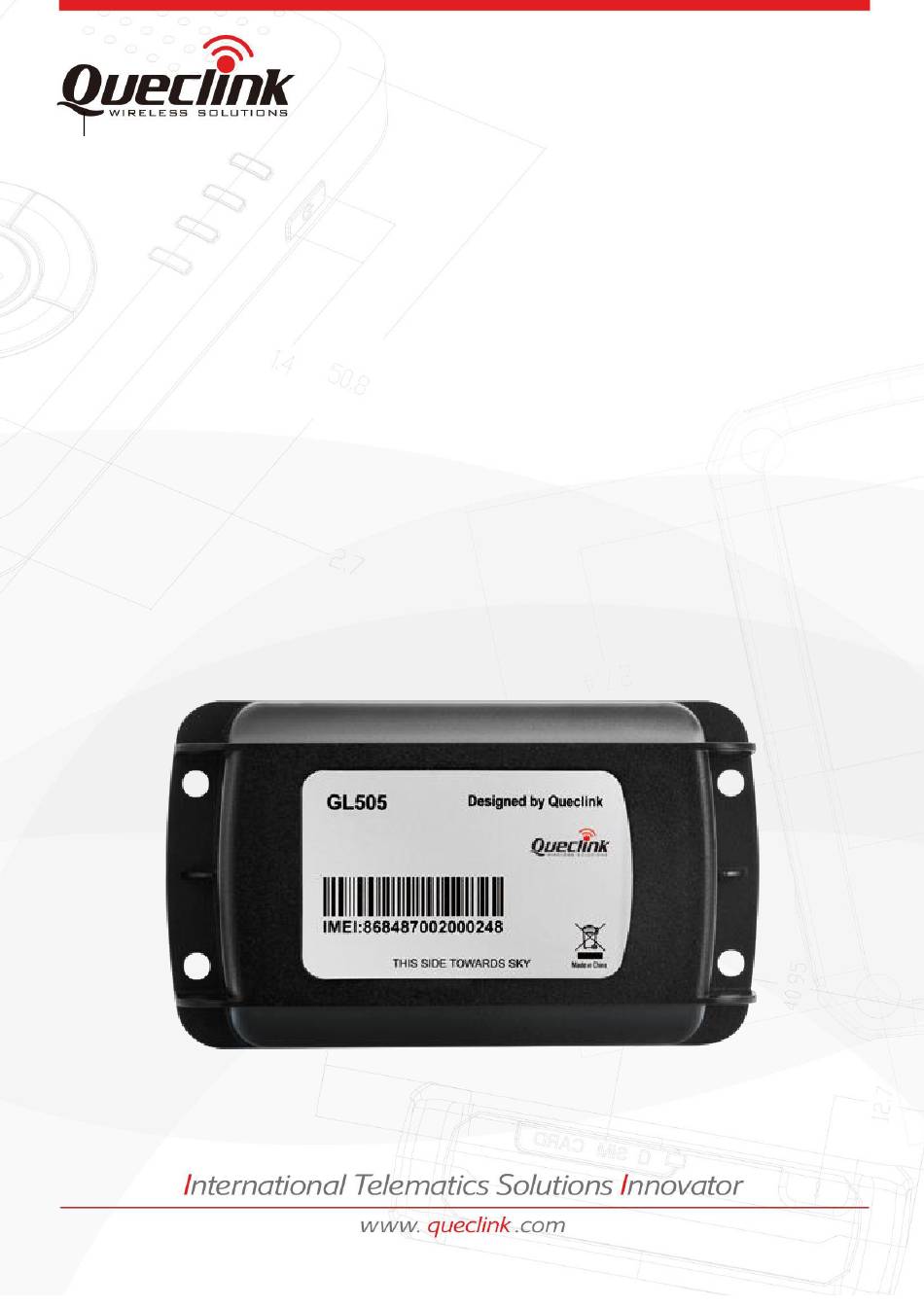

- Page 1 GL505 User Manual GL505 User Manual GSM/GPRS/GPS Tracker TRACGL505UM001 Revision: 1.00 TRACGL505UM001 - 1 -...
- Page 2 TRACGL505UM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
-
Page 3: Table Of Contents
GL505 User Manual Contents Contents ............................3 Table Index ............................4 Figure Index ............................5 0. Revision History ..........................6 1. Introduction ..........................7 1.1. Reference..........................7 1.2. Terms and Abbreviations ..................... 7 2. Product Overview .......................... 8 2.1. Check Parts List ........................8 2.2. - Page 4 GL505 User Manual Table Index Table 1. GL505 Protocol Reference ..................7 Table 2. Terms and Abbreviations ................... 7 Table 3. Parts List ........................8 Table 4. Description of 8 PIN Connections ................9 Table 5. Definition of Device Status and LED ................ 13...
- Page 5 GL505 User Manual Figure Index Figure 1. Appearance of GL505 ..................8 Figure 2. The 8 PIN connector on the GL505 ..............9 Figure 3. Opening the Case .................... 10 Figure 4. Closing the Case ....................10 Figure 5. SIM Card Installation ..................11 Figure 6.
-
Page 6: Revision History
GL505 User Manual 0. Revision History Revision Date Author Description of Change R1.00 2016-06-14 Hazard Zhang Initial TRACGL505UM001 - 6 -... -
Page 7: Introduction
GL505 User Manual 1. Introduction The GL505 is a powerful GPS tracker designed for fixed asset tracking applications. It is powered by user replaceable CR123A lithium battery pack. Configuration allows it to wake up on a preset schedule to check if it needs to shift from dormant to active status and/or send update of its current location, and then return to a dormant state. -
Page 8: Product Overview

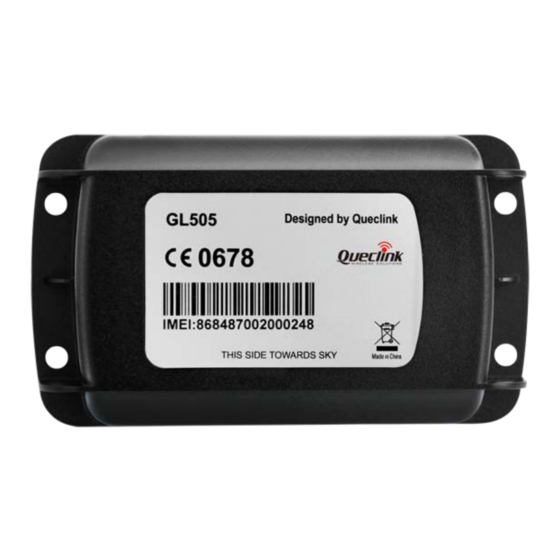

GL505 User Manual 2. Product Overview 2.1. Check Parts List Before starting, check all the following items have been included with your GL505. If anything is missing, please contact your supplier. Figure 1. Appearance of GL505 2.2. Parts List Table 3. Parts List... -
Page 9: Interface Definition
GL505 MCU Download Kit (Optional) 2.3. Interface Definition The GL505 has an 8 PIN interface connector. It contains the connections for power, RS232, MCU Interface, etc. The sequence and definition of the 8PIN connector are shown in following figure: Figure 2. The 8 PIN connector on the GL505 Table 4. -
Page 10: Getting Started
GL505 User Manual 3. Getting Started 3.1. Opening the Case Figure 3. Opening the Case Use the Screwdriver to remove the screws, and then open the case. 3.2. Closing the Case Figure 4. Closing the Case TRACGL505UM001 - 10 -... -
Page 11: Installing A Sim Card
GL505 User Manual Place the cover in the correct position and then tighten the screws with a Screwdriver. 3.3. Installing a SIM Card Open the case and ensure the unit is not powered (unplug the internal battery). Slide the holder right to open the SIM card. -
Page 12: Power On The Device
Figure 6. Backup Battery Installation Note: Make sure the battery is switched OFF before installation. 3.5. Power on the Device After inserted the Battery, GL505 will power on automatically, the Status LED will start work, detail description in the next section. Blue Green Figure 7. -
Page 13: Device Status Led
GL505 User Manual Figure 8. Label on GL505 3.7. Device Status LED Table 5. Definition of Device Status and LED Device status LED status Device is searching GSM network. Fast flashing (Green) (Note1) Device has registered to GSM network. Slow flashing (Note2) SIM card needs pin code to unlock.
