Summary of Contents for Mastech MS5908C

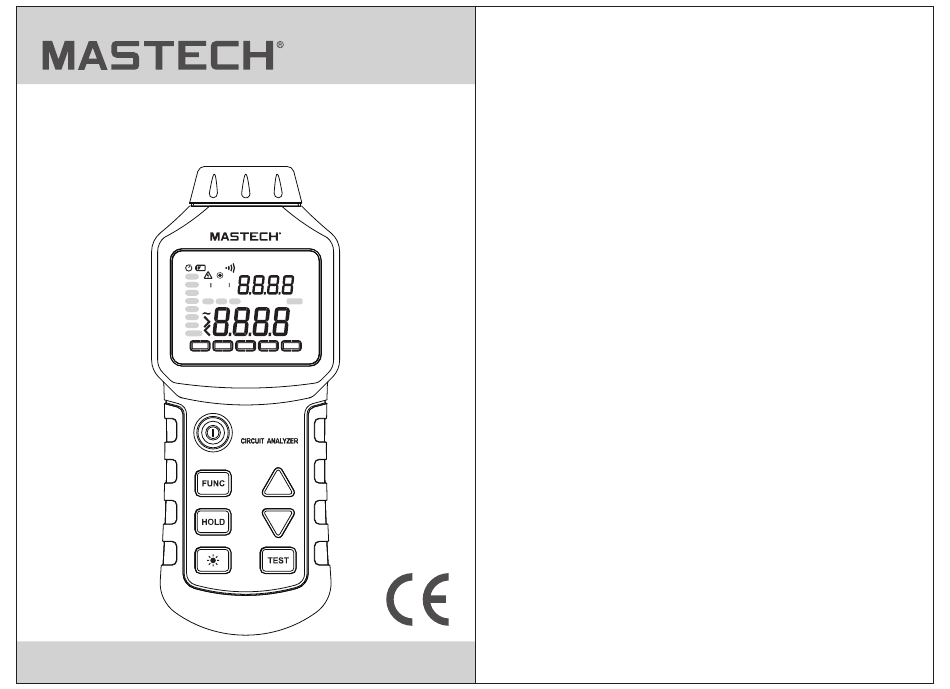

- Page 1 MS5908C Circuit Analyzer User’s Manual TEST L - N L - E N - E Peak 8 A 10 A HOLD Z - L Z - N Z - E Ω ASCC GFCI MS5908C...
-
Page 2: General Instructions
General Instructions Warning This circuit analyzer is a special test device Do not use this instrument without reading, designed for AC low-voltage distribution line quick understanding and following the instructions fault location. With simple operation, accurate in this manual. Read and follow them carefully, measurement and other features, it can detect as well as all warnings and instructions marked multiple problems on a line, such as causing to... - Page 4 Menu Operation Press “ ” The main test items of the analyser are located on the bottom of display, including five test items, Press “ ” Press “ ” namely: voltage (V), voltage drop (Vd), impedance (Z), RCD and GFCI. Press the main test L - N N - E Peak...
-
Page 7: Voltage Measurement
Wiring test Notes: The analyzer can't detect 1. Circuit voltage, i.e. the voltage between two live lines; 2. Combined fault; 3. Reverse connection of earth line and neutral line. The wiring test result will be shown immediately Voltage measurement after the analyzer is plugged to the socket under The normal measured value of phase voltage is test. - Page 9 Voltage drop (V ) measurement If the voltage drop exceeds 5%, and during the measurement made near the switchboard, the Dummy load shall be used in the circuit to reading drops constantly and no obvious change measure the load phase voltage and then calculate is found between the two sockets, it indicates that the voltage drop.
- Page 11 Fault localization and trouble shooting Residual current device (RCD) test Normal Fault During the RCD test, the analyzer will generate a Trouble Measurement Possible measurement measurement shooting Item cause low current between live line and earth line by result result means of a fixed resistance, which will affect the No.
- Page 14 Maintenance Battery installation and replacement: 1) The analyzer is powered by six AAA batteries. 2) Cut off the power and pull out the test line. 3) Unscrew the battery compartment and open the cover. 4) Replace the batteries. 5) Ensure the batteries are installed properly (Do not mismatch polarity) 6) Put back the cover and tighten the screws.
Need help?
Do you have a question about the MS5908C and is the answer not in the manual?
Questions and answers
Здравствуйте. Вопрос:нужно ли отключать напряжение сети для измерения петли L-N.Спасибо.
No, the Mastech MS5908C does not require the power supply to be turned off for measuring the L-N loop.
This answer is automatically generated
