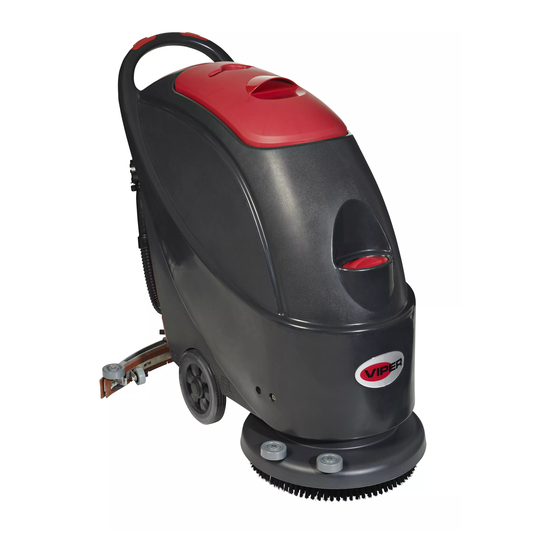

Viper AS430C User Manual
Hide thumbs
Also See for AS430C:
- User manual (288 pages) ,
- User manual (234 pages) ,
- User manual (29 pages)
Related Manuals for Viper AS430C
Summary of Contents for Viper AS430C
- Page 1 Scrubber User Manual AS430C & AS510C c ompany information: www.vipercleaning.eu info-eu@vipercleaning.com VF90015-EU Rev.03...
- Page 2 TABLE OF CONTENTS ENGLISH USER MANUAL………………………………………………… 1-14 DEUTSCH BETRIEBSANLEITUNG………………………………………. 15-29 FRANÇAİS MANUEL UTILISATEUR………………………………………. 30-44 NEDERLANDS GEBRUIKERS HANDLEIDING……………………………….. 45-58 ITALIANO MANUALE D’USO……………………………………………... 59-72 ESPAÑOL ISTRUZIONI PER L’USO……………………………………… 73-87 PORTUGUÊS MANUAL DO UTILIZADOR…………………………………... 88-101 ΕΛΛΗΝΙΚΑ ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ…………………………………….……. 102-116 TÜRKÇE KULLANIM KILAVUZU………………………………….….… 117-130 ČESKÝ...
-
Page 3: Table Of Contents
SCHEDULED MAINTENANCE TABLE ..................10 SQUEEGEE CLEANING ........................10 SQUEEGEE BLADE CHECK AND REPLACEMENT ..............10 BRUSH/POLISHING PAD CLEANING ................... 11 WATER TANK AND FLOAT FILTER MESH CLEANING .............. 11 SOLUTION FILTER CLEANING .....................12 CIRCUIT FIGURE OF AS430C AND AS510C................13 TROUBLESHOOTING .........................14 MACHINE DISPOSAL .........................14 VF90015-EU... -
Page 4: Introduction
The operator and technicians with related qualifications must study this manual carefully before commencing the operation and maintenance of this machine. Please contact VIPER for any queries on the explanation of this manual or when further related information is needed. PURPOSE The intention of this manual is to enable the operator and qualified technicians to accomplish the maintenance of this machine. -
Page 5: General Safety Guides
The following are special warnings and notices on potential damages (personnel and machine): WARNING！ Machine may only be operated under the guidance of this manual. Only accessories approved by VIPER should be used. This machine must be only used by duly trained or authorised personnel. Children or inappropriate persons must not use this machine. -
Page 6: Technical Data
ENGLISH USER MANUAL TECHNICAL DATA Model AS430C AS510C Machine Height 980mm Solution tank capacity 50 litre Recovery tank capacity 50 litre Diameter of transport wheel 200mm Diameter of guide wheel 63.5mm Power of vacuum system motor 400w Maximum gradient when working 2％(Max) -
Page 7: Control Panel
USER MANUAL ENGLISH FIGURES OF MACHINE STRUCTURE Figure 1 CONTROL PANEL (Figure2) 38. Power switch 39. Vacuum switch 40. Solenoid valve switch Figure 2 VF90015-EU... -
Page 8: Guide For Use
Furthermore, please put on protective gloves to avoid being cut by fragments. 1. (Only applicable to AS430C and AS510C): make sure the power cable (9) disconnecting the power supply and the power switch (38) is at the disconnecting (O) condition. -
Page 9: Regulating The Volume Of Water Flow
USER MANUAL ENGLISH If the two ends of the rear squeegee strip, sections C and D, have a gap with the floor or the downward pressure is relatively light, adjust the handle in a clockwise direction until the whole length of the rear squeegee strip touches well with the floor. -
Page 10: Machine Operation (Scrubbing And Drying)
ENGLISH USER MANUAL Turning off the machine 7. When you have finished using the machine, first unload the brush/pad-holder (refer to the steps related in the section on brush/pad-holder installation and unloading) 8. Release the safety switch (1) to turn off the brush/pad-holder and solenoid valve. -
Page 11: After Using The Machine
USER MANUAL ENGLISH Alternatively, directly place draining hose to a low position or on the ground to make the water outlet face downward (as show in B, Figure 8), and then twist open the water draining lid to drain off the wastewater in the tank. After draining is completed, use pure water to cleanse the inside of recovery tank. -
Page 12: Scheduled Maintenance Table
（2） Inspect or change carbon brush of Vacuum motor (1) It should be done 9 hours after the machine starts working. (2) These maintenance procedures must be done by an authorized VIPER Service Center. SQUEEGEE CLEANING NOTE In order to maintain the optimal effect of water Vacuum, the squeegee must be kept clean, and the squeegee strip must remain in a good condition. -
Page 13: Brush/Polishing Pad Cleaning
USER MANUAL ENGLISH Re-install the front squeegee blade in the reverse order of taking it off. After changing the squeegee blade (or installing upside down), adjust the level of the front and rear squeegee blades in the procedures as described above. 4. -
Page 14: Solution Filter Cleaning
ENGLISH USER MANUAL 7. Check if the receiving surface of the sealing strip (G) is intact and seals adequately. 8. Close recovery tank lid (A). Figure 11 SOLUTION FILTER CLEANING 1. Drain all the water from Solution tank in the way as introduced in related sections. 2. -
Page 15: Circuit Figure Of As430C And As510C
USER MANUAL ENGLISH CIRCUIT FIGURE OF AS430C AND AS510C VF90015-EU... -
Page 16: Troubleshooting
－ Brush/pad-holder － Plastic hoses and plastic components － Electrical and electronic components（*） (*): Please contact the nearest VIPER Center (especially when scrapping of electrical and electronic components is required). VF90015-EU...
