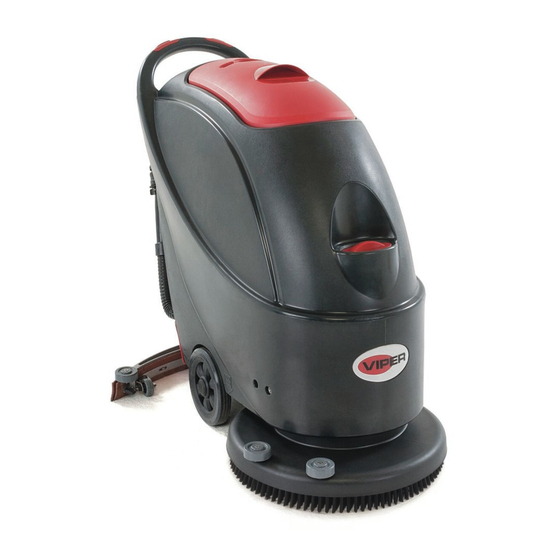

Viper AS430B User Manual
Hide thumbs
Also See for AS430B:
- User manual (387 pages) ,
- Use and maintenance (2 pages) ,
- User manual (45 pages)
Related Manuals for Viper AS430B
Summary of Contents for Viper AS430B

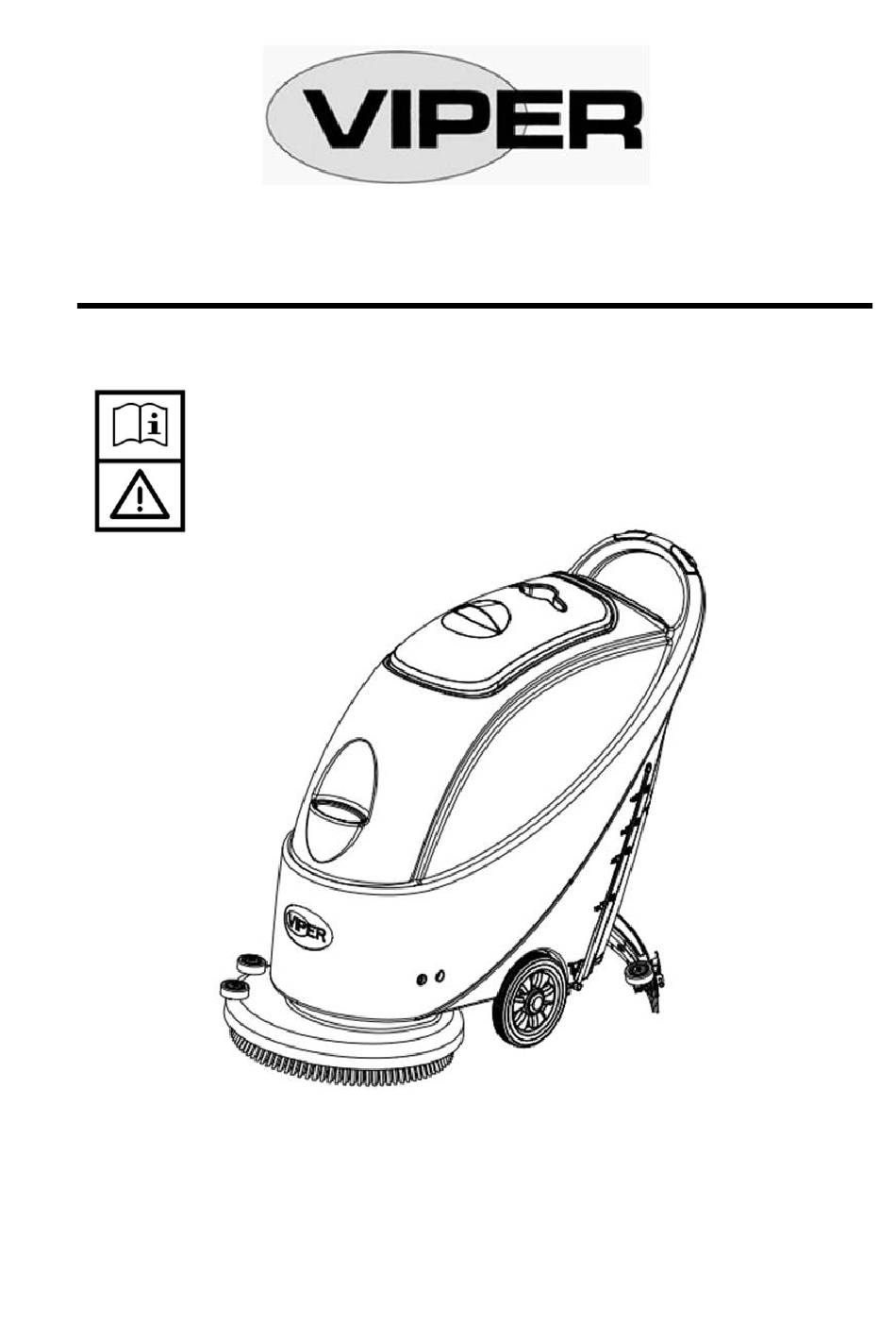

- Page 1 Scrubber User Manual AS430B & AS510B Company information: www.vipercleaning.eu info-eu@vipercleaning.com VF90012-UK Rev.04...
-
Page 2: Table Of Contents
． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． CIRCUIT FIGURE OF AS430B AND AS510B ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．... -
Page 3: Introduction
The operator and technicians with related qualifications must study this manual carefully before commencing the operation and maintenance of this machine. Please contact VIPER for any queries on the explanation of this manual or when further related information is needed. PURPOSE The intention of this manual is to enable the operator and qualified technicians to accomplish the maintenance of this machine. -
Page 4: General Safety Guides
WARNING ！ ！ ！ ！ Machine may only be operated under the guidance of this manual. Only accessories approved by VIPER should be used. This machine must be only used by duly trained or authorised personnel. Children or inappropriate persons must not use this machine. -
Page 5: Technical Data
ENGLISH USER MANUAL TECHNICAL DATA Model AS430B AS510B Machine Height 980mm Solution tank capacity 40 litre Recovery tank capacity 40 litre Diameter of transport wheel 200mm Diameter of guide wheel 76mm Power of vacuum system motor 350w Maximum gradient when working ％... -
Page 6: Control Panel
39. Battery exhausted indication light (red) 40. Battery exhausted indication light (red) 41. Power switch 42. Vacuum switch 43. Timer (optional, used to record working time of brush) 44. Solenoid valve switch for water spraying control AS430B AS510B Figure 2... -
Page 7: Display Window Of Charger Indication Light
C heck the battery. Through the connector (9) connect the battery to the ． machine. 2. (Only applicable to AS430B and AS510B): Press down the on/off switch (41). If the green light is on, it shows that the battery is ready for use. Figure 4 If the amber or red light is on, it shows that the battery needs charging. -
Page 8: Installing Battery And Setting Battery Type
ENGLISH USER MANUAL b) Without batteries 1. Purchase similar battery (refer to the section on technical parameters). Information on the selection of battery may be obtained from qualified battery agents. 2. Set the machine and the on-board charger (if equipped) according to the type of batteries (WET or GEL/AGM). -
Page 9: Before Machine Start-Up
Furthermore, please put on protective gloves to avoid being cut by fragments. 1. (Only applicable to AS430B and AS510B): make sure the switch (41) is at the disconnecting (O) condition. 2. Press down the handlebar (2) to lift the tank body (26). -
Page 10: Adjusting The Balance Of The Squeegee
ENGLISH USER MANUAL ． I f Step No. 7 above proves to be difficult, use the manual method by turning the brush/pad-holder in the direction opposite to the normal turning direction, and it can be taken off. (as shown in Figure 8) ADJUSTING THE BALANCE OF THE SQUEEGEE 9. -
Page 11: Machine Operation (Scrubbing And Drying)
ENGLISH USER MANUAL ． Complete the preparatory steps as related above. ． Press the power switch (41) to the “I” position. 3. Use the squeegee handle (41) to lower the squeegee. 4. Press the Vacuum pump switch (42) to the “I” position. Press the water flow volume control switch (44) to the “I”... -
Page 12: Tank Emptying
ENGLISH USER MANUAL NOTE When all the four green lights (38) turn on, it shows that the battery is fully charged. When only the last green light (38) is on, and begins to flash, suggest charging the battery, for the machine will stop automatically after a few minutes. After the last green light (38) turns off, and the red light (39 and 40) begins to flash, the machine will stop automatically after a few seconds. -
Page 13: After Using The Machine
ENGLISH USER MANUAL 7. As shown in Figure 14, turn open the lid of Solution tank (A) anticlockwise along direction C, and drain Solution tank completely. Use pure water to cleanse the inside of Solution tank. When work is completed, turn tight the lid of Solution tank (A) clockwise in direction B. -
Page 14: Scheduled Maintenance Table
（ ） (1) It should be done 9 hours after the machine starts working. (2) These maintenance procedures must be done by an authorized VIPER Service Center. BATTERY CHARGING NOTE It is time to charge the battery when the amber or red warning light is lit up, or every time when work is done. -
Page 15: Squeegee Cleaning ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． 1
ENGLISH USER MANUAL 8. When charging is complete, connect the charging connector of the battery to the machine. To charge a battery with an on-board charger (optional) 9. Take off the rubber lid at the end of the battery charging connector. 10. -
Page 16: Brush/Polishing Pad Cleaning
ENGLISH USER MANUAL Re-install the front squeegee blade in the reverse order of taking it off. After changing the squeegee blade (or installing upside down), adjust the level of the front and rear squeegee blades in the procedures as described above. 4. -
Page 17: Solution Filter Cleaning
ENGLISH USER MANUAL 8. Close recovery tank lid (A). Figure 16 SOLUTION FILTER CLEANING 1. Drain all the water from Solution tank in the way as introduced in related sections. 2. Move the machine to a flat and smooth ground. 3. -
Page 18: Circuit Figure Of As430B And As510B
ENGLISH USER MANUAL CIRCUIT FIGURE OF AS430B AND AS510B Battery Charger Control circuit board LED board Contactor Solenoid valve Brush motor fuse Vacuum motor fuse Control circuit board fuse Solenoid valve fuse Brush motor Vacuum motor Power switch Brush motor switch... -
Page 19: Troubleshooting
－ Battery － Brush/pad-holder Plastic hoses and plastic components － Electrical and electronic components － （ ） (*): Please contact the nearest VIPER Center (especially when scrapping of electrical and electronic components is required). - Page 20 Company information: www.vipercleaning.eu info-eu@vipercleaning.com...
