Example 2: Create a New Type (cont.)

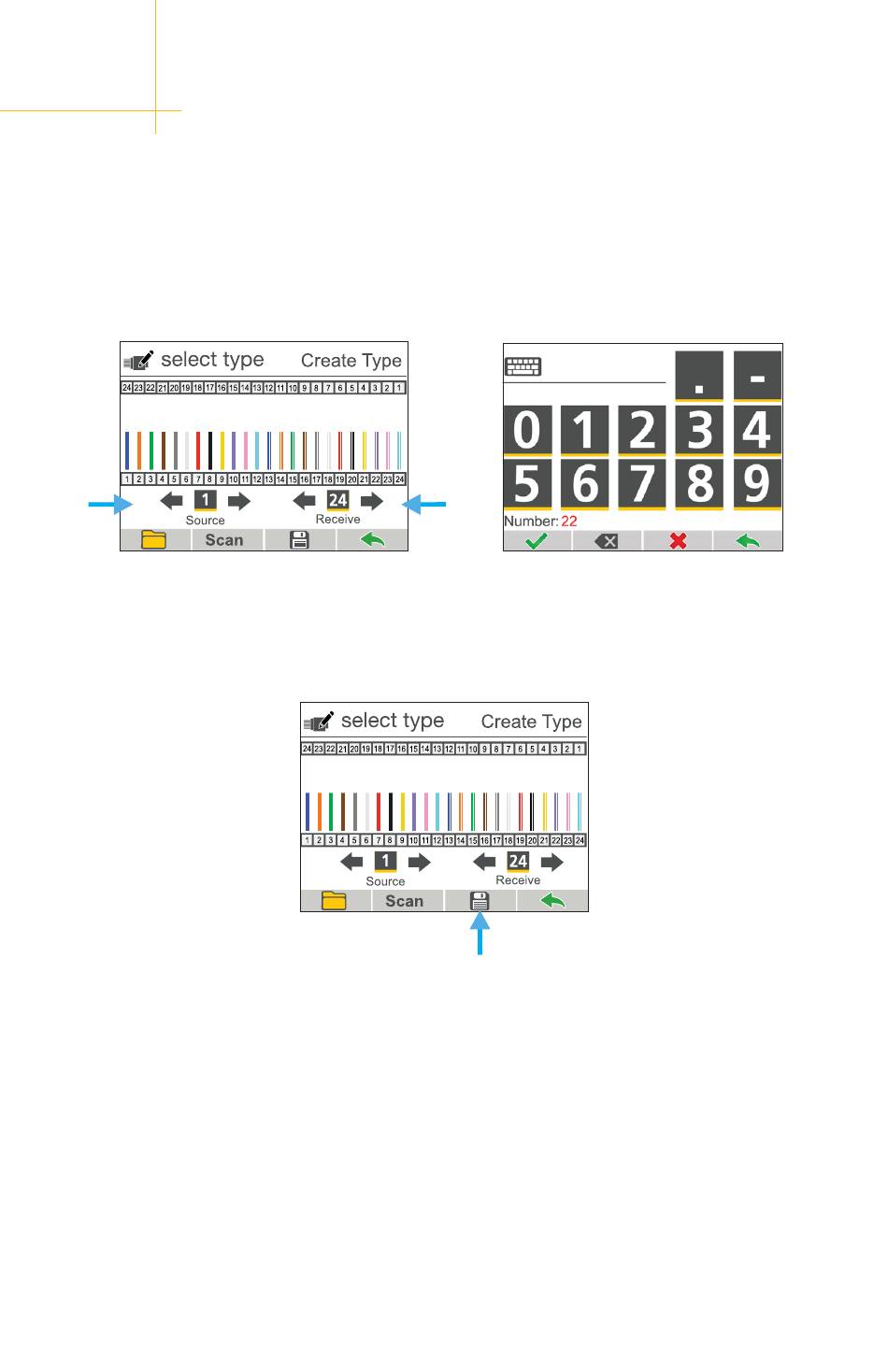

To create a new type manually, use the left and right arrows to assign the source and
corresponding receive channels, or tap the number in between the arrows to type in the
desired channel. The user may select an existing type to start off with.
Once the source and receive channels are assigned, pressing the Save icon will bring up
the keyboard screen to name the new type. From there the new type is saved to the unit.
If the user intends to test both polarity and output power using created cable types, an
output power reference is needed.
