Create Type Screen

The Create Type screen is accessed by pressing the Create icon on the home page,
and it is used to create new cable types or view existing types. Once a type is saved, it is
available in the list of saved types, accessible through the Folder icon on various screens.
The Folder icon on the home screen displays both saved types and test results.
1
2
4 5
1
2
3
4
5
6
7
1
2
3
4
5
3
6 7

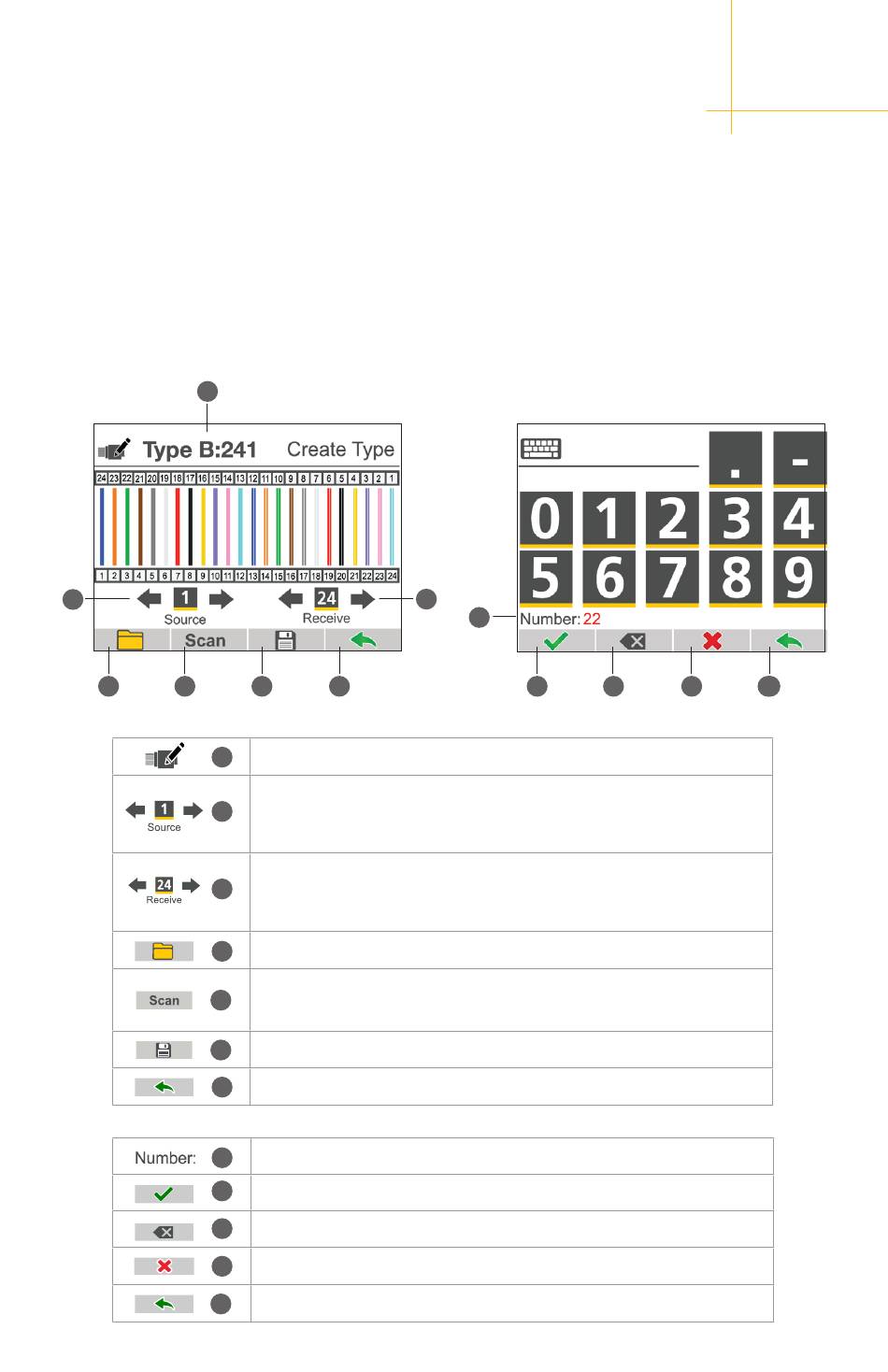

Displays the cable type
Press the arrow keys on either side of the source box, or press
the source box and select the number with the numeric keyboard
to select a Connection (Source)
Press the arrow keys on either side of the receive box, or press
the receive box and select the number with the numeric keyboard
to change the destination (Receive)
Displays a list of available types
Scans and shows the connectivity of the cable, and inputs
power reference values
Brings up the keyboard allowing a file name to be entered
Exits the screen without saving the file
Displays typed-in channel
Confirms and saves the file name typed
Deletes text–one letter/number at a time
Deletes all the text
Exits the screen without saving the file
