Front Panel Operation
Settings Screen - Laser Screen

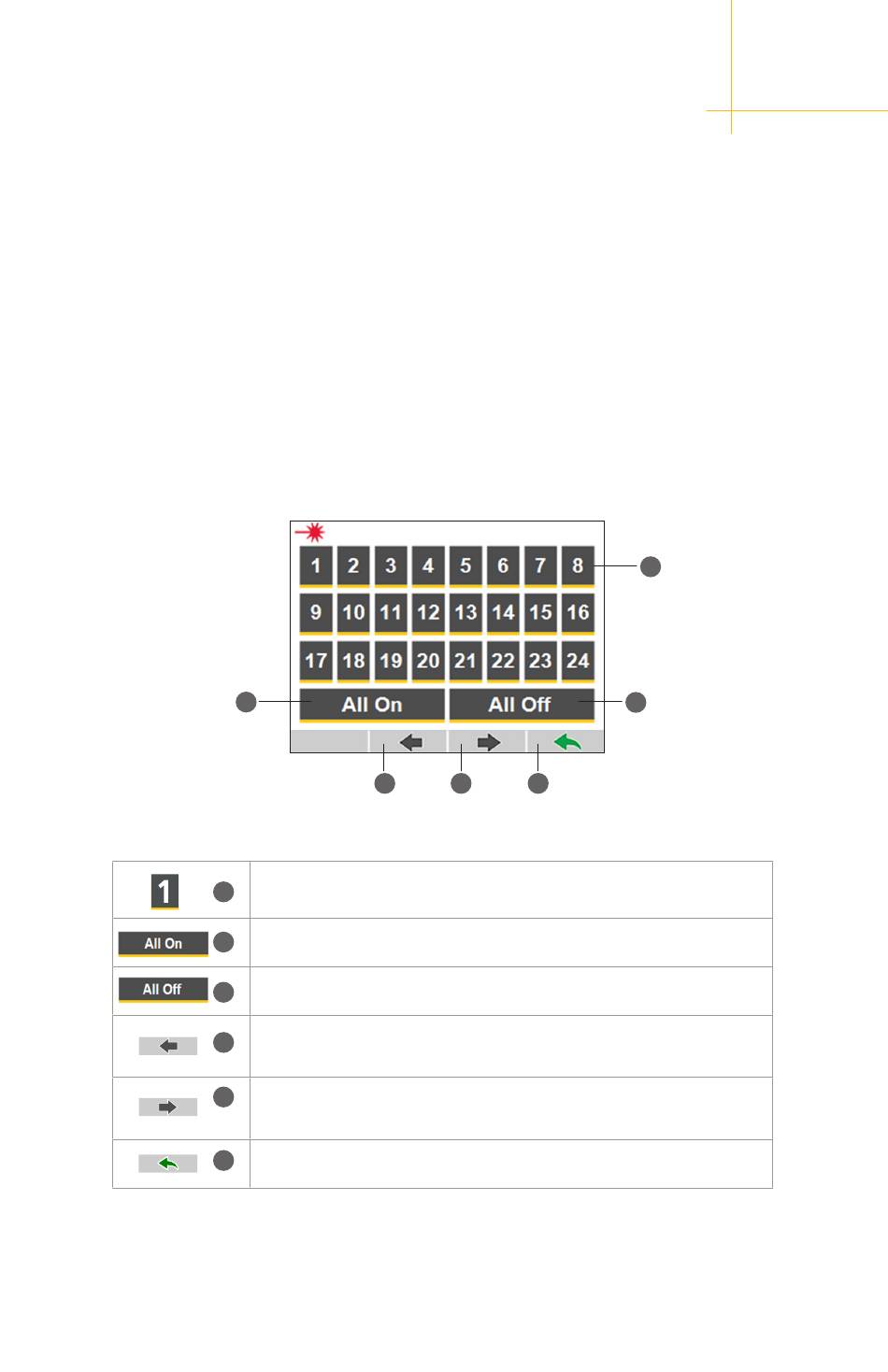

The Laser screen is accessed by pressing the Laser icon on page 1 of the settings. This
screen is used to select laser sources and turn them on. This can be useful to build or
debug cables.
Be very careful not to look at the emitted laser light as each laser will emit 5mW
of power. All lasers on will emit 120mW of power. It is strongly recommended you
wear protective goggles when using this screen. Do not allow other personnel to be
directly or indirectly exposed to this laser light.
1
2
3
4
5
6
2
4
Pressing a number will turn that laser source on or off. If it is on,
the yellow strip under the number will turn red
Pressing All On will turn all lasers on
Pressing All Off will turn all the lasers off
Cycles through the lasers in descending order. Only one laser is
on when the arrow keys are used
Cycles through the lasers in ascending order. Only one laser is
on when the arrow keys are used
Returns to previous screen
5 6
