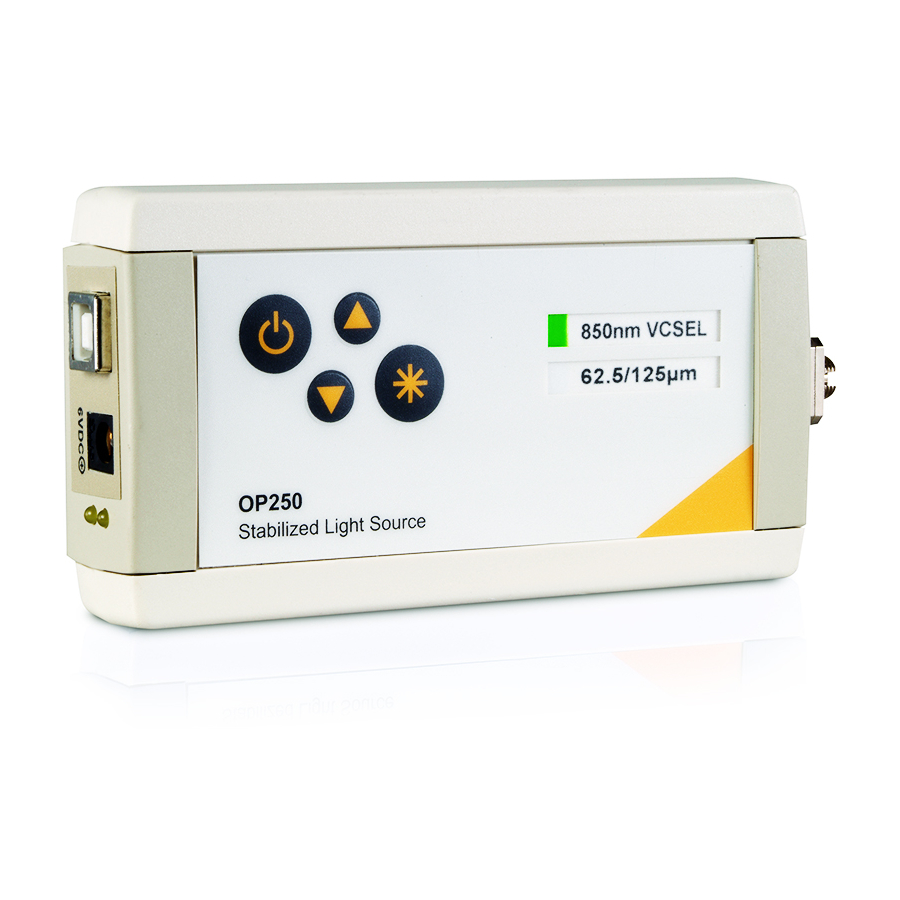

OptoTest OP250 Short Instructions

OP250
Overview
The is a configurable stabilized light source
OP250
available with a variety of LASERs or LEDs. Offered
in a single or dual port configuration with selectable
wavelengths, various power levels and industry
standard optical interfaces. This instrument offers
all the features and functions necessary for the
development, testing and inspecting of optical
components and cables. The stand-alone, internally
powered module also connects to a USB port on any
computer.
OptoTest offers drivers and applications which allow
the user to perform common measurement tasks
as well as data logging or time-stamped stability
measurements. OPL-2 allows the user to adjust output
power from 0 to 100%.
Features
Source stability of 0.02 per hour (per 1ºC variation)*
•
• Wide variety of source wavelength options,
including 635nm, 850nm, 1310nm, and 1550nm
among many others
• Various types of sources including LEDs,
Fabry-Perot lasers, and VCSELs
• Customizable fiber type such as 9/125μm,
50/125μm, 62.5/125μm, 105/125μm, 100/140μm,
and POF
• Many common source connector outputs such as
FC, SC, and ST
• Single or dual port configuration
• Remote control of output power via USB
• Integrated temperature monitoring
• Internal rechargeable Lithium-Ion battery
* Standard wavelengths
Single Mode: 1310/1550; Multimode: 850/1300
Contacting OptoTest Corporation
1.805.987.1700 (7:30 a.m. to 5 p.m. PST)
www.optotest.com
engineering@optotest.com
OptoTest Corp.
4750 Calle Quetzal
Camarillo, CA 93012 USA
Notice of Proprietary Rights
The design concepts and engineering details embodied in this
manual, which are the property of OptoTest Corporation, are
to be maintained in strict confidence. No element or detail of
this manual is to be spuriously used or disclosed without the
express written permission of OptoTest Corporation. All rights are
reserved. No part of this publication may be reproduced, stored
in a retrieval system, or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording, or otherwise,
without prior written permission from OptoTest Corporation.
COPYRIGHT© 2016 by OptoTest Corporation
ALL RIGHTS RESERVED
PRINTED IN THE UNITED STATES OF AMERICA
MnOP250-RevD
Warranty Information
OptoTest Corp. warrants this product to be free from defects in
material and workmanship for a period of one year from date of
shipment. During the warranty period we will, at our option, either
repair or replace any product that proves to be defective. To
exercise this warranty contact OptoTest Corp. headquarters. You
will be given prompt assistance and return instructions. Repairs
will be made and the instrument returned, transportation prepaid.
Repaired products are warranted for the balance of the original
warranty period, or at least 90 days.
NOTE: Do not send instruments for any reason without contacting
OptoTest headquarters first.

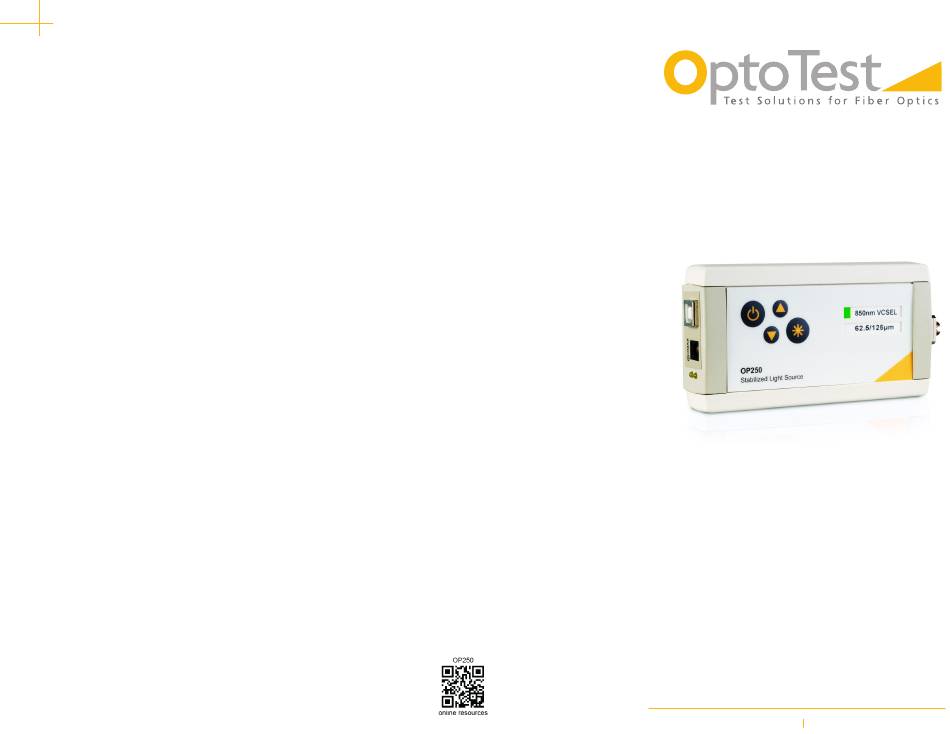

OP250
Stabilized Light Source
Short Instructions
www.optotest.com
1.805.987.1700
