Example 1: Running a Test

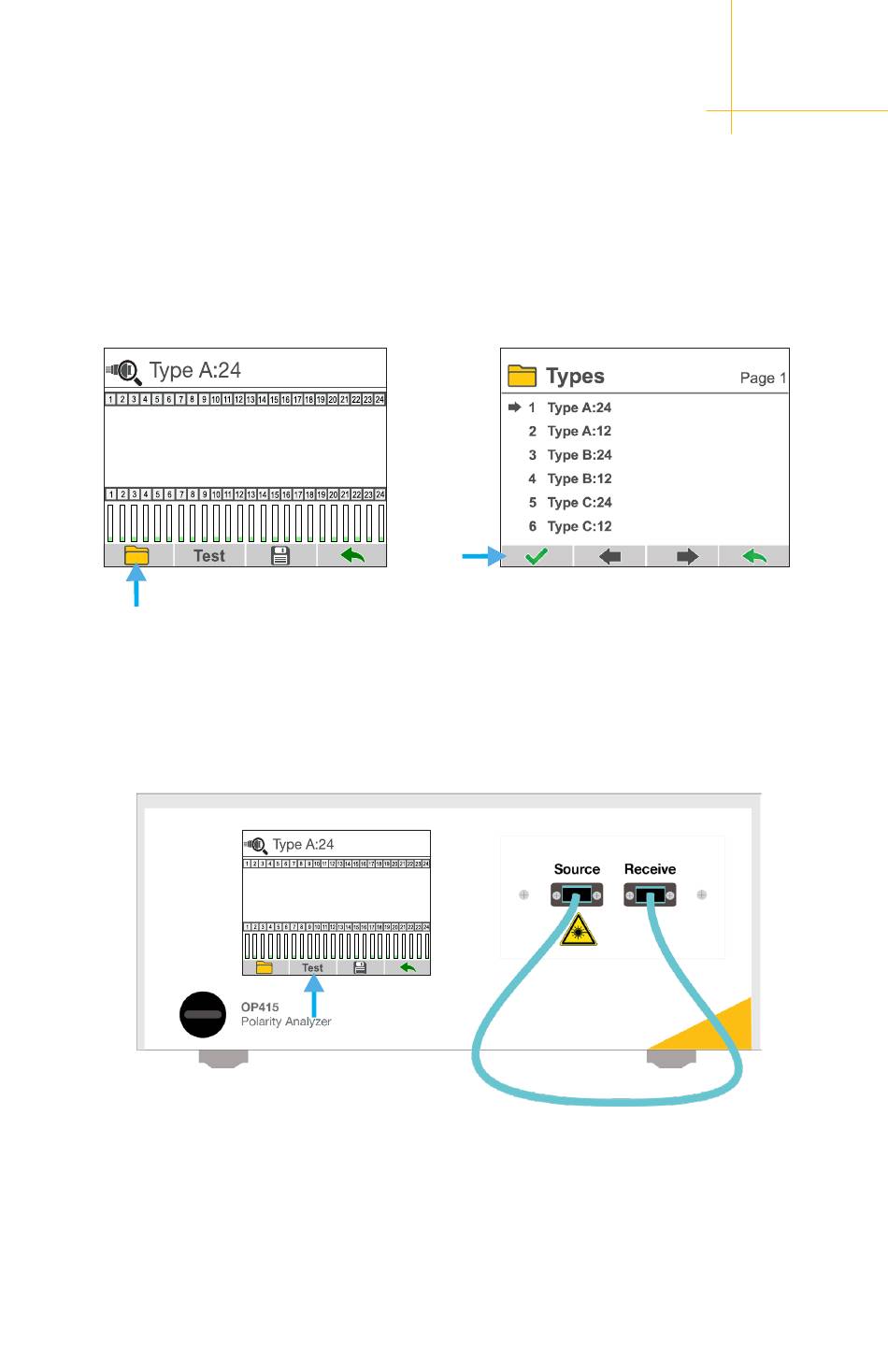

To begin a test, select the cable polarity to test for by pressing the Folder icon. This
brings up the list of cable types stored in the unit, including any created by the user. In
the settings screen, the user can set a default type for the Map screen to start up with.
Connect the cable to be tested to the source and receive ports of the OP415. Once the
cable is connected, pressing the Test icon activates the lasers and performs the test.
Once the test is completed, the user can save the results to the unit by pressing the
Save icon.
