Front Panel Operation
Map Screen (cont.) - Types Screen

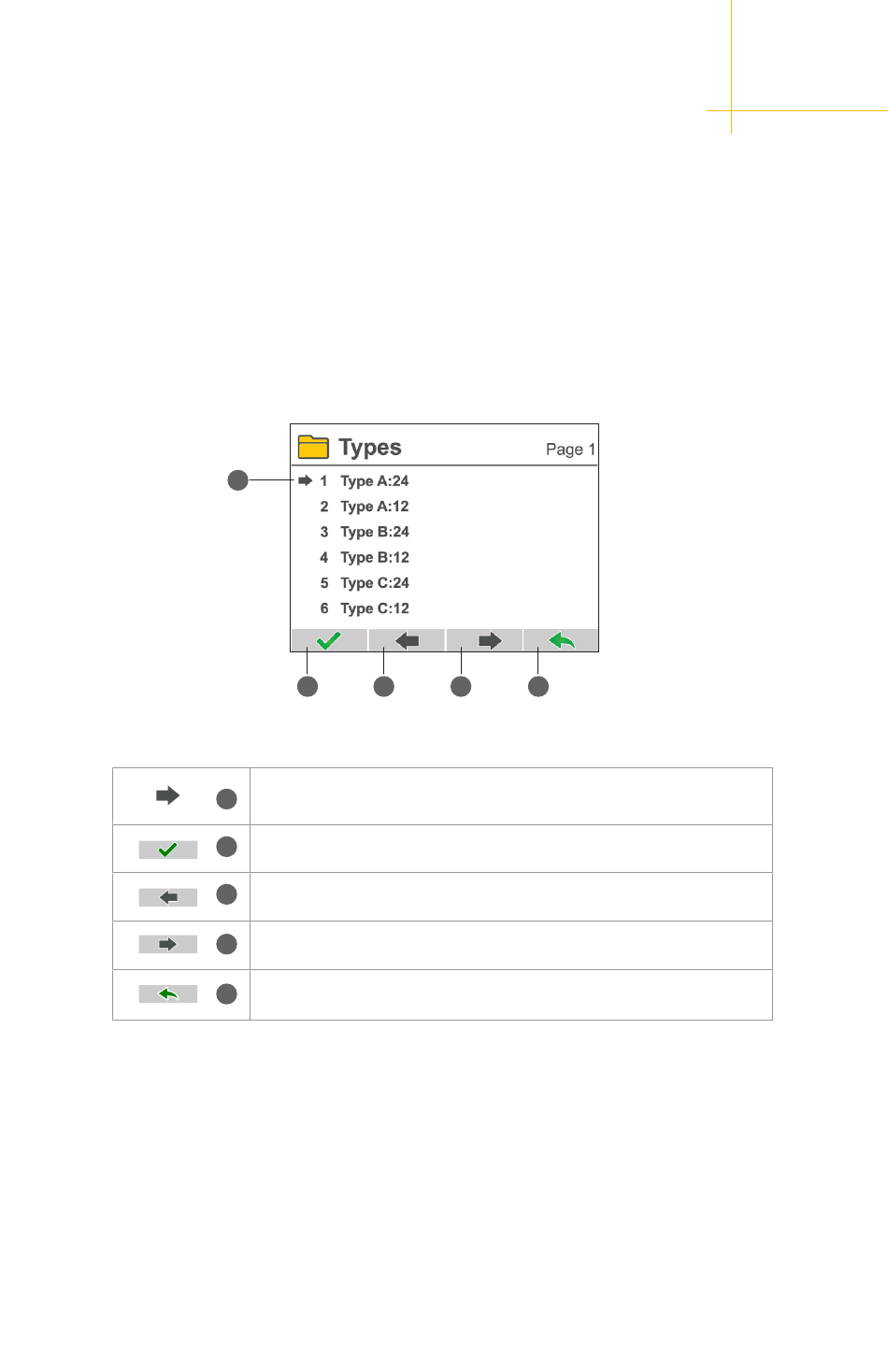

Selecting the Folder icon brings up the Types screen. The first 6 types in the list are
built-in and any additional types are created by the user manually or by scanning a
known cable and saving the mapping (see page 22).
1
2
3
4
5
1
2 3
Select a type by pressing on the name. When this is done the
arrow on the left will move to the selected name
Press the check mark to confirm selection
Returns to the previous page of options
Advances to the next page of options
Returns to previous screen without any selection
4 5
