Example 2: Create a New Type

The user has two options for creating new types and saving them to the unit: scanning
and manual entry.

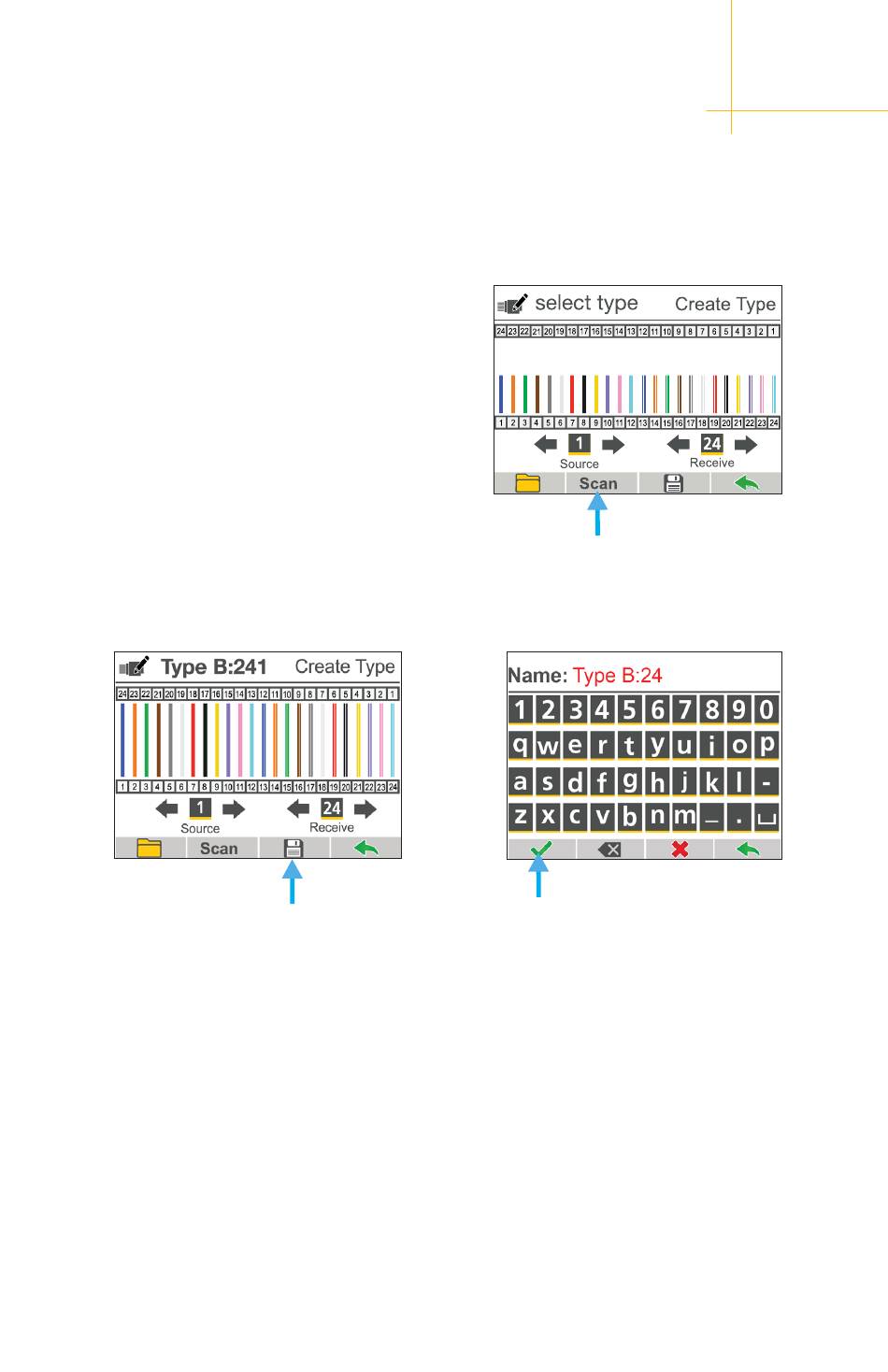

To learn a new cable type by scanning,
connect a cable with a known mapping
to the source and receive ports of the
OP415. Once connected, pressing
the Scan icon activates the lasers to
determine the mapping, which is then
displayed on the front panel.
From there, pressing the Save icon brings up the keyboard screen to give the new
mapping a name.
The new type is saved to the unit and accessible by pressing the Folder icon.
