- Page 1 OP710 Multichannel Optical Power Meter Instruction Manual www.optotest.com 1.805.987.1700...
- Page 2 The design concepts and engineering details embodied in this manual, which are the property of OptoTest Corporation, are to be maintained in strict confidence. No element or detail of this manual is to be spuriously used or disclosed without the express written permission of OptoTest Corporation.
-
Page 3: Table Of Contents
OP710 Table of Contents Overview Initial Preparation Definition of Specifications Front Panel Operation Display Operation Warranty Information 2 of 11... -
Page 4: Overview

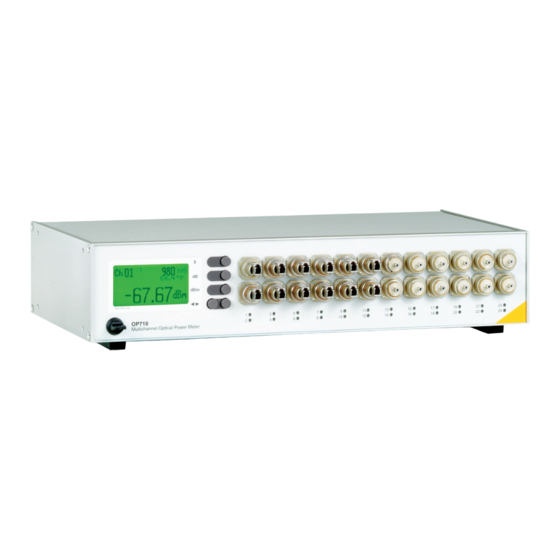

OP710 Overview The OP710 offers an economical approach for optical power measurement applications where multiple channels are needed. Unlike other systems this instrument is built up with individual power meters allowing for unparalleled simultaneous data acquisition over all channels with a sampling rate of up to 10 samples per second. -
Page 5: Initial Preparation
Please retain the shipping container in case re-shipment is required for any reason. Damaged In Shipment All instruments are shipped F.O.B. Camarillo when ordered from OptoTest. If you receive a damaged instrument you should: 1. Report the damage to your shipper immediately. -
Page 6: Definition Of Specifications
OP710 Definition of Specifications Dynamic Range The dynamic range spans from the maximal power level the instrument can measure without major saturation to the detector to the minimal power level where the thermal noise of the detector becomes greater than the current produced by the incident light. - Page 7 OP710 Definition of Specifications Spectral Responsivity Depending on the detector type, InGaAs (Indium Gallium Arsenide) or Silicon the spectral responsivity, the efficiency of the detector to convert optical power into electrical current changes with wavelength. Responsivity of InGaAs Detectors Responsivity of Silicon Detectors Note that other detector types are available such as IN5 (5mm InGaAs) IN10 (10mm InGaAs) as well as WSR (wide spectral range) and might exhibit a different spectral responsivity.
- Page 8 OP710 Definition of Specifications Recommended Recalibration Period This is the recommended time period for re-calibration in order to maintain accuracy specifications. The recommendation is made based upon statistics on detector aging; however it is up to the metrology policies and procedures within each company to define the calibration cycles on optical power meters.
- Page 9 OP710 Definition of Specifications Reference Cable The reference cable is the cable with which the DUTs will be measured against. Typically reference cables are required to be of a defined quality with a specified connector/endface polish. Instrument, Environmental Operating Temperature: This is the temperature range in which the instrument will conform to the specifications after the specified warm up time.
-
Page 10: Front Panel Operation
OP710 Front Panel Operation Channel Wavelength Indicator Indicator Wavelength 1300nm Relative Measurement 77.3°F 1310 Absolute Measurement Channel Selection Wavelength Internal (ambient) Temperature Wavelength The wavelength button toggles through the available calibration wavelength. Typically, for power meters with InGaAs this is 850nm, 980nm, 1300nm, 1310nm, 1480nm, 1550nm, and 1625nm;... - Page 11 OP710 Front Panel Display Channel Wavelength Reference Power 1310nm 1310nm 22.4°C 22.4°C Ref: -12.45dBm -0.316 -12.45 Absolute Power Relative Power Internal (ambient) Temperature Channel Display Shows the current selected channel. Wavelength Displays the currently selected calibration wavelength. Absolute Power The absolute power is displayed in dBm.
-
Page 12: Warranty Information
OP710 Warranty Information OptoTest Corp. warrants this product to be free from defects in material and workmanship for a period of one year from date of shipment. During the warranty period we will, at our option, either repair or replace any product that proves to be defective. - Page 13 For Application Notes, more detailed Testing Instructions, and the www.optobuzz.com most up-to-date OptoTest News go to...
