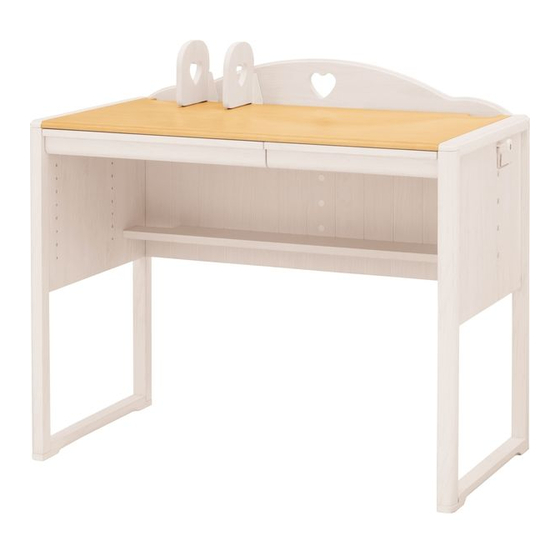

Assembly Instruction Manual
Special Edition
Thank you very much for purchasing the
OKAMURA Study DESK. Before using this
product, carefully read this Assembly
Instruction Manual in order to fully under-
stand and correctly assemble the product.
Upper side
Assembled on rear face
Desktop
Quality labeling seal
(Attached to the desktop back side)

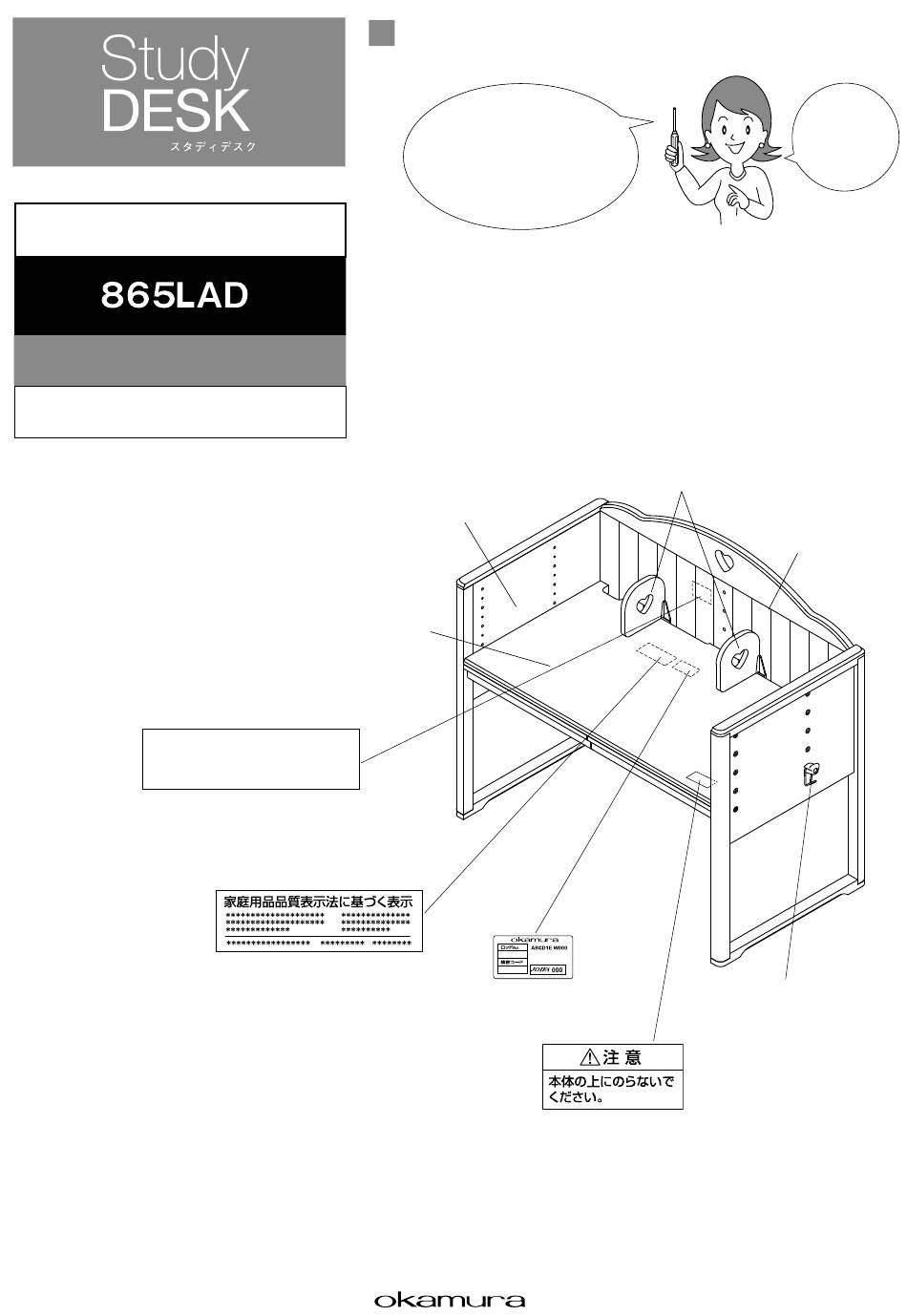

Assembly Final Drawing
A cross slot
screwdriver is required for
assembly. Please have one available.
* Do not use an electric screwdriver
because it may damage the
product.
Side panel
(Attached to the
desktop back side)
(Name of each part)
Divider
Rear panel
Swing hook
(Do not remove the warning labels)
Two
persons should
assemble this
product.
Advertisement
Table of Contents
Related Manuals for Okamura 865LAD
Summary of Contents for Okamura 865LAD
- Page 1 Desk Assembly Instruction Manual Special Edition Thank you very much for purchasing the Divider OKAMURA Study DESK. Before using this Side panel product, carefully read this Assembly Rear panel Instruction Manual in order to fully under- stand and correctly assemble the product.
- Page 2 To Use Safely This indicates that improper handling due to disregard of this warning may result in injury or CAUTION CAUTION damage to property. CAUTION Cautions for assembly Fully read the instruction manual before assembly, securely There may be some parts and members which are not used tighten the bolts with a screwdriver, and use all of the assembly depending on the assembling pattern.
- Page 3 Check before assembling Desktop Height, Chair Height/Depth <JIS standard No. and body height reference> OKAMURA Sorano Series Desk complies with JIS Standard No. 2 (body height 120cm) No. 6 through No. 6 (body height 180cm). The desktop height is five-stage adjustable.
- Page 4 Desk Details of Parts (make sure to check before assembly) Connecting bolt Actual size (M6 × 60mm) ３ Organizer tray Single-end Connecting bolt Actual size (M6 × 35mm) connection bolt (24mm) Desktop Ring Swing hook Hook Plug cap (8mm) receiving dowel Use a cross slot screwdriver for assembly.
- Page 5 Installation of desktop, movable divider and hook Desktop * Desktop height is five-stage adjustable. Refer to page 3 for the height. Insert the desktop receiving dowels of (4 locations) into the desktop receiving dowel holes provided on the side panel, and place the desktop. * Make sure to install all of the desktop receiving dowels at the same height.
- Page 6 Okamura Corporation International Sales and Marketing Division Address: 2-14-27 Akasaka, Minato-ku, Tokyo 107-0052 Japan Phone : +81-3-5561-4085 : +81-3-5561-4086 T1506-08 Website: http://www.okamura.co.jp/...
