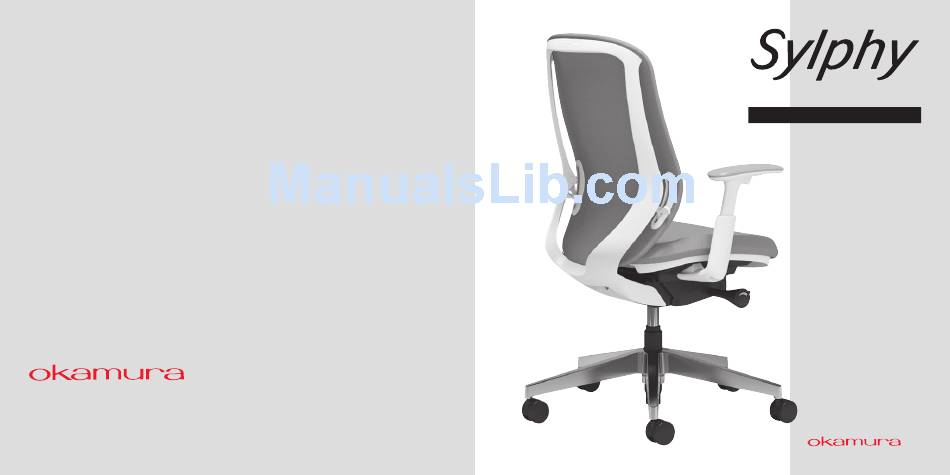

O f f i c e
S e a t i n g
I n s t r u c t i o n s f o r U s e
OKAMURA CORPORATION
INTERNATIONAL SALES & MARKETING DIVISION
2-14-27, Akasaka, Minato-ku, Tokyo 107-0052, JAPAN
Tel : +81-3-5561-4085
Fax : +81-3-5561-4086
G98465
//
.
/
http:
www
okamura.jp
2014-05
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Okamura Sylphy
Summary of Contents for Okamura Sylphy
- Page 1 O f f i c e S e a t i n g I n s t r u c t i o n s f o r U s e OKAMURA CORPORATION INTERNATIONAL SALES & MARKETING DIVISION 2-14-27, Akasaka, Minato-ku, Tokyo 107-0052, JAPAN...
- Page 2 Soft caster Hard caster sunlight. No remodeling. Okamura will have no Be careful not to get responsibility for any disadvantage caused by your fingers, hand or remodeling. clothes caught in the...
- Page 3 Part names Adjustable range 10° Backrest 23° 120mm (4 3/4”) Design arm (option) Hanger (option) Headrest (option) Seat Seat slide lever Backrest curve Adjustable arm adjustment lever (option) 100mm (4”) Reclining lock/ release dial Arm height 50mm adjustment button (2”) Backrest frame Seat height adjustment lever...
- Page 4 Operation guide Seat height adjustment Seat depth adjustment Adjust the seat height using the seat height adjustment Adjust the seat depth by sliding the seat forward or lever on the bottom right of the seat. The seat will be back within a range of 50 mm (2”) using the Seat lowered if you lift the lever while seated, and it will stop slide lever on the bottom left of the seat.
- Page 5 Operation guide Reclining adjustment Dial position to lock and release the backrest recline Before adjusting the backrest recline, release the Turn the reclining lock/release dial to the (A), (B), or (C) position to lock and release the backrest recline. lock by using the reclining lock/release dial on the bottom left of the seat.
- Page 6 Operation guide Reclining tension adjustment Backrest recline to the BACK position ● Adjust the reclining tension by using the reclining Release tension adjustment dial on the bottom right of the seat. The backrest recline can be adjusted within a range BACK of 23°.
- Page 7 Operation guide Backrest curve adjustment feature Adjustable arm (option) height adjustment The backrest curve will be loosened (A) if you pull Release the height lock using the arm height down the levers on both sides of the backrest, and adjustment button on the bottom of the arm pad. the curve will be tightened (B) if you pull up the levers.
- Page 8 Operation guide Part attachment and replacement Hanger (option) height adjustment Adjustable arm (option)/Design arm (option) Adjustable arm Adjust the Hanger by pushing the button. The Hanger attachment and replacement can be moved up and down within a range of 120 mm (4 3/4”).
- Page 9 Part attachment and replacement Materials Headrest (option) attachment and replacement Headrest Part Materials (1) Attach the Headrest on the backside of the backrest by Cover Frame Glass-reinforced polyamide >PA-GF< securing it with hexagon socket bolts (M6 x 25L) and ② hexagon nuts (M6).
- Page 10 Troubleshooting Problem Check Solution Page Are you sitting on the seat Adjust the seat height while when adjusting the seat not seated on the seat. height? The seat cannot be lifted up. Is the seat height in its highest The seat cannot be lifted up position? beyond the highest position.
