Assembly/Instruction Manual
Thank you for purchasing an Okamura Study Desk. Carefully read and understand the contents of this
Assembly/Instruction Manual to ensure proper assembly and use.
Caution
Warning
Desktop
Leg extension
This denotes information about a situation that may result in
injury or physical damage if the caution is ignored or the
product is used improperly.
Observe the following precautions for electric lights and
power outlets.
Failure to do so may result in electric shock or fire.

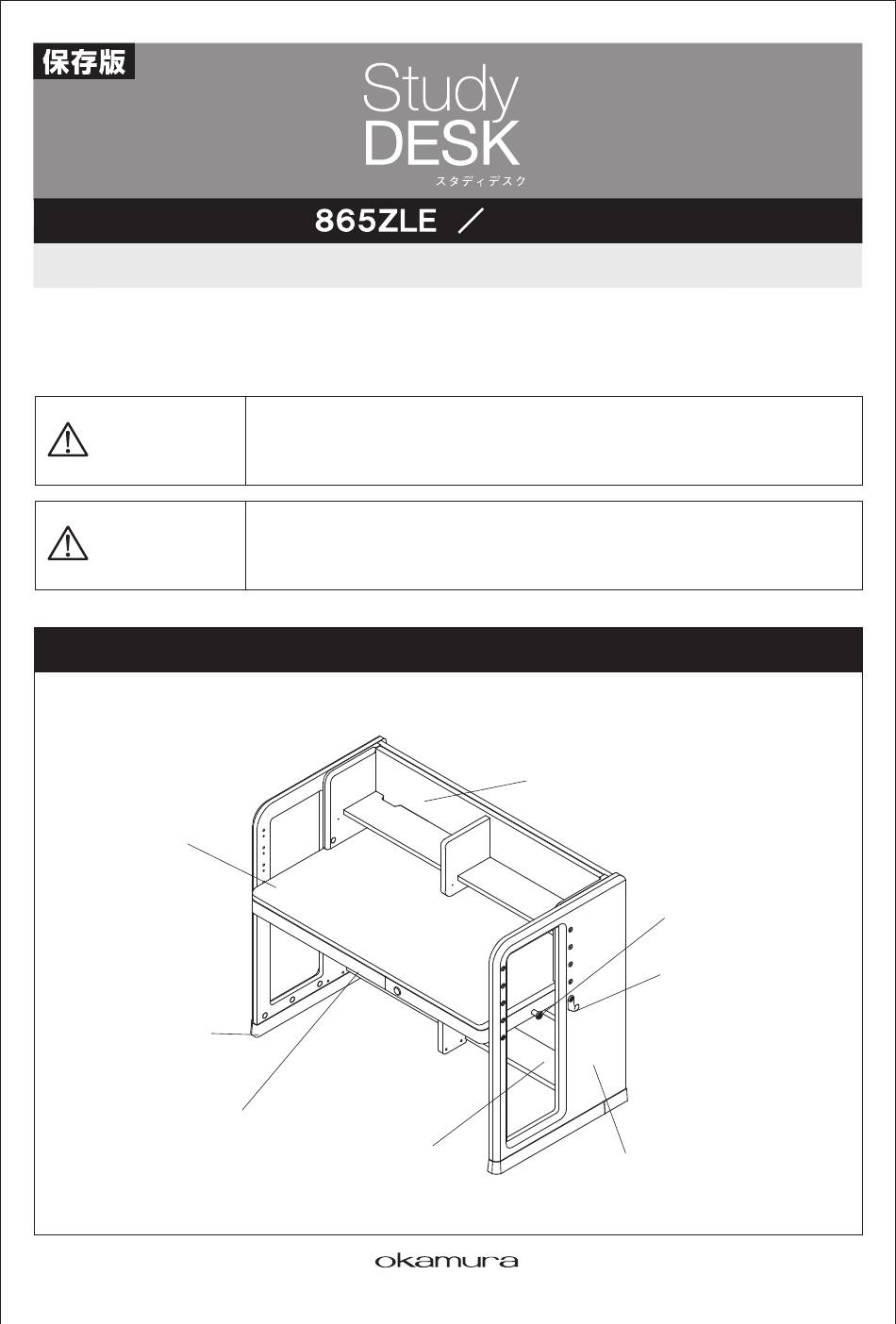

Diagram of assembled desk (Names of parts)
Drawer
Fixed lower shelf
Desk
[Important Document]
Desktop shelf
Hook
Bag hook
Side panel
Advertisement
Table of Contents
Related Manuals for Okamura 865ZLE
Summary of Contents for Okamura 865ZLE
- Page 1 Desk Assembly/Instruction Manual [Important Document] Thank you for purchasing an Okamura Study Desk. Carefully read and understand the contents of this Assembly/Instruction Manual to ensure proper assembly and use. This denotes information about a situation that may result in Caution injury or physical damage if the caution is ignored or the product is used improperly.
-
Page 2: Assembly Precautions
Warning Observe the following precautions for power outlets. Observe the following precautions for electric lights. Failure to do so may result in electric shock or fire. Failure to do so may result in electric shock or fire. If you notice any sparks or unusual smells, immediately turn off the switch and Do not use the power outlet with devices that consume excessive power. - Page 3 Parts list (Make sure to check the information below before you start assembling.) (The sticker is attached to the rear side.) Desktop Rear panel Side panel Extension top panel Lower shelf center separator Partition lower shelf × Desktop shelf Fixed lower shelf Connecting bolt Actual size ×...
-
Page 4: Mounting The Side Panels
Desk Assembly Procedure Mounting of Single-end Mounting the Rear Panel connection bolts to Side Panels and Fixed Lower Shelf Connecting bolt Side panel (40mm) Use the connecting bolts to Single-end connection bolt (24mm) join the rear panel and fixed lower shelf. Rear panel Use the connecting bolts to tighten the lower shelf... - Page 5 Mounting the Desktop (Compact type) The height of the desktop can be adjusted to 5 levels based on the height of the person using it. Adjust the height of the desktop by referring to “Height of Desktop” on page 8. If lighting will be mounted to the desktop, be sure to CAUTION mount the lighting mounting clamp to the desktop unit...
- Page 6 Mounting the Desktop (Extension type) The height of the desktop can be adjusted to 5 levels based on the height of the person using it. Adjust the height of the desktop by referring to “Height of Desktop” on page 8. If lighting will be mounted to the desktop, be sure to CAUTION mount the lighting mounting clamp to the desktop...
- Page 7 Desktop Shelf Installation and Usage Procedures Single-end connection bolt Installing on the Desktop Screw-type connector This can be set at any height for the desktop. (this one is used) <For Desktop Compact Desk> Screw in the single-end connection bolts to one Single-end location each on the right and left sides at the connection bolt...
- Page 8 (orient to outer side) Height of the Desk Desktop Shelf holder wire mounting locations Okamura Pierna series desks are designed in accordance with JIS school furniture standards. The desktop can be adjusted to five different heights suitable for users between JIS size 2 (120 cm height) and JIS size 6 (180 cm height).
- Page 9 Lighting Mounting Procedure *The mounting procedure for the lighting is different from other Pierna series desks, and so be sure that you fully understand the information Power outlet below to ensure correct assembly. <Mounting Procedure to Desktop Shelf> Outlet The lighting equipment can be mounted to either the right or left sides of the desktop shelf.
- Page 10 Okamura Corporation International Sales and Marketing Div 9F Kokusai-Shi Akasaka Bldg. East, 2-14-27 Akasaka Minato-ku, Tokyo 107-0052 Japan http://www.okamura.co.jp...
