Multipurpose Rack
８ ６ ５SAR
Assembly Instruction Manual
Special Edition
Thank you very much for purchasing the
OKAMURA Study DESK. Before using this
product, carefully read this Assembly
Instruction Manual in order to fully under-
stand and correctly assemble the product.
Movement in the front-back direction may result in
CAUTION
turnover, causing injury. Move in the lateral direction.

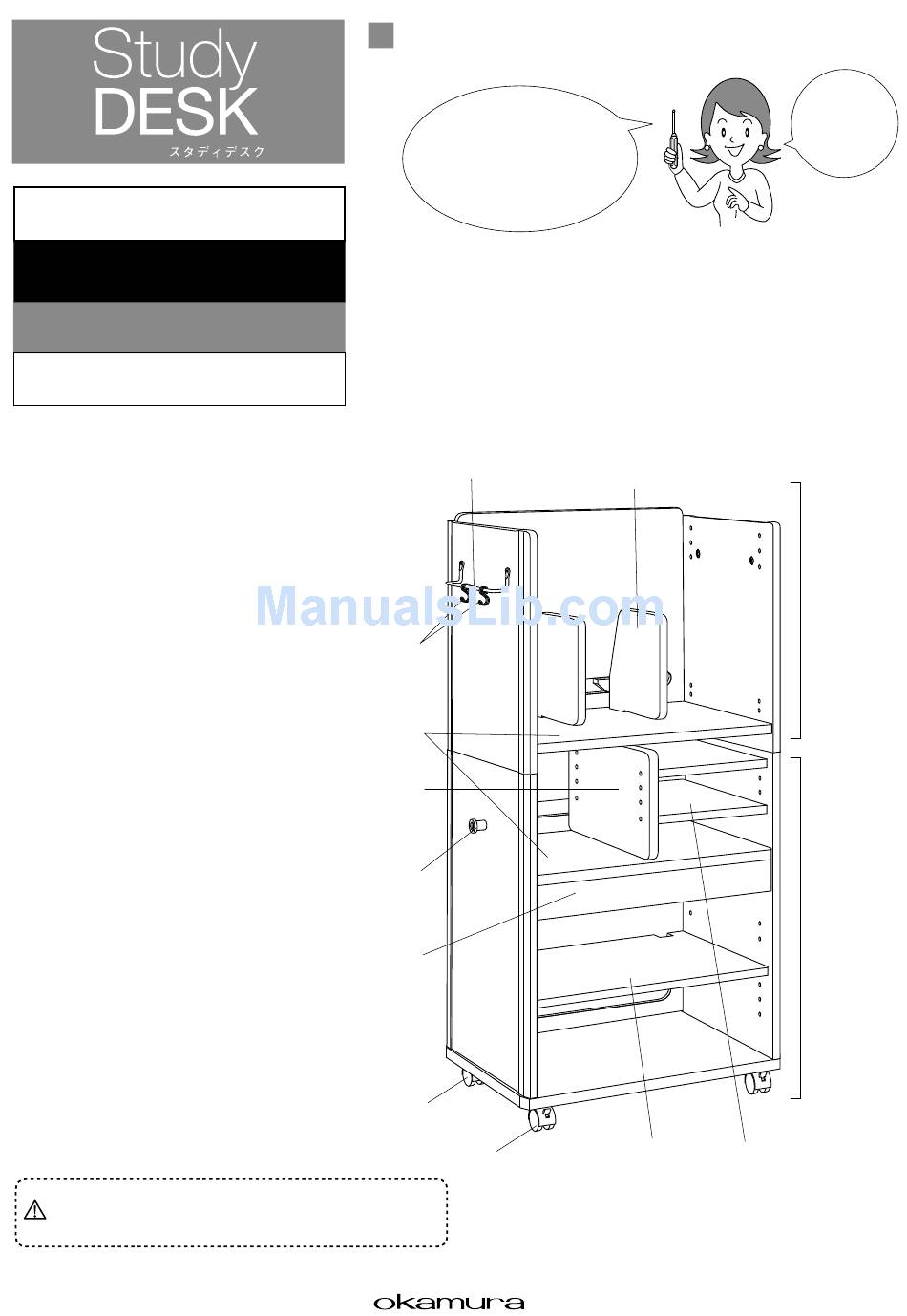

Assembly Final Drawing
screwdriver is required for
assembly. Please have one available.
* Do not use an electric screwdriver
because it may damage the
Hook hanger
S-shape hook
Fixed shelf
Center divider
T-shape hook
Drawer
Caster
(without stopper)
Caster (with stopper)
A cross slot
product.
Movable divider
Movable shelf
plate (large)
(Name of each part)
Two
persons should
assemble this
product.
Upper unit
Lower unit
Movable shelf
plate (small)
Advertisement
Table of Contents
Related Manuals for Okamura 865SAR
Summary of Contents for Okamura 865SAR
- Page 1 ８ ６ ５SAR Assembly Instruction Manual Special Edition Thank you very much for purchasing the OKAMURA Study DESK. Before using this Hook hanger Movable divider product, carefully read this Assembly Instruction Manual in order to fully under- stand and correctly assemble the product.
- Page 2 Check before assembly. Locations of Caution Seals Warning label Product No. seal (Attached to the fixed (Attached to the bottom back side) shelf surface) (Do not remove the warning labels) Installation Location Reference Example for Movable Shelf Plate/Movable divider The movable shelf plate and movable divider can be installed in combination with the center divider as shown in the following table. Determine a completion state, and then carry out assembly work.
- Page 3 Details of Parts (make sure to check before assembly) Single-end Shelf plate Connecting bolt Both-side connecting Actual size × × × × connection bolt receiving dowel bolt (34mm/34mm) (M6 × 35mm) (24mm) Connecting nut Hook hanger Connecting bolt Actual size S-shape hook T-shape hook ×...
- Page 4 Installation of connecting bolts ❷ Screw the single-end connection bolt of ❶ Screw the single-end connection into the side panel of the upper unit to install. (3 locations on bolt of into the rear panel of Rear panel the right and left sides) the upper unit to install.
- Page 5 Connection of upper Screw-type and lower units connector ❶ Screw the both-side connecting bolts of to connect the Securely tighten. upper unit and lower unit. (4 locations) （ ） * The upper unit can be installed backwards. When installing the upper unit on the side of the desk for use, install it backwards.
- Page 6 Installation of movable shelf plate (large) ❶ Screw the shelf plate receiving dowels of ❷ Place the movable shelf plate (large) on into the posi- tions of the desired dowel holes remaining on the upper unit and lower unit to install. (4 locations) Movable shelf plate (large) * The movable shelf plate (large) can also be installed to the upper unit.
- Page 7 To Use Safely This indicates that improper handling due to disregard of this warning may result in injury or CAUTION CAUTION damage to property. CAUTION Cautions for assembly After assembling, fully tighten the product on a flat Fully read the instruction manual before assembly, securely tighten the bolts surface, and make sure that each part is securely with a screwdriver, and use all of the assembly parts without leaving any installed.
- Page 8 Okamura Corporation International Sales and Marketing Division Address: 2-14-27 Akasaka, Minato-ku, Tokyo 107-0052 Japan Phone : +81-3-5561-4085 : +81-3-5561-4086 Website: http://www.okamura.co.jp/ M1706-04...
