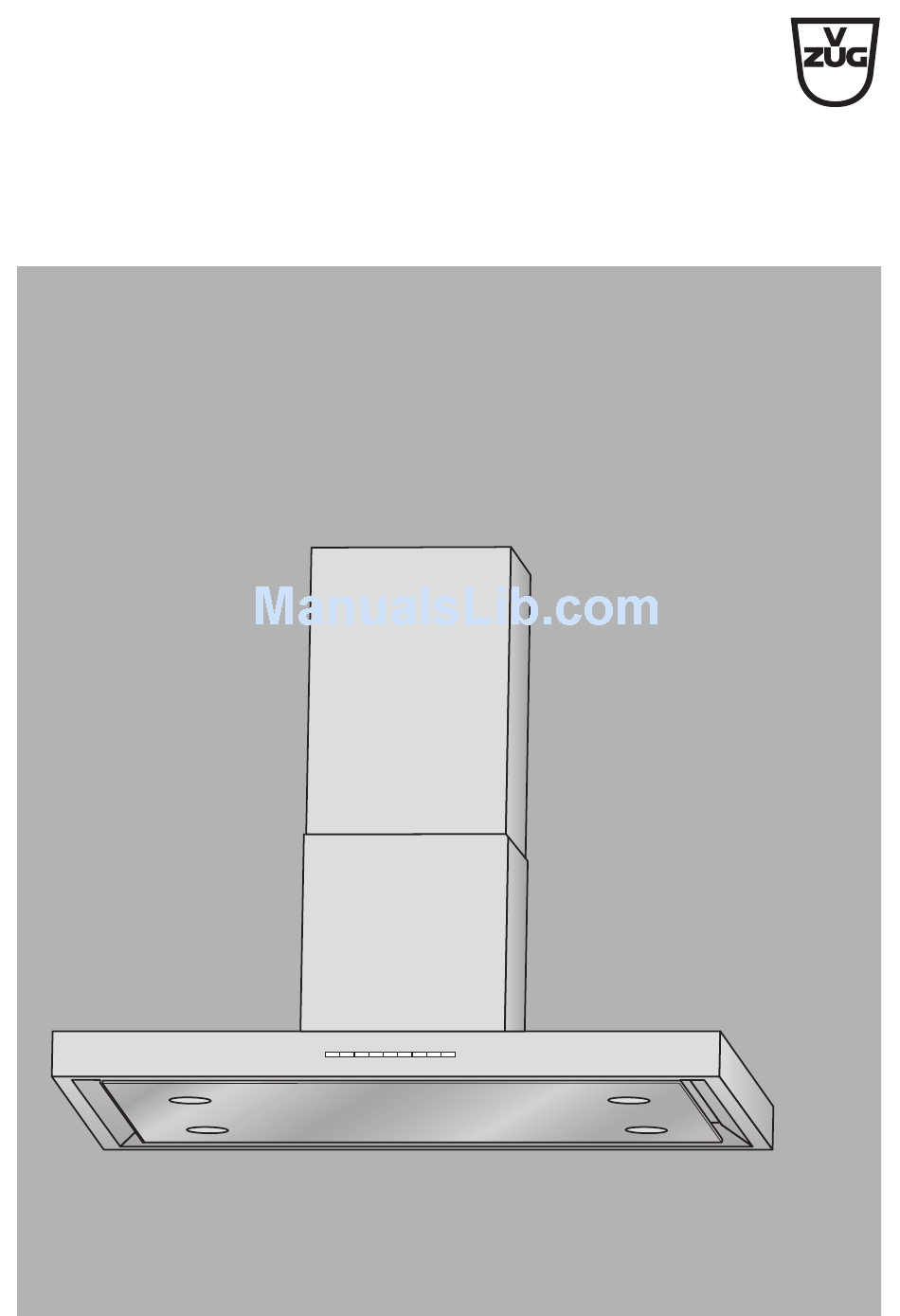

V-ZUG Ltd
Range hood
DW-M9 / DW-M12 / DI-M10 / DI-M12
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW-M9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG DW-M9

Summary of Contents for V-ZUG DW-M9

  • Page 1 V-ZUG Ltd Range hood DW-M9 / DW-M12 / DI-M10 / DI-M12 Operating instructions...
  • Page 2 The model number corresponds to the first three digits on the identification plate. These operating instructions apply to the models: Type Model no. Type Model no. DW-M9 DI-M10 DW-M12 DI-M12 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2009...

  • Page 3: Table Of Contents

    Contents Safety precautions Before using for the first time ......Correct use ........Children in the home .
  • Page 4 … Contents Accessories and spare parts Technical data Disposal Notes Index Repair service Quick instructions...

  • Page 5: Safety Precautions

    Safety precautions The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please there- fore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless supervised or unless they have been given instruction...

  • Page 6: Correct Use

    … Safety precautions Correct use The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, should only be carried out by the manufacturer, its Customer Services or similarly qualified persons.

  • Page 7: Note On Use

    … Safety precautions Note on use If the appliance is visibly damaged, do not use it. Contact our Customer Services. If the appliance is not operating properly, disconnect it from the electricity supply immediately. CAUTION: Accessible parts may become hot when used with cooking appliances.
  • Page 8 … Safety precautions If another appliance – fuelled by gas or other fuels – is being used at the same time, ensure that there is a sufficient supply of fresh air. This does not apply to air recirculation units. With the simultaneous operation of firing (e.g. wood, gas, oil or coal-fired heating systems), safe operation is only possible providing a room nega- tive pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the ap- pliance.

  • Page 9: Appliance Description

    Appliance description The appliance is designed to extract cooking fumes and smells from the cooking area. This particular model can be used to extract or to recirculate air. Extraction model The cooking fumes are extracted by a ventilator. The metal grease filters clean the extracted air, which is passed through a connecting pipe fitted with an integrated non-return valve and through the air duct to the outside.

  • Page 10: Fitted With

    … Appliance description Fitted with 1 extraction fan Illumination 1 grease filter 2 activated charcoal filters The extraction fan has 4 power levels. = Low, = Medium, = High and = Intensive level. Power levels 1–3 can be used for longer periods of operation. The intensive level is for shorter bursts of intensive extraction of the cook- ing fumes and smells, e.

  • Page 11: Construction

    … Appliance description Construction Operating and display elements Metal grease filter Halogen light Hood Activated charcoal filter (for recirculating air only) Glass panel (fold-away)

  • Page 12: Operating And Display Elements

    … Appliance description Operating and display elements Power level 1 on / off Power level 2 on / off Power level 3 on / off Intensive level on / off After-running time Illumination on / off / dimmed Grease filter saturation indicator Depending on the model and design, the specification of the appli- ance may differ from the standard specification described herein.

  • Page 13: Use

    Switching on Press the buttons to switch the appli- ance on. Select a different power level by pressing the corresponding button. – The control light shows which power level is currently being used We recommend switching the appliance on several minutes before cooking and allowing it to run for at least another 5 minutes after you have finished cooking.

  • Page 14: Illumination

    … Use Illumination Press the button to switch the illumination on or off. Hold the depressed to dim the light. The illumination can be used on its own. Grease filter saturation indicator The display illuminates after 15 operating hours or at the latest 14 days after first being put into operation.

  • Page 15: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool etc. to clean the appliance as they can damage the surface. Cleaning the outside / inside Clean the outside using a slightly damp cloth –...

  • Page 16: Cleaning The Grease Filter

    … Care and maintenance Cleaning the grease filter The accumulation of grease in the grease filter can present a fire hazard. The grease filter should be cleaned weekly with normal use, or once every two weeks at a minimum. If properly cared for, a grease filter should provide unlimited years of service.

  • Page 17: Replacing The Activated Charcoal Filter

    … Care and maintenance Replacing the activated charcoal filter Activated charcoal filters are only used in the recirculation model. Activated charcoal filters become less effective with use. With normal use, they have to be replaced at least every four months. They cannot be washed or regenerated.

  • Page 18: Replacing The Halogen Light

    … Care and maintenance Replacing the halogen light Remove screw fuse for appliance or switch off circuit breaker. Halogen lights get hot during operation! Allow to cool down first. Fold down the glass panel. Using a small screw driver, carefully remove the ring.

  • Page 19: Trouble-Shooting

    Trouble-shooting What to do if … … the illumination is not working Possible cause Solution Fuse or circuit breaker for Change the fuse. electrical installations in Reset the circuit breaker. the home is faulty. Interruption in the power Check the power supply. supply.

  • Page 20: Accessories And Spare Parts

    Accessories and spare parts Please give model number and exact description when ordering parts. Halogen light Metal grease filter Activated charcoal filter The halogen light is also available from specialist retailers.

  • Page 21: Technical Data

    Technical data Electrical connection See identification plate Remove metal grease filter. – The identification plate is located on the inside of the appliance.

  • Page 22: Disposal

    Disposal Packaging All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety Disable the appliance to prevent accidents caused by improper use,...

  • Page 23: Notes

    Notes...
  • Page 24 … Notes...

  • Page 25: Index

    Index Accessories........20 Halogen light ........ 11 Activated charcoal filter ..9, 11 Replacing........18 Replacing ........17 After-running time......13 Appliance description ....9 Identification plate ....... 21 Illumination Switch on / off ......14 Care ..........15 Children in the home..... 6 Cleaning.........
  • Page 26 … Index Safety ..........22 Technical data ......21 Safety precautions Trouble-shooting......19 Before using for the first time . 5 Type ..........2 Children in the home ....6 Correct use......... 6 Note on use........ 7 Use..........13 Saturation indicator ..... 14 Spare parts ........

  • Page 27: Repair Service

    Repair service The 'Trouble-shooting' section will help you to carry out small repairs yourself, saving you the time and trouble of calling out a service engineer and the cost that goes along with it. Whether you contact us about a malfunction or an order, please always state the serial number (FN) and the model type of your appliance.

  • Page 28: Quick Instructions

    Power level 1 on / off Power level 2 on / off Power level 3 on / off Intensive level on / off After-running time Illumination on / off / dimmed Grease filter saturation indicator V-ZUG Ltd Industriestrasse 66, CH-6301 Zug vzug@vzug.ch, www.vzug.com J787.352-3...
