Assembly instructions
Sport-Thieme

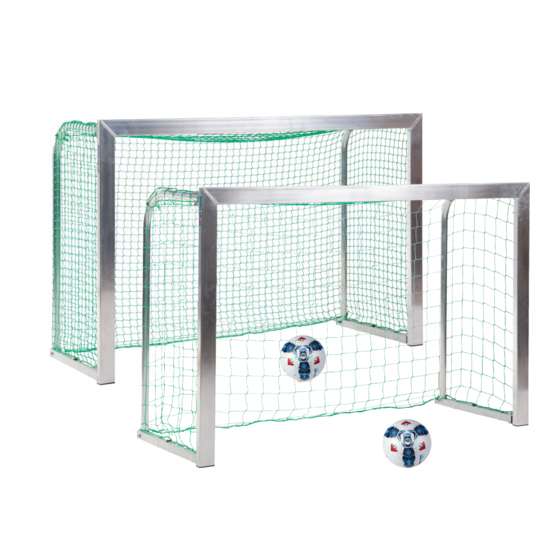

Goal with Foldable Net Brackets
Mini Football
®
D-38367 Grasleben · Germany
sport-thieme.com · info @sport-thieme.com
Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921
Art.-Nr.: 115 2568
115 2584
Art.-Nr.: 115 2584
Art.-Nr.: 115 2568
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sport-thieme 115 2584
Summary of Contents for Sport-thieme 115 2584
-
Page 1: Assembly Instructions

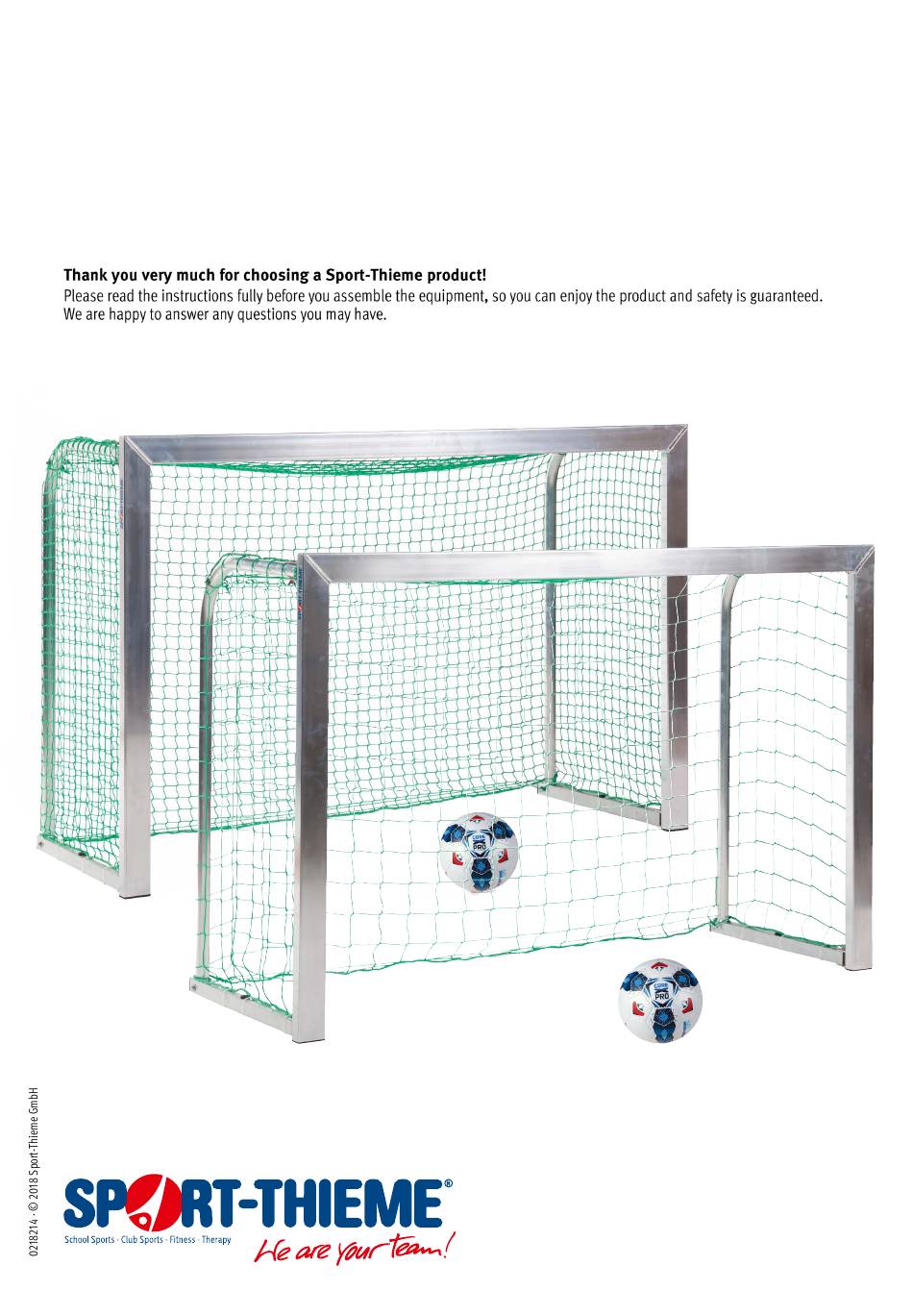

Art.-Nr.: 115 2568 115 2584 Sport-Thieme Mini Football ® Goal with Foldable Net Brackets Art.-Nr.: 115 2584 Art.-Nr.: 115 2568 D-38367 Grasleben · Germany sport-thieme.com · info @sport-thieme.com Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921... -
Page 2: Scope Of Delivery
Assembly instructions for Art.-Nr. 112 2568/115 2584 1. Scope of delivery Please check the following content before assembly. Content: 1x bar/upright construction 2x net hoop 1x accessories and net Accessories: 24x safety system net holder 4x self-locking nut DIN 985, M 8... - Page 3 Assembly instructions for Art.-Nr. 112 2568/115 2584 2. Assembly of the goal We recommend to mount the goal on the grass or on a suitable surface to avoid damages of the profiles. a) Lay bar/upright construction on the ground with guide rail showing upwards.
- Page 4 Assembly instructions for Art.-Nr. 112 2568/115 2584 g) Beat 1 plastic cap 40 x 40 each into the net hoop ends (back of square tube). h) Press net hoop to the outside. Stick from the top hexagonal screw DIN 933, M 8 x 60 through the 2nd borehole of the upper hinge and the hoop.
- Page 5 Assembly instructions for Art.-Nr. 112 2568/115 2584 3. Assembly of the net a) At first fix net holders at the net rope. Bend open net holders a little and press rope into the holders. We recommend the follo- wing distribution of net holders:...
- Page 6 Assembly instructions for Art.-Nr. 112 2568/115 2584 6. Maintenance, safety and storage instructions Check screwed fastenings regularly and change damaged and wearing parts if need be. Notice: Due to our continuous quality check of products and equipment technical modifications are possible.
