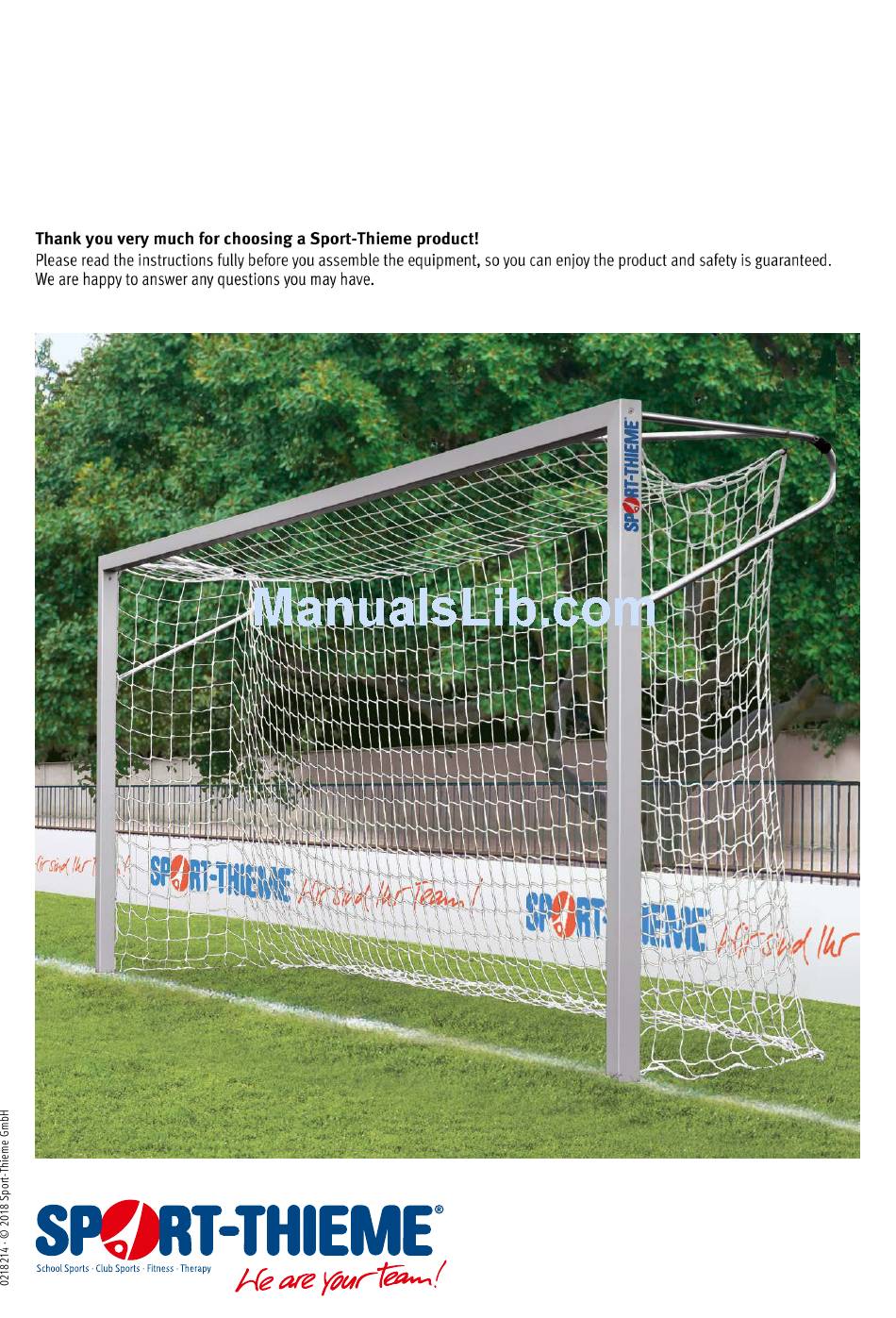

Page 1: Assembly Instructions
Assembly instructions Art.-Nr.: 113 5985 Sport-Thieme youth football goal 5x2 m, ® square tubing, socketed D-38367 Grasleben · Germany sport-thieme.com · info @sport-thieme.com Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921... -
Page 2: Scope Of Delivery
Assembly instructions for Art.-Nr. 113 5985 1. Scope of delivery Please check the following content before assembly. The following indicated quantities refer to 1 goal. In case of a delivery in pairs we double the amount correspondingly. 2. Assembly drawing... - Page 3 Assembly instructions for Art.-Nr. 113 5985 Inhalt: 1x Crossbar, profile 80 x 80 mm 2x Upright, profile 80 x 80 mm 2x Net hoop 2x Net hoop brace 2x Steel corner joint 8x Steel plate for corner joint 2x Exterior steel angle...
- Page 4 Assembly instructions for Art.-Nr. 113 5985 3. Assembly of the goal The following tools are necessary: - 1 wrench/ring spanner 13 mm - 1 wrench/ring spanner 10 mm - 1 thin screw driver (for net hook fixing, if necessary) a) Assembly of crossbar/uprights: Lay crossbar and uprights on the ground, groove facing upwards and mitres joining.
- Page 5 Assembly instructions for Art.-Nr. 113 5985 c) Assembly of net hoops: Set net hoops on the corners of crossbar/upright construction. Adjust welded fixing plates with grooves pointing to the inside and to the bottom and holes at steel angles are congruent. Consider left and right side (see 1st and 2nd picture bottom left). Place welded flat plate on the groove of the upright and push already mounted nut below the hole of the flat plate (see 3rd bottom pic- ture).
- Page 6 Assembly instructions for Art.-Nr. 113 5985 d) Assembly of net hoop braces: Fix braces (see 1st picture bottom left) at crossbar and net hoops. At first place flat plates on the crossbar’s groove (see 2nd pic- ture bottom right). Push nuts already mounted in point a) below the holes of the flat brace plates and fix each brace with 1 hexagon socket cylinder screw DIN 912, M6 x 20mm and 1 washer DIN 9021, Ø...
- Page 7 Assembly instructions for Art.-Nr. 113 5985 4. Insertion of ground sockets: Stick ground sockets on the uprights and make sure that they do no slip. Then erect goal and set it in the foundation dit- ches. In order to guarantee running of surface water into the ground sockets stick a tube in the ground under the holes of the ground sockets.
- Page 8 Assembly instructions for Art.-Nr. 113 5985 5. Assembly of the net a) T he net is not part of the delivery. Fix net holders at the net rope. Bend open net holders a little and press rope into the holders.
