Operating/assembly instructions
Universal posts
Prod. code 115 6603
Operating/assembly instructions for universal posts
Thank you very much for choosing a
that you can enjoy this product, so here is some important advice for your safety as
well as for the use and maintenance of the equipment. Please read these
instructions fully before you assemble and use the equipment:
Included:
Pos. Description
1 2 x universal post
2 6 x slider (3 each)

1. General

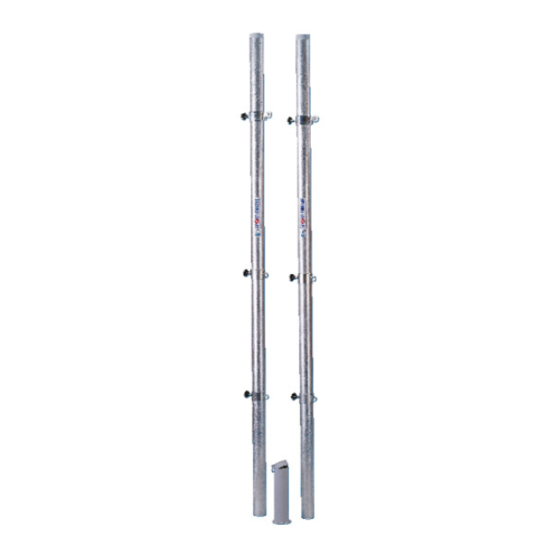

The universal posts are used in ground sockets. They are used with the ground
sockets in sports halls.
The ground sockets are fitted in the floor slab (see ill. 6)
The height of the net can be freely adjusted for volleyball, tennis, fistball etc. on the
universal posts. The posts are 3.00 m long and made from galvanised steel tubing ø
83 mm.
Each post comes with three adjustable sliders. Two sliders have a hook for net
tensioning and the third one has a guide pulley. The cords and sliders are
arranged as in ill. 2.
product. We want to make sure
Page 1 of 3
Ill. 1: Universal posts with
three sliders each
