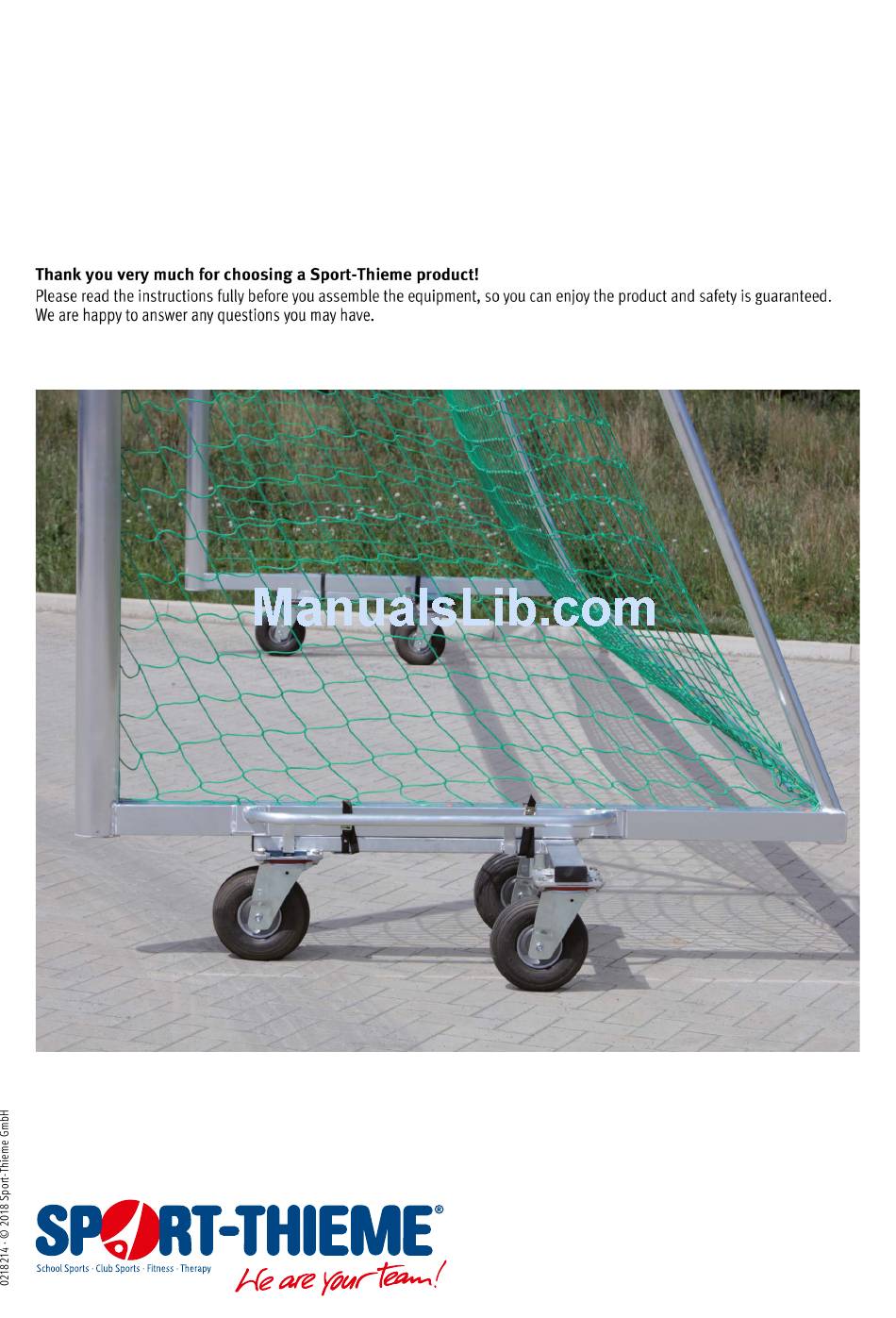

Page 1: Assembly Instructions
Assembly instructions Art.-Nr.: 230 7204 Trolley for Free-Standing Goals D-38367 Grasleben · Germany sport-thieme.com · info @sport-thieme.com Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921... -
Page 2: Scope Of Delivery
Assembly instructions for Art.-Nr. 230 7204 1. Scope of delivery Please check the following content before assembly. Contents: 1x Aluminium basic frame 3x Guiding roll 1x Accessories 1x Assembly instruction Accessories: 12x Hexagon socket screw M10 x 25 mm DIN 933 12x Washer Ø... - Page 3 Assembly instructions for Art.-Nr. 230 7204 2. Assembly The following tools are necessary: - 2 wrench/ring spanners 17 mm - hammer/mallet a) Fixing of caps: Use a hammer/mallet to insert caps in the 3 lateral openings provided in the basic frame. b) Fixing of guiding rolls: Place guiding rolls at welded aluminium plates of the frame.
- Page 4 Lift the goal and push the trolley under one ground bar between the lateral guiding rails. The balance point has to be in the middle of the trolley. Fix the bar of the goal with two belt straps by pulling them through the welded plates from the bottom of the frame.
