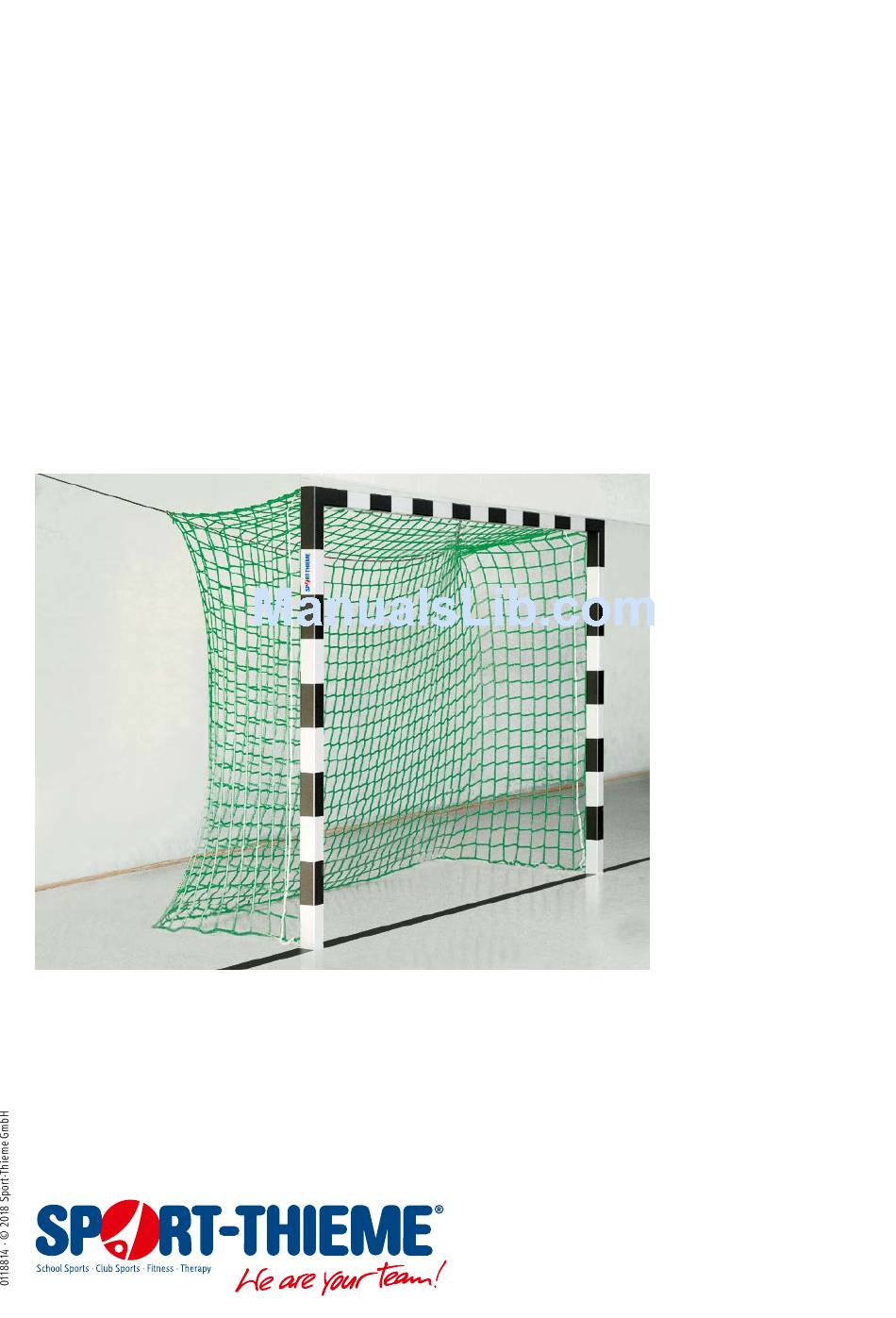

Assembly instruction
Sport-Thieme

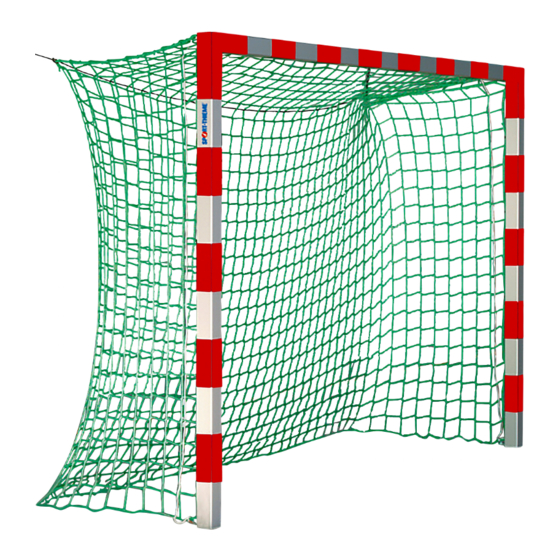

Handball Goal
3x2 m, without net brackets, in ground sockets
Thanks for choosing Sport-Thieme equipment!
In order to enjoy this product please note the following instructions for safety, use and maintenance before assembly.
®
D-38367 Grasleben · Germany
sport-thieme.com · info @sport-thieme.com
Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921
Cat.-no.: 113 6526
Cat.-no. 113 6526:
Sport-Thieme®
Handball Goal, 3x2 m,
without net brackets, in
ground sockets
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sport-thieme 113 6526
Summary of Contents for Sport-thieme 113 6526
- Page 1 Sport-Thieme ® Handball Goal 3x2 m, without net brackets, in ground sockets Thanks for choosing Sport-Thieme equipment! In order to enjoy this product please note the following instructions for safety, use and maintenance before assembly. Cat.-no. 113 6526: Sport-Thieme® Handball Goal, 3x2 m,...
- Page 2 Assembly instruction Cat.-no. 113 6526 1. Scope of delivery Please check the following content before assembly. The following indicated quantities refer to 1 Handball goal. In case of a delivery in pairs we double the amount correspondingly. Pictured colours of profiles are only samples and may differ from delivered pro- files.
- Page 3 Assembly instruction Cat.-no. 113 6526 2. Assembly of the goal The following tools are necessary: 2 wrench/ring spanners 13 mm 1 mallet/hammer 1 drill Ø 1,5 mm 1 thin screw driver (for net hook fixing if necessary) a) Assembly of crossbar/uprights: Lay crossbar and uprights on the ground, groove facing upwards and mitres joining. Stick alu- minium cast corner joint into the end of the crossbar (see 2nd picture bottom right).
- Page 4 Assembly instruction Cat.-no. 113 6526 Then join uprights at the external corner. Adjust crossbar and uprights. Screw 2 hexagon socket screws DIN 7991, M8 x 20mm in the external corner (see picture bottom right) and tighten all screws. join and adjust...
- Page 5 Assembly instruction Cat.-no. 113 6526 3. Assembly of the net a) The net is not part of the delivery. Fix net holders at the net rope. Bend open net holders a little and press rope into the holders. We recommend the following...
- Page 6 Assembly instruction Cat.-no. 113 6526 5. Maintenance, safety and storage instructions This goal is only constructed for Handball and not for other purposes. Check all screwed fastenings before use and repeat it from time to time. It has to be protected against over- turning at any time.
