Sport-thieme SunVolley Plus Assembly Instructions

SunVolley® Plus
Beach volleyball unit
Thank you very much for choosing a Sport-Thieme product!
Please read the instructions fully before you assemble the equipment so you can enjoy the product and safety is
guaranteed.
We are happy to respond to your questions and requests.

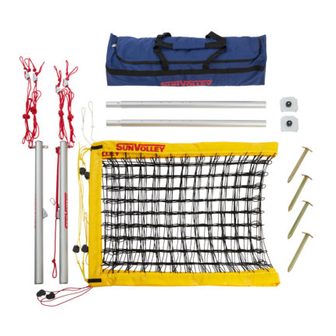

Included:
1 bag
1 net
2 lower post sections (Ø 5 cm) with 5 holes for height
adjustment
2 middle post sections (Ø 4.5 cm)
1 upper post section (Ø 5 cm) with pulley

Assembly instructions

The system is suitable for use on grass. On sand, sand anchors should be used instead of pegs. A special sand
kit is available from SunVolley®. Whilst it is of course easier and faster to set up the outdoor volleyball system
with 2 or more people, it can also be assembled by one person only.
Marking the court (9 m x 18 m)
1. Mark out the volleyball court with the border marking. Use the corresponding pegs.

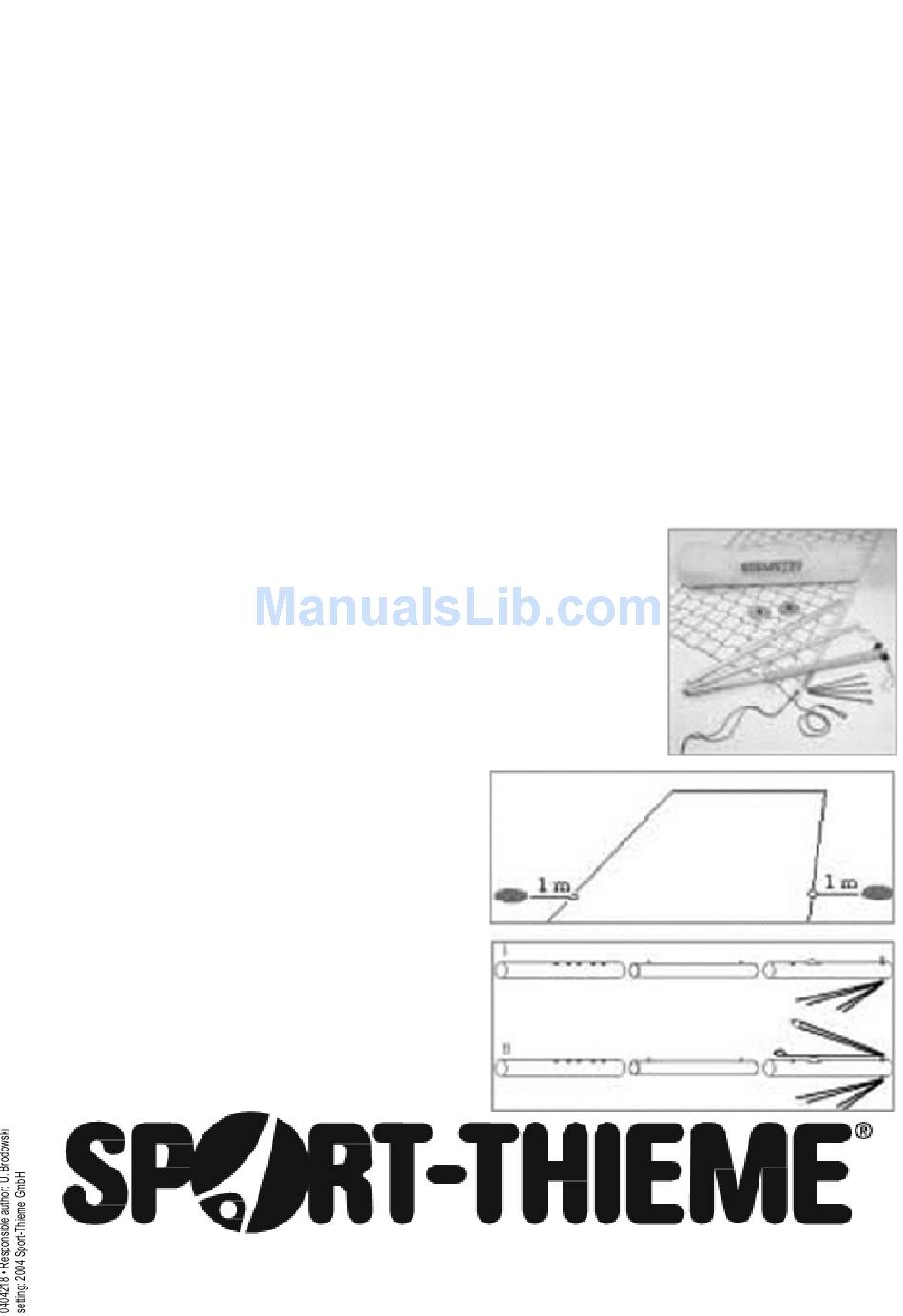

Placing the posts
Take one section of the post – no matter which one, they are all 1 m
2.
long – and lay it in the middle of a court's long side at a right angle to the
outside. At the end of the post section, push a ground plate into the
ground. Do the same with the second plate on the other side of the court.
3. Put the post sections together as shown. Set the desired height on the
lower post sections. Use the maximum height for men.
Sport-Thieme GmbH · 38367 Grasleben / Germany · www.sport-thieme.com
Tel. +49 (0) 5357 57 181 81 · Fax +49 (0) 5349 57 181 90 · info@sport-thieme.com
Assembly instructions
1 upper post section (Ø 5 cm) without pulley
2 ground plate for posts
4 pegs for posts
1 border marking (only with complete system)
7 pegs for border marking (6 +1 spare) (only with complete system)
• If necessary, mallet (preferably rubber or plastic), can be put in the
bag
for prod. code 11 117 8500
