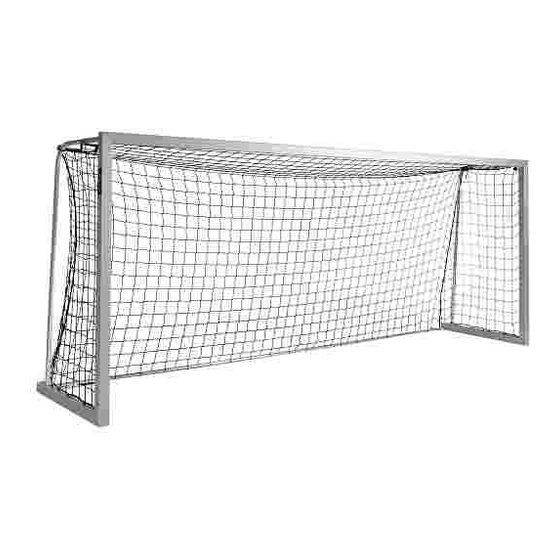

Youth football goal, 3x2/5x2 m, square tubing. street soccer goal

Hide thumbs

page of 12

/ 12
Bookmarks

Quick Links

Download this manual

Assembly instructions

Sport-Thieme

3x2/5x2 m, square tubing

Sport-Thieme

youth football goal,

Street Soccer goal

D-38367 Grasleben · Germany

sport-thieme.com · info @sport-thieme.com

Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921

Art.-Nr.: 113 5914

113 5927

113 5419

257 7308

Need help?

Do you have a question about the 113 5914 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sport-thieme 113 5914

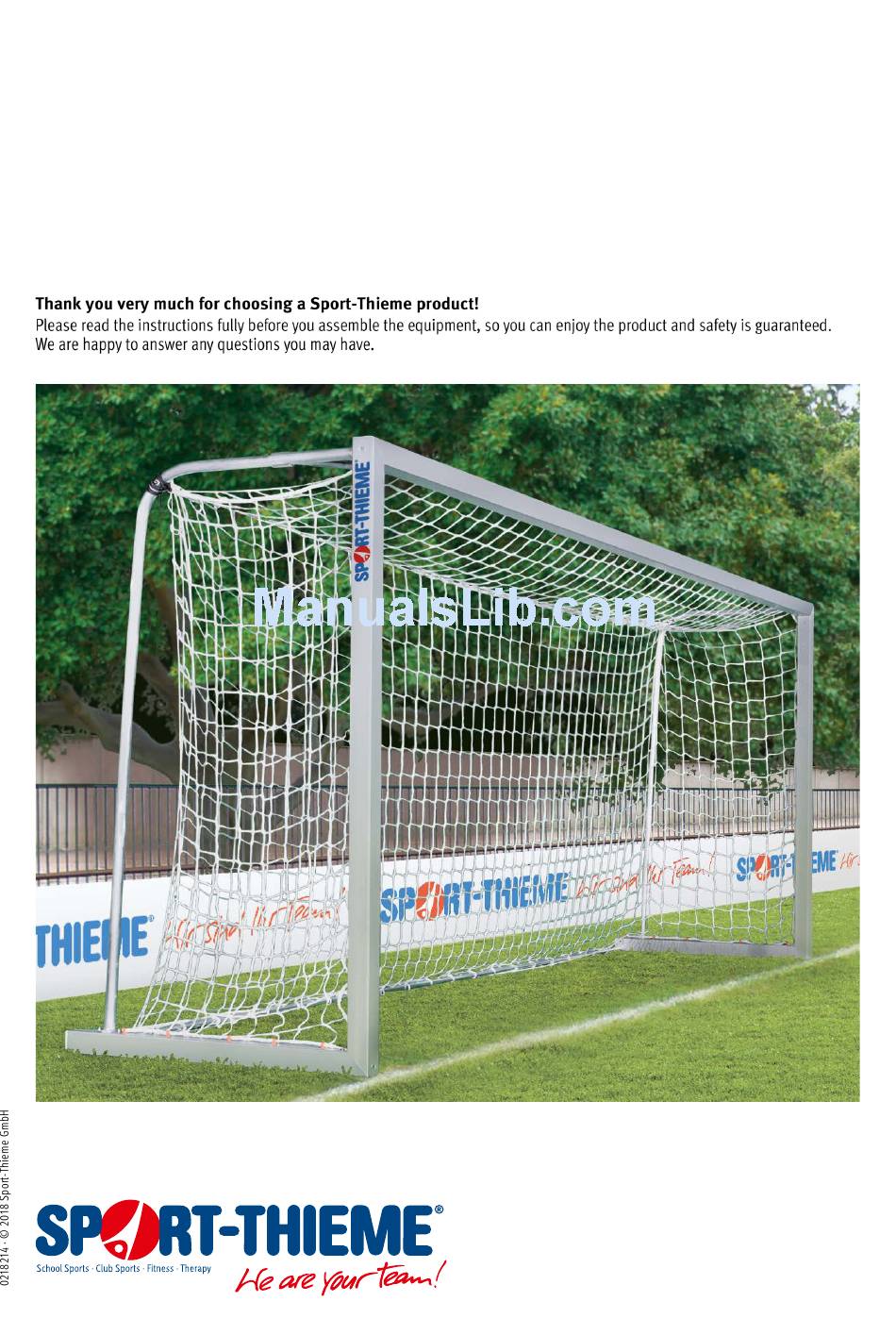

Page 1: Assembly Instructions
Assembly instructions Art.-Nr.: 113 5914 113 5927 113 5419 257 7308 Sport-Thieme youth football goal, ® 3x2/5x2 m, square tubing Sport-Thieme Street Soccer goal ® D-38367 Grasleben · Germany sport-thieme.com · info @sport-thieme.com Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921...
Page 2: Scope Of Delivery
Assembly instructions for Art.-Nr. 113 5914/1135927/113 5419/257 7308 1. Scope of delivery Please check the following content before assembly. The following indicated quantities refer to 1 goal. In case of a delivery in pairs we double the amount correspondingly. You can choose between two different ground tubes. These instructions apply to both executions (for diffe- rences see points 8.1 and 8.2).
Page 3 Assembly instructions for Art.-Nr. 113 5914/1135927/113 5419/257 7308 3.1 Total content for cat. - no.: 1135914/1135419/2577308 - goal with round ground tube: 1x Crossbar, profile 80 x 80 mm 2x Upright, profile 80 x 80 mm 2x Ground bar, profile 80 x 80 mm, with holes for ground fixing, Ø 25 mm...
Page 4 Assembly instructions for Art.-Nr. 113 5914/1135927/113 5419/257 7308 3.2. Total content for cat. - no.: 1135927 - goal with rectangular ground tube: 1x Crossbar, profile 80 x 80 mm 2x Upright, profile 80 x 80 mm 2x Ground bar, profile 80 x 80 mm, with holes for ground fixing, Ø 25 mm...
Page 5 Assembly instructions for Art.-Nr. 113 5914/1135927/113 5419/257 7308 4. Preparation for assembly: We recommend to mount the goal on the grass or on a suitable surface to avoid damages of the profiles! The following tools are necessary: - 1 wrench/ring spanner 13 mm...
Page 6 Assembly instructions for Art.-Nr. 113 5914/1135927/113 5419/257 7308 Lay uprights on the ground with groove facing upwards. Stick ground bars with mounted angles in uprights so that mitres are nearly joining (see picture bottom left). Adjust holes of uprights and connection angles. Screw through holes in the internal corner 2 safety hexagon screws M8 x 16, DIN 933 into the angles (see picture bottom right).
Page 7 Assembly instructions for Art.-Nr. 113 5914/1135927/113 5419/257 7308 6. Assembly of corner crossbar/uprights: Lay crossbar and uprights together with ground bar on the ground, groove facing upwards and mitres joining at crossbar and upright. Push at each crossbar’s end 2 nuts 20mm, M6 into the groove and 1 nut 20 mm, M8 at the mitre of each upright (see pic- ture bottom left).
Page 8 Assembly instructions for Art.-Nr. 113 5914/1135927/113 5419/257 7308 7. Assembly of net hoops: Set net hoops on the corners of crossbar/upright construction (consider left and right side of net hoops). Push already mounted nuts below the grooved plates of net hoops. Now stick 2 washers Ø 8.4 mm, DIN 9021 on 2 safety hexagon socket cylinder screws M6 x 20, DIN 912 and fix each net hoop in nuts of crossbar and upright (see pictures bottom left and right).
Page 9 Assembly instructions for Art.-Nr. 113 5914/1135927/113 5419/257 7308 8.1 Assembly of round ground tube and caps: Lay round ground tube between ground bars (see picture bottom left). Stick 2 washers Ø 8.4 mm DIN 933 on 2 hexagon screws M8 x 20, DIN 933 and screw them from the inside into the ground tube (see picture bottom right). Use the lower hole in the ground bar for fixing (see pictures bottom left and right).
Page 10 Assembly instructions for Art.-Nr. 113 5914/1135927/113 5419/257 7308 8.2 Assembly of rectangular ground tube and caps: At first push 2 nuts 20 mm, thread M8 into the groove of each ground bar. Then stick caps in the open ends of ground bars. Bore them with drill 1.5 mm through the holes provided in the ground bars.
Page 11 Assembly instructions for Art.-Nr. 113 5914/1135927/113 5419/257 7308 9. Assembly of net hoop braces: Set braces on crossbar and net hoops. Push the nuts provided in the crossbar below the holes of the braces and fix each brace at the nuts of crossbar with safety hexagon socket cylinder screws M6 x 20mm, DIN 912 and washers Ø 7.4 mm, DIN 9021 (see 1st picture bottom right).
Page 12 The ground bars/ground tube are equipped with holes of 25 mm which serve to fix the special anchoring system for the goal. Different systems for the ground fixing are available (see Sport-Thieme accessories). The anchoring system is not part of the delivery. The use of the goal without corresponding anchoring system is at your own risk! If you do not use any anchoring system close holes with the supplied caps for safety reasons.
