Model 91674

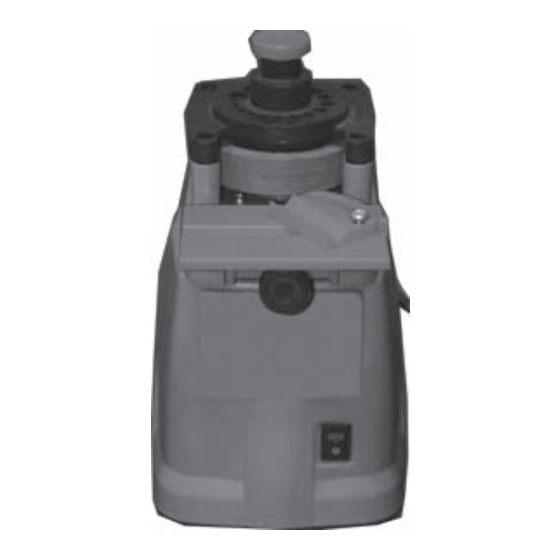

ASSEMBLY AND OPERATING INSTRUCTIONS
ELECTRIC DRILL BIT
AND CHISEL SHARPENER
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
Copyright
2004 by Harbor Freight Tools
®
. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
Advertisement
Related Manuals for Chicago Electric 91674
Summary of Contents for Chicago Electric 91674
- Page 1 Model 91674 ASSEMBLY AND OPERATING INSTRUCTIONS ELECTRIC DRILL BIT AND CHISEL SHARPENER ® 3491 Mission Oaks Blvd., Camarillo, CA 93011 Visit our Web site at: http://www.harborfreight.com Copyright 2004 by Harbor Freight Tools ® . All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools.
- Page 2 Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control. Protect others in the work area from debris such as chips and sparks. Provide barriers or shields as needed. SKU 91674 For technical questions, please call 1-800-444-3353. Page 2...
- Page 3 Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. SKU 91674 For technical questions, please call 1-800-444-3353. Page 3...
- Page 4 Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly main- tained tools. SKU 91674 For technical questions, please call 1-800-444-3353. Page 4...
- Page 5 Your tool must be plugged into an appropriate outlet, properly installed and grounded in accordance with all codes and ordinances. The plug and outlet should look like those in the following illustration. (See Figure A.) SKU 91674 For technical questions, please call 1-800-444-3353. Page 5...
- Page 6 FIGURE A SYMBOLOGY Double Insulated Canadian Standards Association Underwriters Laboratories, Inc. Volts Alternating Current Amperes No Load Revolutions xxxx/min. per Minute (RPM) SKU 91674 For technical questions, please call 1-800-444-3353. Page 6...
- Page 7 If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the required minimum cord size. (See Figure C.) SKU 91674 For technical questions, please call 1-800-444-3353. Page 7...
- Page 8 Do not use a power tool in areas near flammable chemicals, dusts, and vapors. Do not use this product in a damp or wet location. SKU 91674 For technical questions, please call 1-800-444-3353. Page 8...
- Page 9 WARNING! People with pacemakers should consult their physician(s) before using this product. Electromagnetic fields in close proximity to a heart pacemaker could cause interference to or failure of the pacemaker. SKU 91674 For technical questions, please call 1-800-444-3353. Page 9...
-
Page 10: Table Of Contents
FIGURE 2 Top View Adjusting Screw (26) Grinding Wheel (20) Adjusting Wheel (26) Number Angle Table (30) Chisel Position Working Table (27) Knob (28) Switch (5) Screw (31) Angle Fence (30) SKU 91674 For technical questions, please call 1-800-444-3353. Page 10... -
Page 11: Figure 3
If one edge is longer that the other and the point is not centered, sharpen the shorter side for a little more time. To prevent this from happening, sharpen both sides the same amount of time using equal pressure. SKU 91674 For technical questions, please call 1-800-444-3353. Page 11... -
Page 12: Knob
Wheel (20) raises. Turning counterclockwise lowers the Grinding Wheel (20). FIGURE 5 FIGURE 4 Note: To avoid kick-back, always grind to the left Working Table (27) Working Table Screw (31) Angle Fence (30) Knob (28) SKU 91674 For technical questions, please call 1-800-444-3353. Page 12... -
Page 13: Figure 6
Do not use damaged equipment. Wipe down the unit with a lint free cloth. Make sure the air vents are free of foreign matter at all times. SKU 91674 For technical questions, please call 1-800-444-3353. Page 13... - Page 14 BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. SKU 91674 For technical questions, please call 1-800-444-3353. Page 14...
